Differential Side Retainer Oil Seal: Replacement
- Drain differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Differential Gear Oil>REPLACEMENT .
- Remove the front drive shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>Front Drive Shaft>REMOVAL .

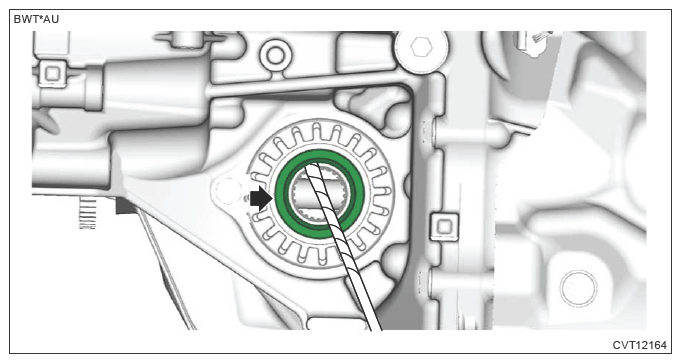

- Remove the differential side retainer oil seal using a flat tip screwdriver wrapped with protection tape, etc.
- Install the new differential side retainer oil seal using the ST.NOTE:
- Apply differential oil to the lip section of the differential side retainer oil seal.
- Since the differential side retainer oil seal has an identification mark (R or L), be careful not to mix up the RH and LH when installing.
Preparation tool:
ST: INSTALLER (499247400)
- Install the front drive shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>Front Drive Shaft>INSTALLATION .
- Fill differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Differential Gear Oil>REPLACEMENT .
