Power Rear Gate Touch Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL .

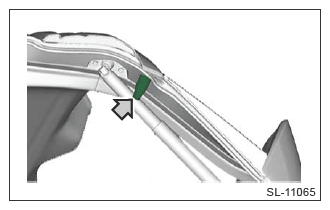

  3. Remove the stopper rubber rear gate.
    G13201770Courtesy of SUBARU OF AMERICA, INC.

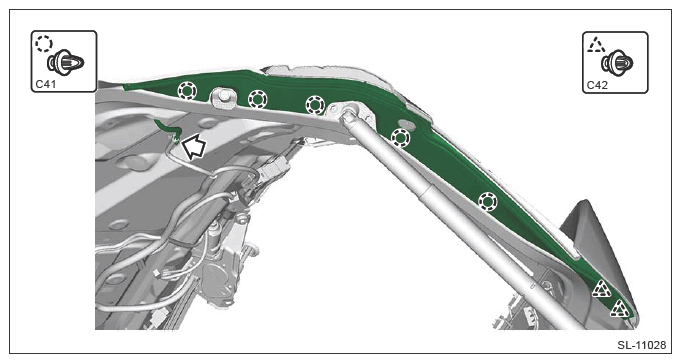

  4. Remove the power rear gate touch sensor.
    1. Disconnect the connector.
    2. Release the clips, and then remove the power rear gate touch sensor.
    G13201771Courtesy of SUBARU OF AMERICA, INC.
