Radiator Fan Control Module (Main)
WARNING: This page is about a different variant/trim than selected.

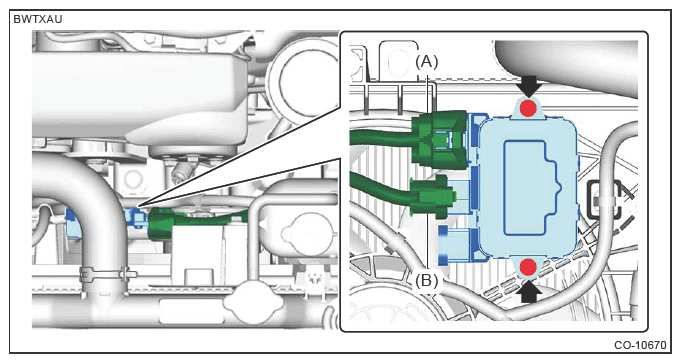

- Install the radiator fan control module (main), and connect the connector (A) and connector (B).
Tightening torque:
3.8 N.m (0.4 kgf-m, 2.8 ft-lb)
- Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
