Engine Cooling System

WARNING: This page is about a different variant/trim than selected.

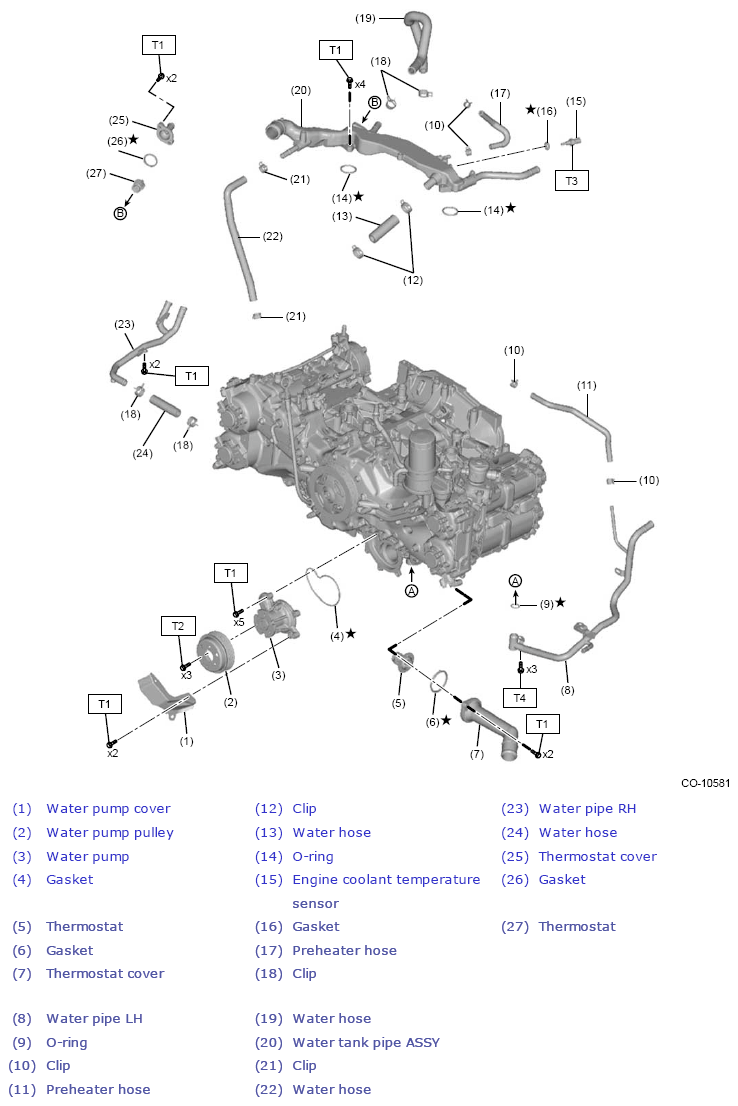

Fig 1: Engine Cooling System Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 14 (1.4, 10.3)

T3: 16 (1.6, 11.8)
