Sedan Model

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pad rear side. Refer to SEATS>Rear Seat>REMOVAL
  3. Remove the trunk trim panel side. Refer to EXTERIOR/INTERIOR TRIM>Trunk Room Trim>REMOVAL
  4. Remove the wire set rear seat backrest.

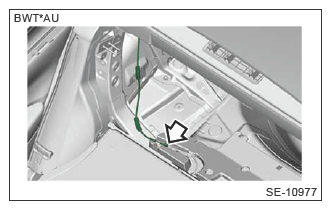

    1. Disconnect the wire.
      G13625678Courtesy of SUBARU OF AMERICA, INC.

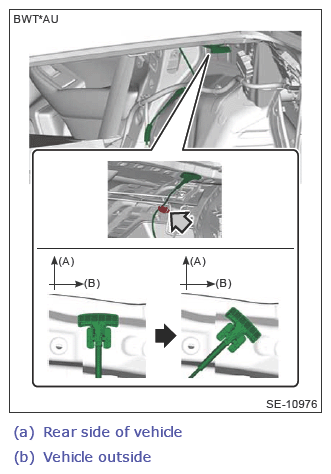

    2. Remove the clips and turn the wire set rear seat backrest by 45° as shown in the figure.
    3. Release the claws and remove the wire set rear seat backrest.
      G13625679Courtesy of SUBARU OF AMERICA, INC.
