OUTBACK model

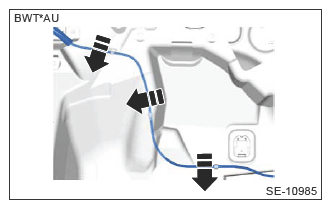

  1. Install the lever assembly rear backrest.
    G13625682Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Install the backrest lever assembly cable in the arrow direction and lock the cable clamp.
  2. Install the trim panel assembly apron. Refer to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>INSTALLATION>OUTBACK model .
  3. Install the pad rear side, Refer to SEATS>Rear Seat>INSTALLATION .
  4. Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
