Control Valve Body: Inspection
- Check each part for damage or dust.
- Check oil strainer for clogging.

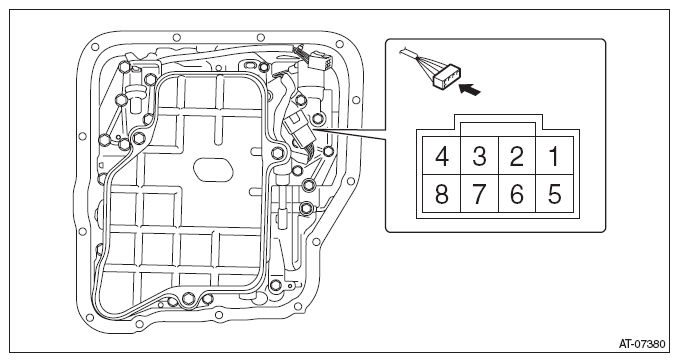

- Measure the resistance of each solenoid.NOTE: Measurement should be performed at a temperature of 20°C (68°F).
| Solenoid | Terminal No. | Standard (Ω) |
|---|---|---|
| Secondary solenoid | No. 1 - control valve body | Approx. 6.6 Ω |
| Lock-up duty solenoid | No. 2 - control valve body | Approx. 12 Ω |
| F & R solenoid | No. 3 - control valve body | Approx. 5.3 Ω |
| Lock-up ON/OFF solenoid | No. 5 - control valve body | Approx. 16 Ω |
| Primary DOWN solenoid | No. 6 - control valve body | Approx. 12 Ω |
| Primary UP solenoid | No. 7 - control valve body | Approx. 12 Ω |
| AWD solenoid | No. 8 - control valve body | Approx. 3.2 Ω |
