Drive Plate: Installation

WARNING: This page is about a different variant/trim than selected.

Temporarily install the drive plate and reinforcement drive plate.
Set the ST.

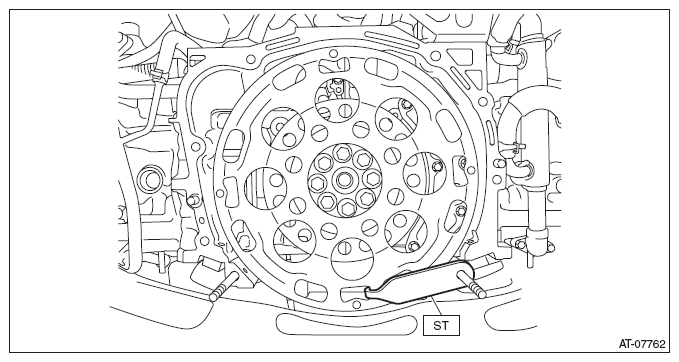

NOTE: Set the ST to the drive plate referring to the illustration.

ST 498497300 CRANKSHAFT STOPPER

Courtesy of SUBARU OF AMERICA, INC.
Tighten the drive plate mounting bolt in two stages.
NOTE: Fix the engine unit.
1. Tighten the drive plate mounting bolt.
  Tightening torque:

  30 N.m (3.1 kgf-m, 22.1 ft-lb)

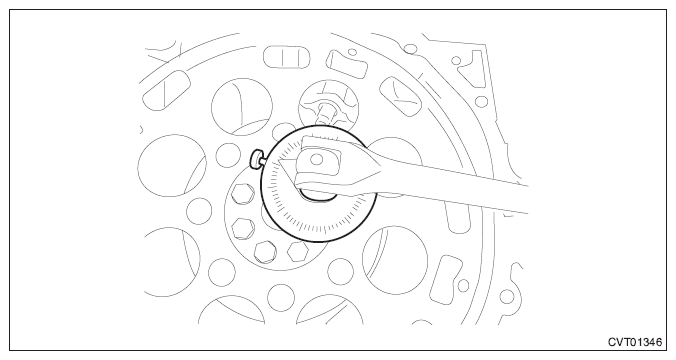

2. While checking the tightening angle with the angle gauge, tighten the drive plate mounting bolts to the specified angle.
  Tightening angle:

  30°- 35°
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
