Exhaust Side

  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct (rear). (RH side only) Ref. to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .
  3. Disconnect the connector (A) from the oil control solenoid, and remove the oil control solenoid from the chain cover.

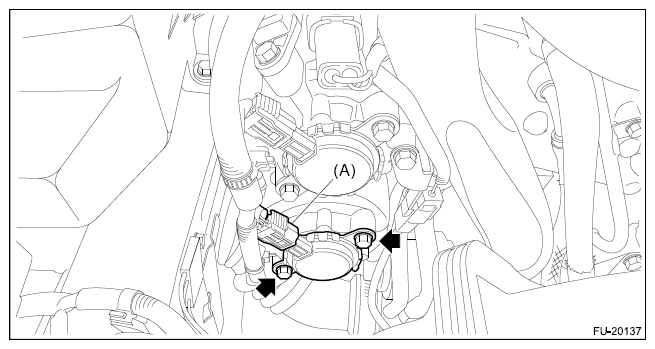

    • RH side
      G12508996Courtesy of SUBARU OF AMERICA, INC.

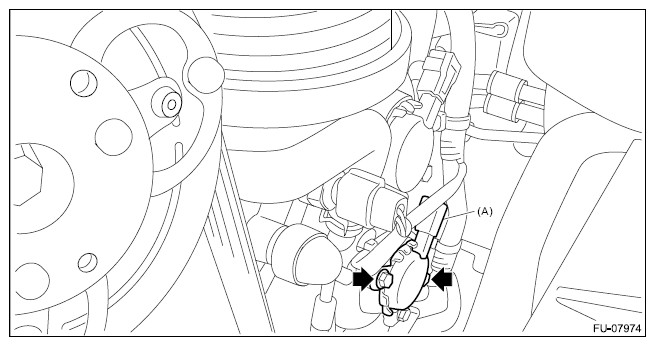

    • LH side
      G12508997Courtesy of SUBARU OF AMERICA, INC.
