Back Window Glass
>>
Exploded View
Exploded View
Fig 1: Back Window Glass Components With Torque Specification (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

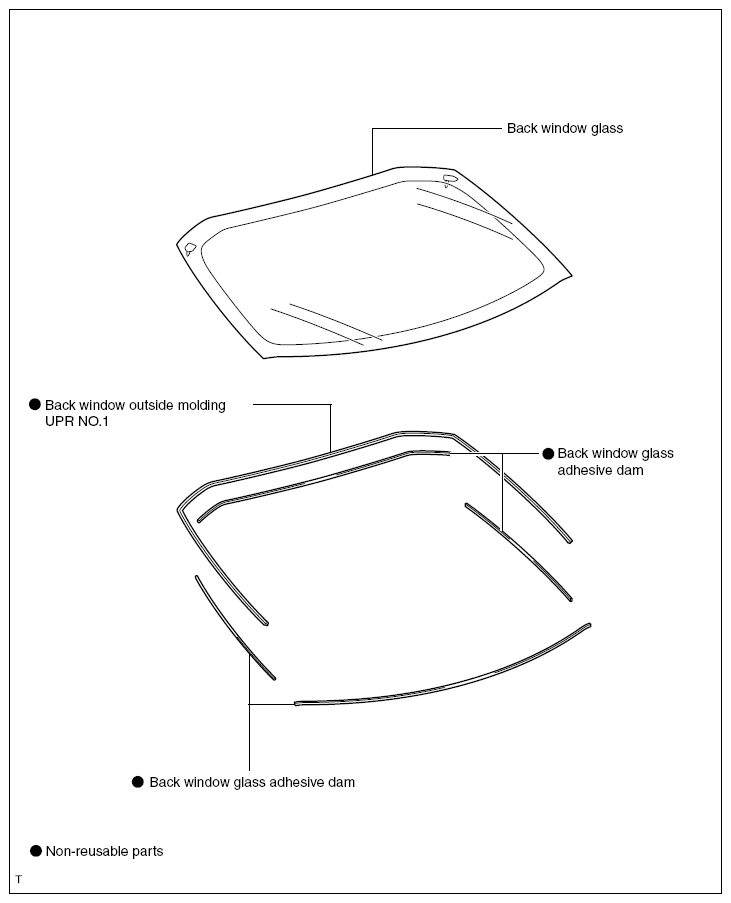

Fig 2: Back Window Glass Components With Torque Specification (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
