Exploded View

Fig 1: Speed Sensor Components With Torque Specification (1 Of 2)
G08554359Courtesy of SUBARU OF AMERICA, INC.

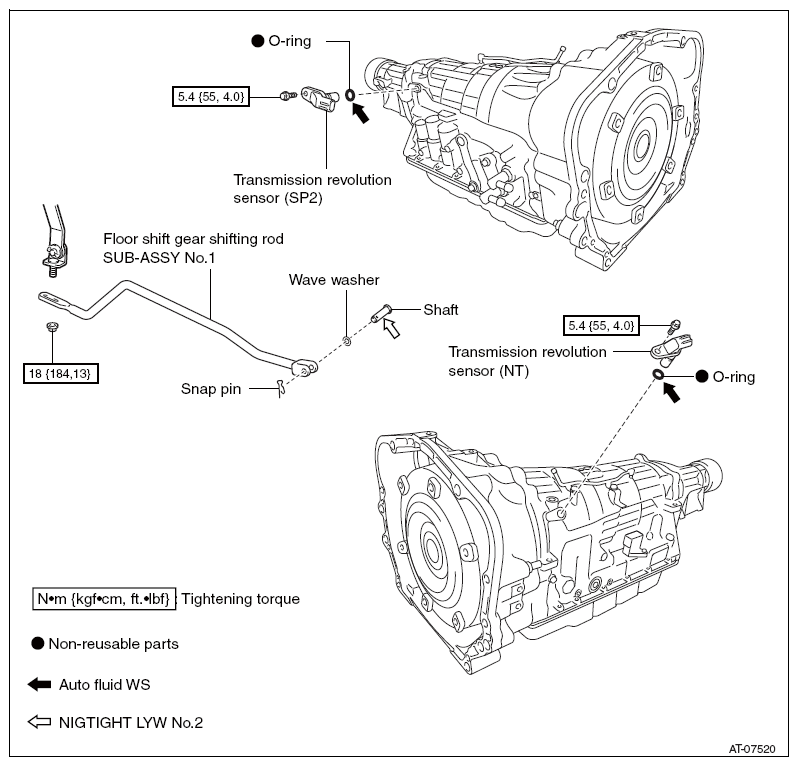

Fig 2: Speed Sensor Components With Torque Specification (2 Of 2)
G08554360Courtesy of SUBARU OF AMERICA, INC.
