Torque Converter Assembly: Installation

  1. Install the O-ring to front reduction drive gear.
    NOTE:
    • Use new O-rings.
    • Apply CVTF to the O-ring.
  2. While holding the torque converter assembly by hand, carefully install it into the torque converter case.
    NOTE:
    • Apply CVTF to the oil seal lip.
    • Do not damage the oil seal and O-ring.
  3. Engage the splines while gently rotating the torque converter assembly by hand, and securely insert the assembly.
  4. Measure depth "A", from converter case end surface to drive plate contacting surface.

    Standard (reference):

    6.8 mm (0.268 in) or less

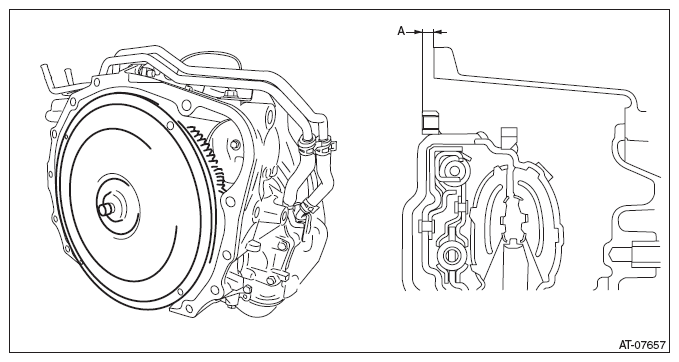

    Fig 1: Measuring Depth "A" From Converter Case End Surface To Drive Plate Contacting Surface
    G09482063Courtesy of SUBARU OF AMERICA, INC.
  5. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
