Transmission Mounting

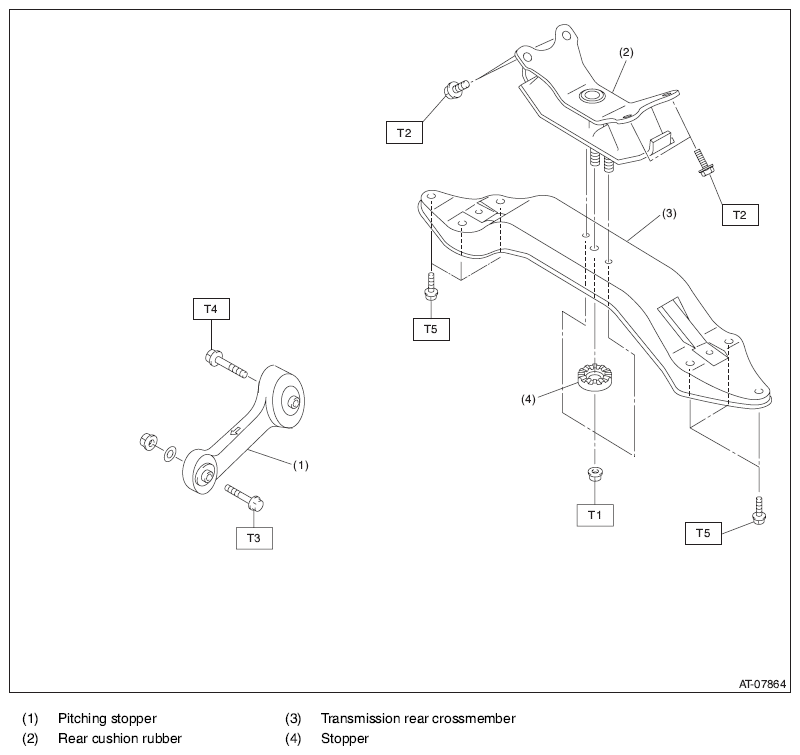

Fig 1: Identifying Transmission Mounting Related Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35(3.6, 25.8)

T2: 40(4.1, 29.5)

T3: 50(5.1, 36.9)

T4: 58(5.9, 42.8)

T5: 70(7.1, 51.6)
