Cruise Control Command Switch: Inspection

  1. Measure the resistance between connector terminals.

    Preparation tool:

    Circuit tester

    • Impreza model

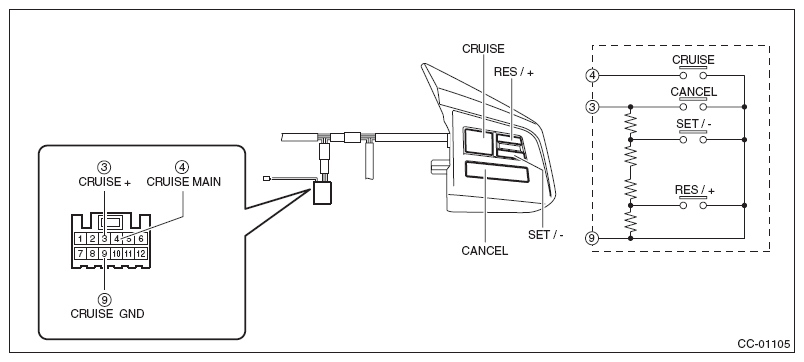

      Fig 1: Measuring Resistance Between Cruise Control Command Switch Connector Terminals (Impreza Model)
      G10320202Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek model
      Fig 2: Measuring Resistance Between Cruise Control Command Switch Connector Terminals (Crosstrek Model)
      G10273206Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    3 - 9 CANCEL
    SET/--
    RES/+    		 All OFF Approx. 4, 020 Ω
    CANCEL ON Less than 1 Ω
    SET/-- ON Approx. 250 Ω
    RES/+ ON Approx. 1, 470 Ω
    4 - 9 CRUISE (MAIN) OFF 1 MΩ or more
    ON Less than 1 Ω
  2. Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.
    Terminal No. Inspection conditions Specification
    10 (+) - 11 (-) Apply battery voltage. Light ON
  3. Replace the cruise control command switch assembly if the inspection result is not within the standard.
