Power Window Regulator Motor Assembly (Installed To The Front Side)
>>
Exploded View
Exploded View
Fig 1: Exploded View Of Power Window Regulator Motor Assembly (Installed To Front Side) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

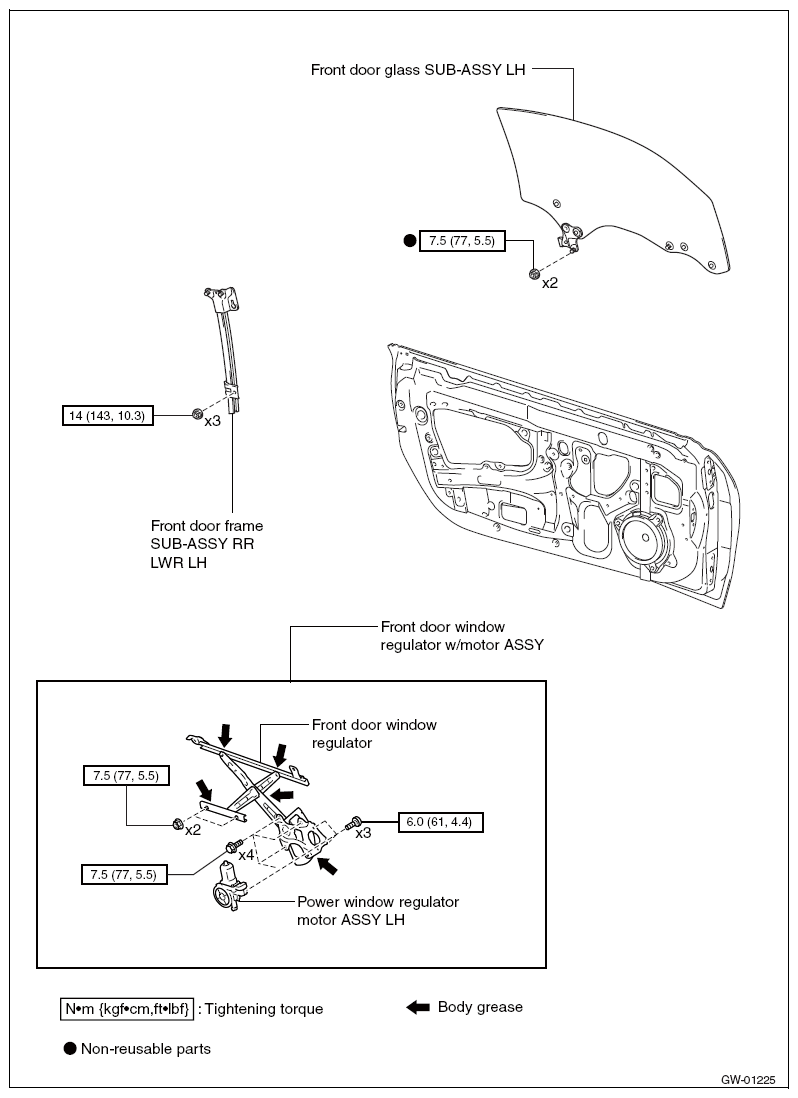

Fig 2: Exploded View Of Power Window Regulator Motor Assembly (Installed To Front Side) With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
