Oil Level Switch: Installation

Route the oil level switch harness as shown in the figure.

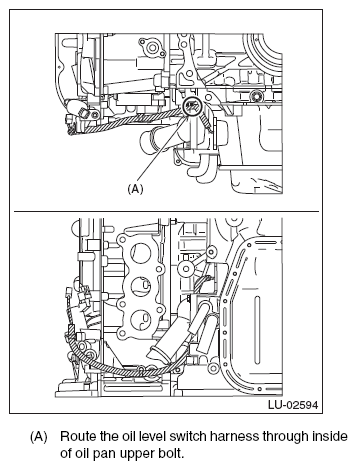

Fig 1: Identifying Oil Level Switch Harness Route
Courtesy of SUBARU OF AMERICA, INC.
Attach the oil level switch to the oil pan upper.
NOTE:
- Use new O-rings.
- Apply engine oil to O-ring.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

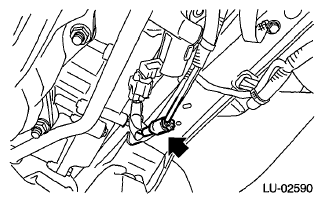

Fig 2: Locating Oil Level Switch Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Attach the clips which hold the front camshaft cap (LH) and cylinder head (LH).

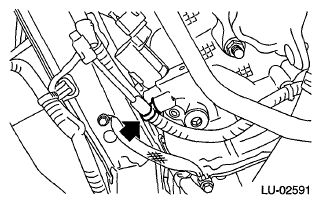

Fig 3: Locating Camshaft Cap Mounting Clip (LH)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Locating Camshaft Cap Mounting Clip (RH)
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector of the oil level switch to the engine harness.

Fig 5: Locating Oil Level Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to INSTALLATION .
Lower the vehicle.
Refill the engine oil. Refer to REPLACEMENT .
Check the engine oil level. Refer to INSPECTION .
