Home >> Subaru >> 2013 >> Outback F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Cover

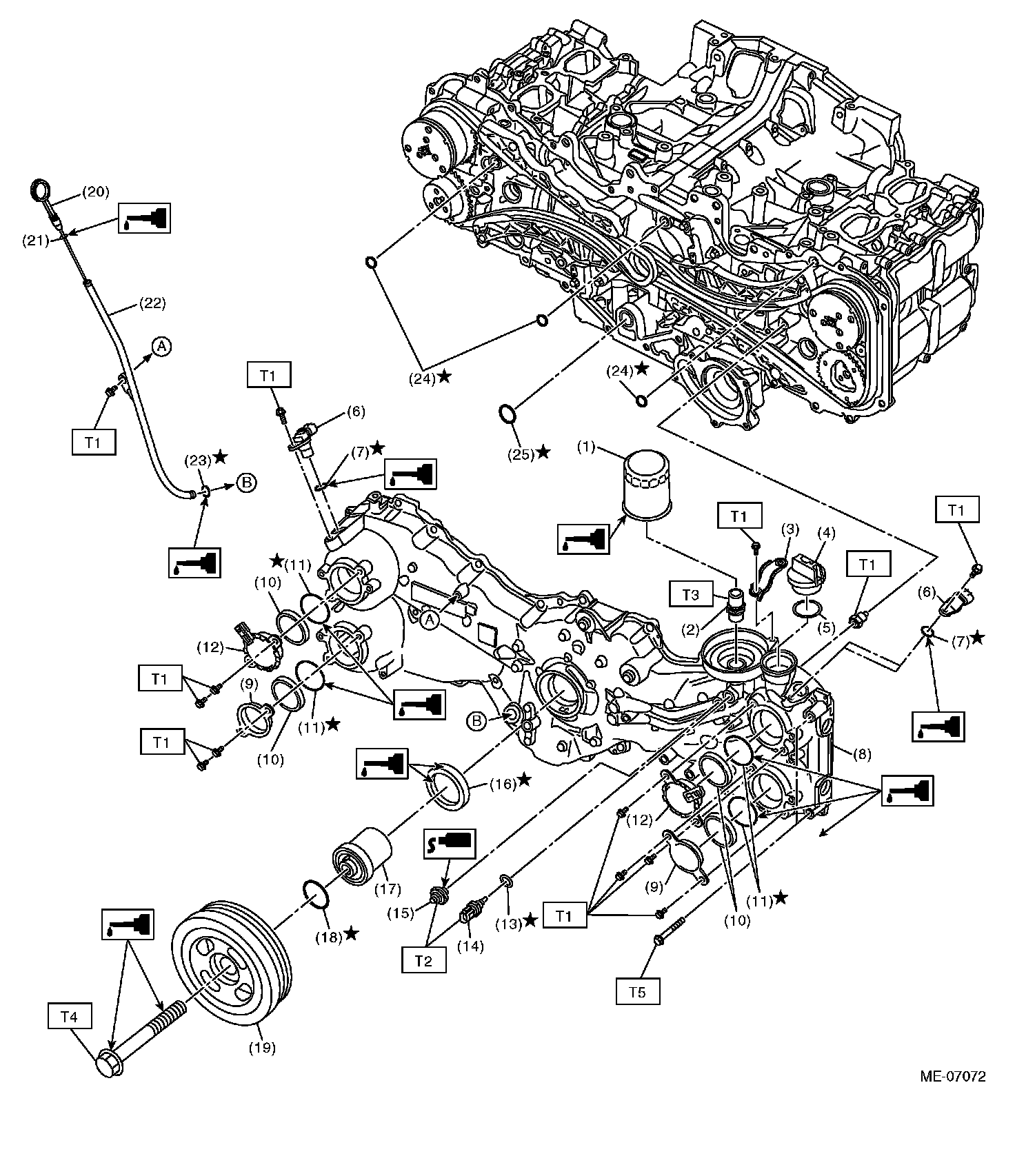

Timing Cover

COMPONENT

CHAIN COVER
