Continuously Variable Transmission/Transaxle, CVT
>>
Torque Converter Assembly and Converter Case
Torque Converter Assembly and Converter Case

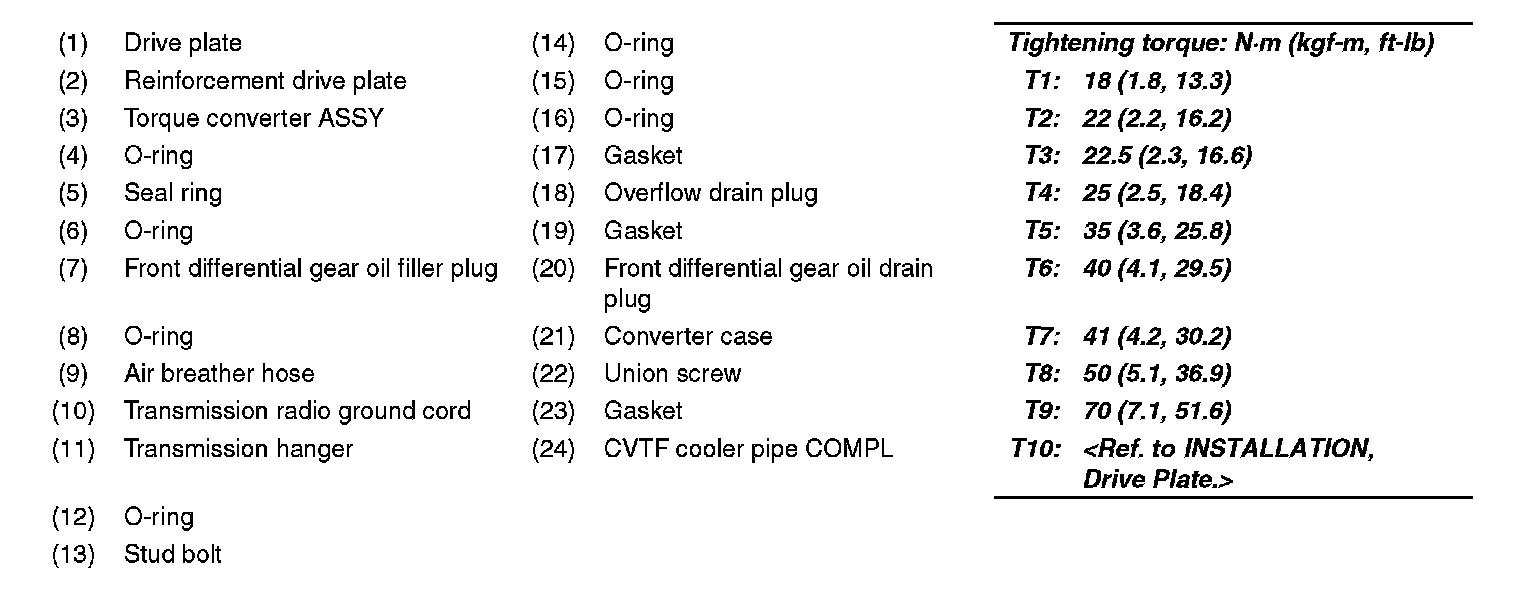

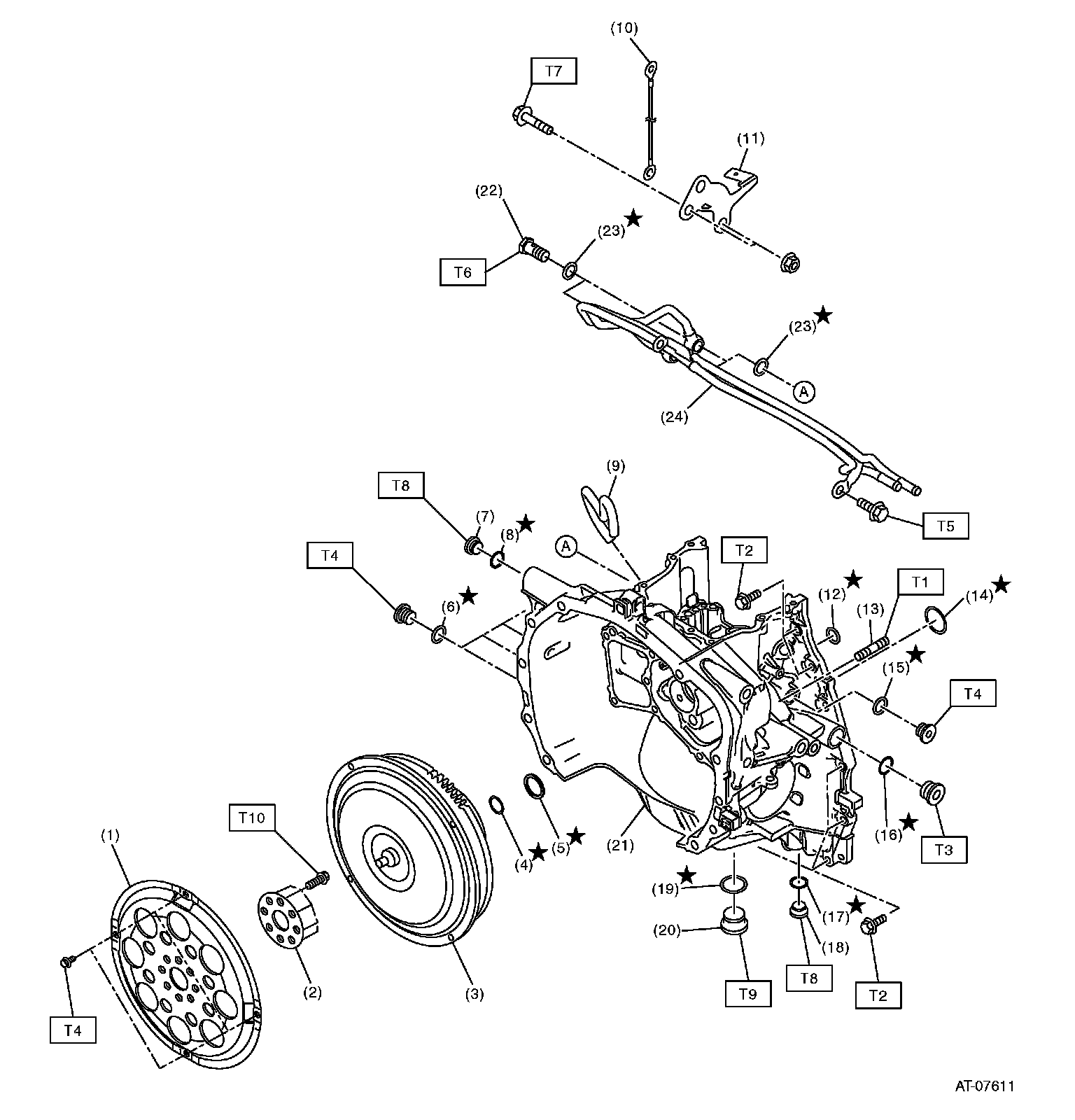

TORQUE CONVERTER ASSEMBLY AND CONVERTER CASE
