Brake Hose/Line
Brake Hose/Line
FRONT BRAKE PIPES AND HOSES
^

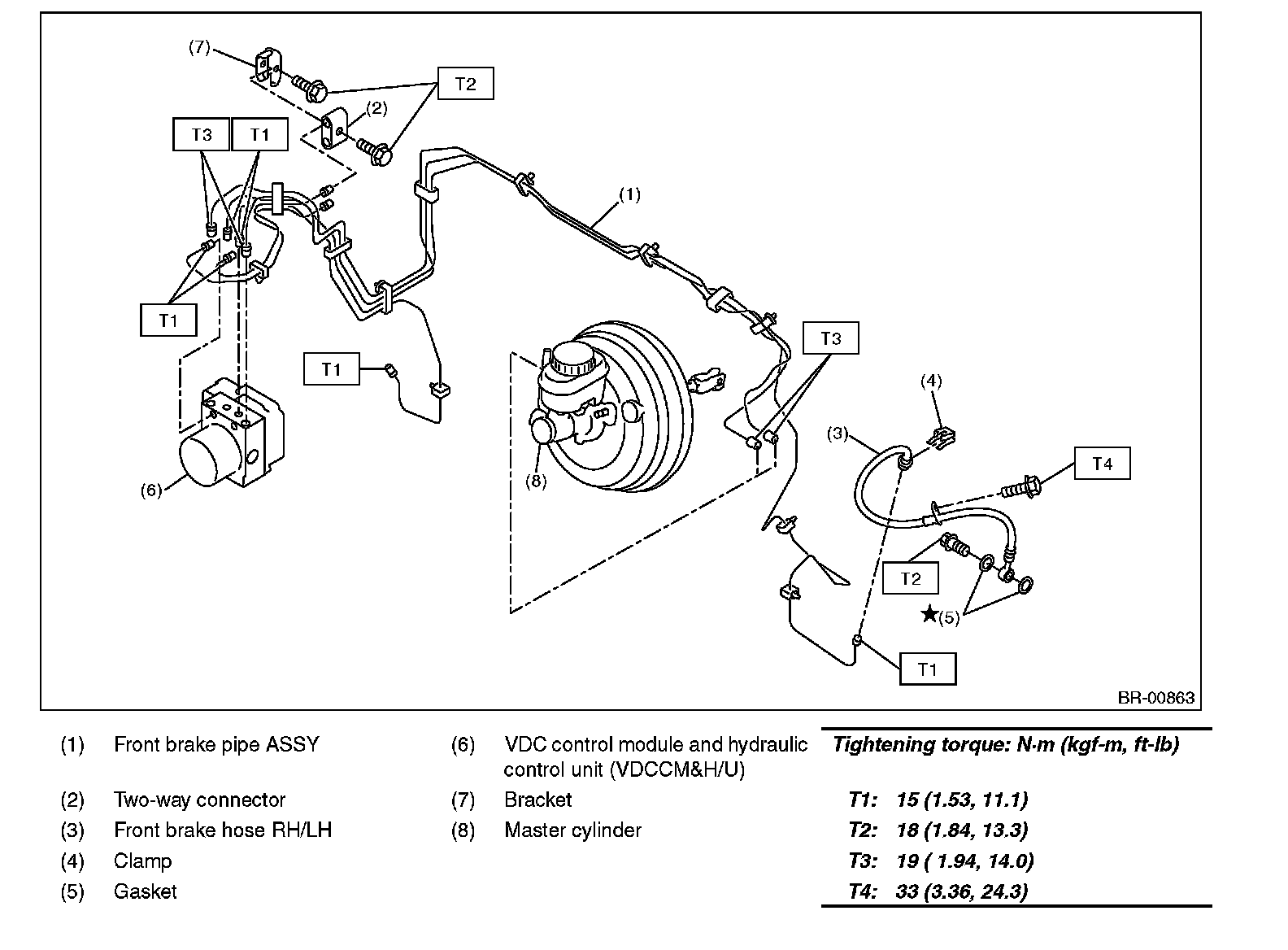

Models without EyeSight
^

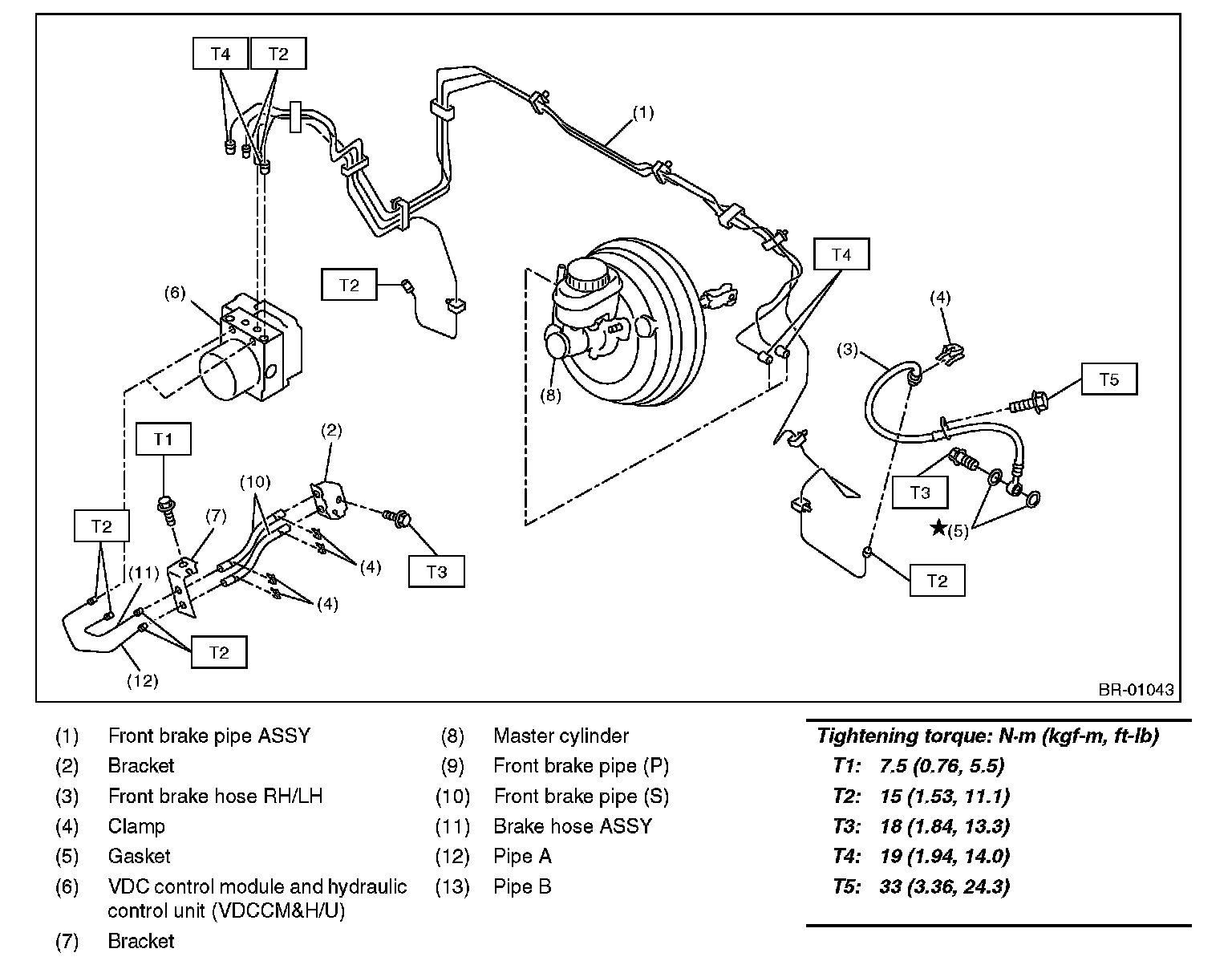

Models with EyeSight

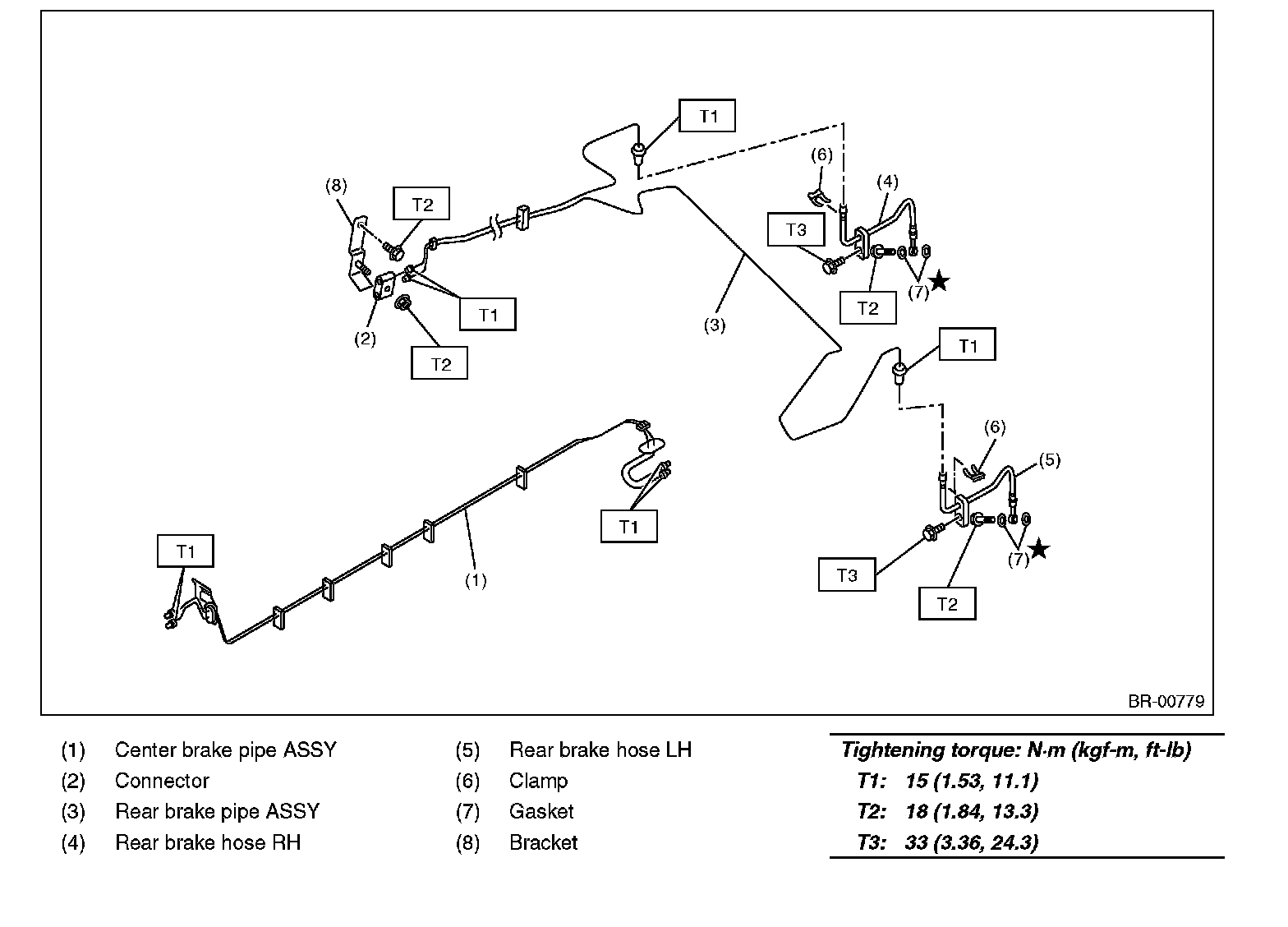

CENTER AND REAR BRAKE PIPES AND HOSES
