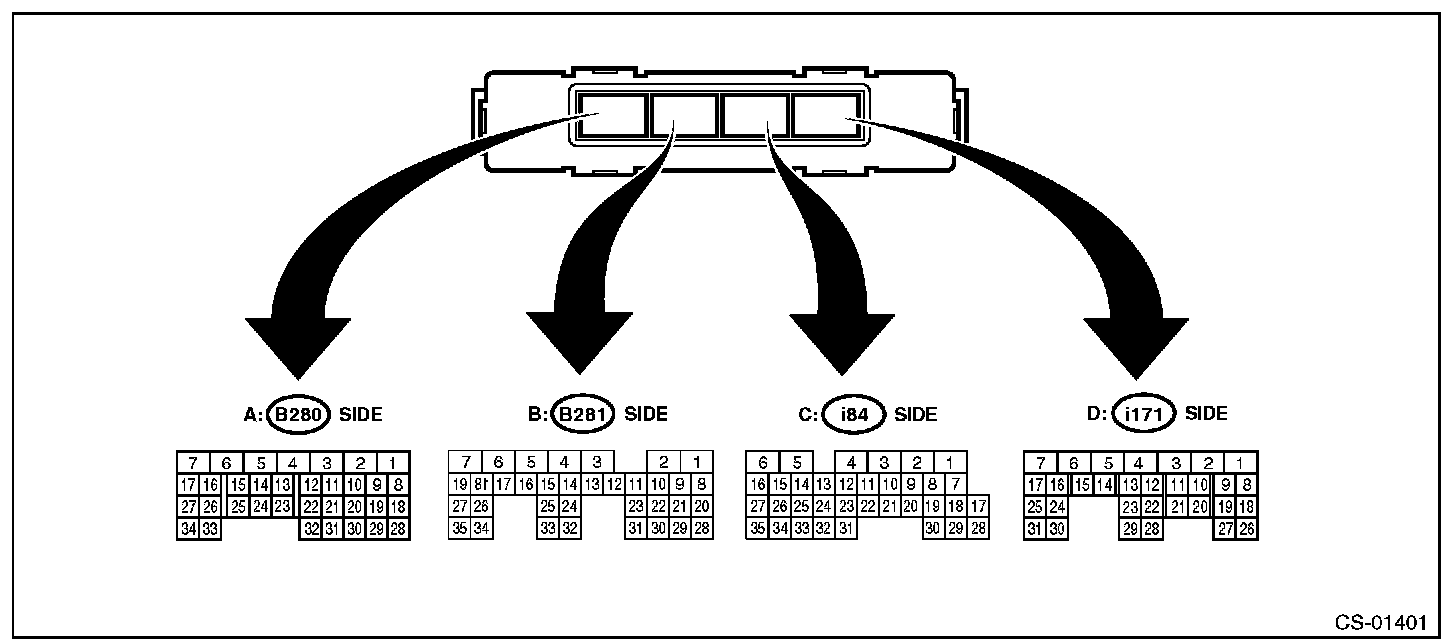

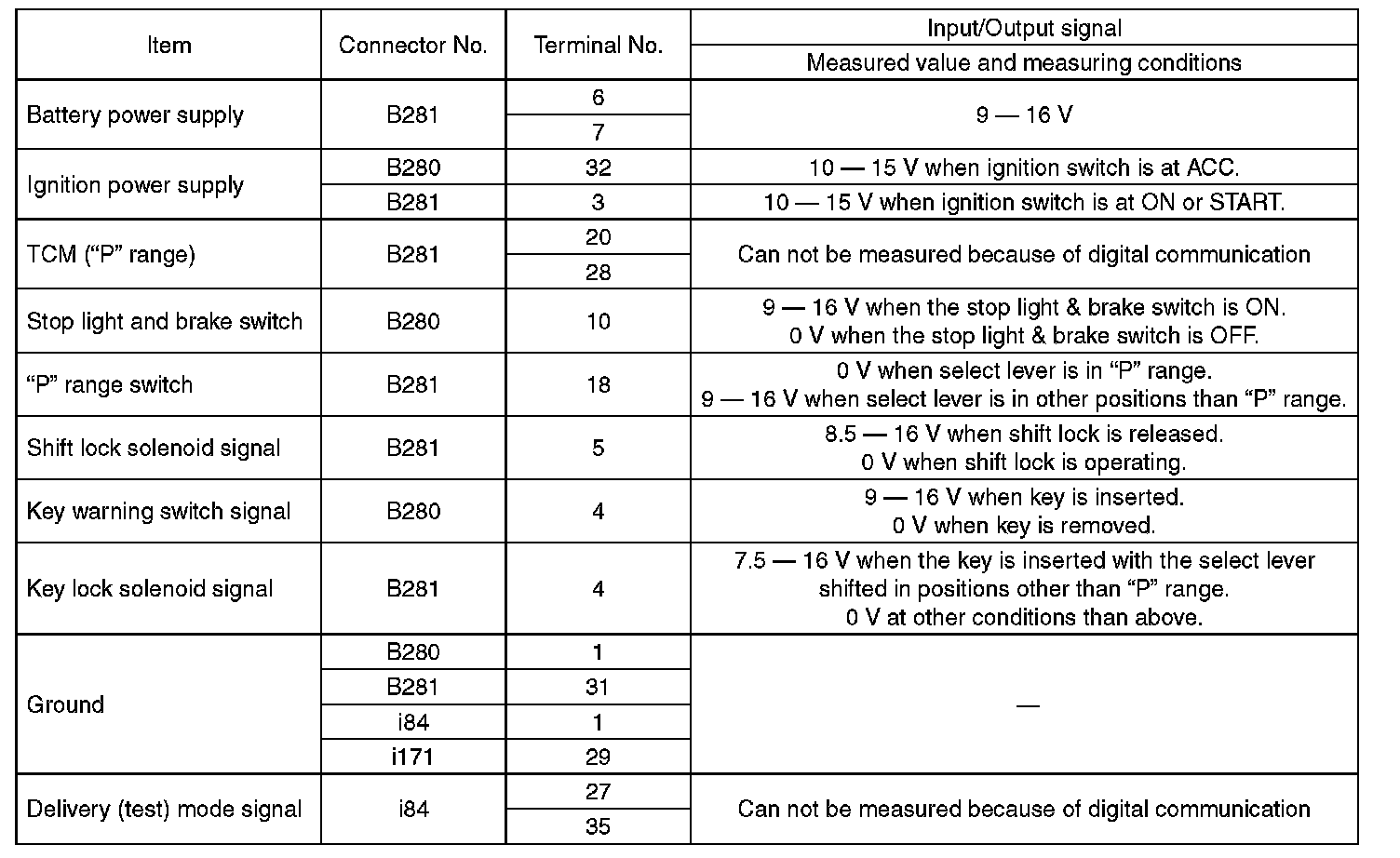

Home >> Subaru >> 2013 >> Impreza F4-2.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Control Module Pinout Values
