Forester F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Power Steering Pump
Power Steering Pump
OIL PUMP
^

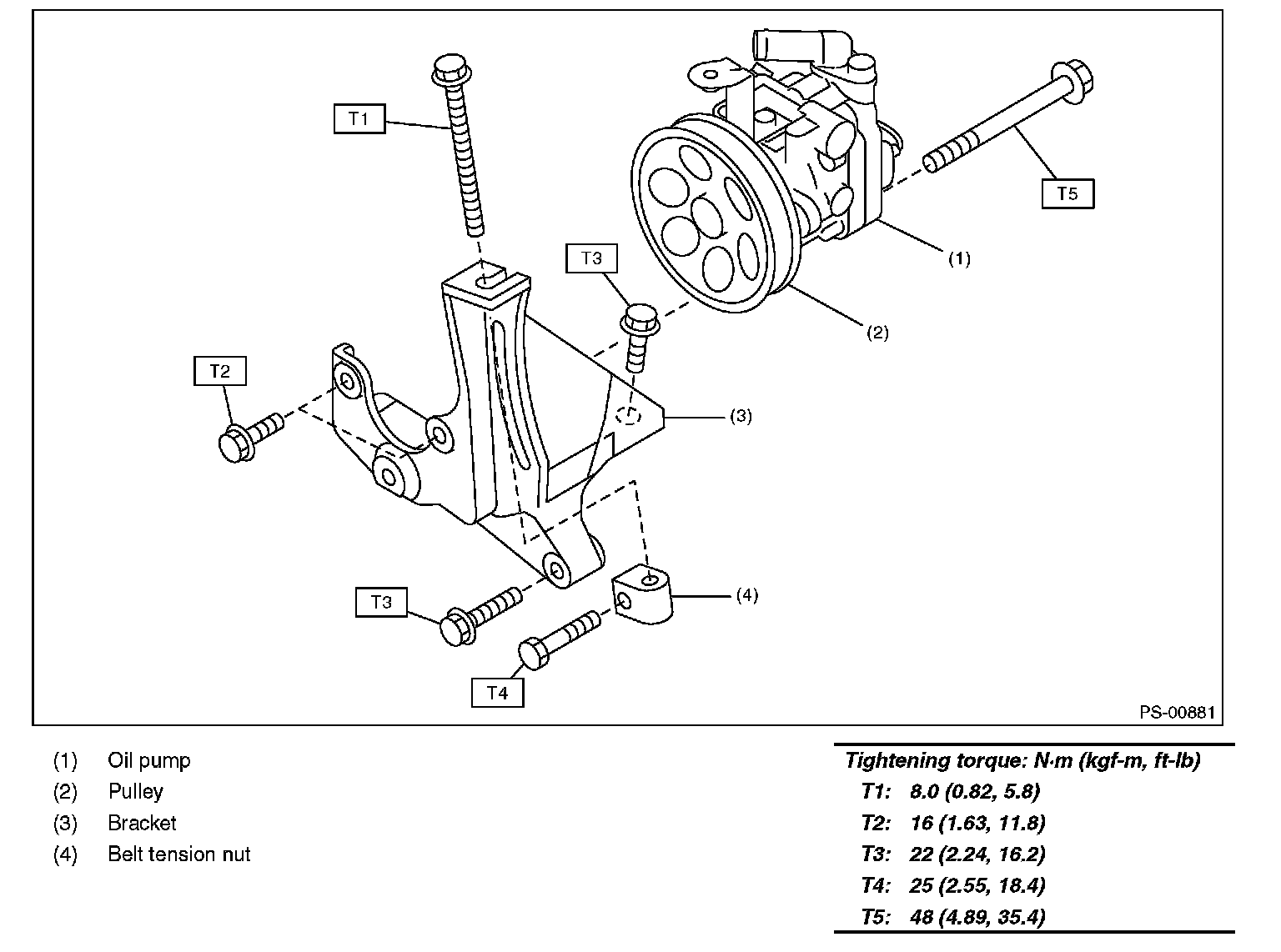

Non-turbo model
^

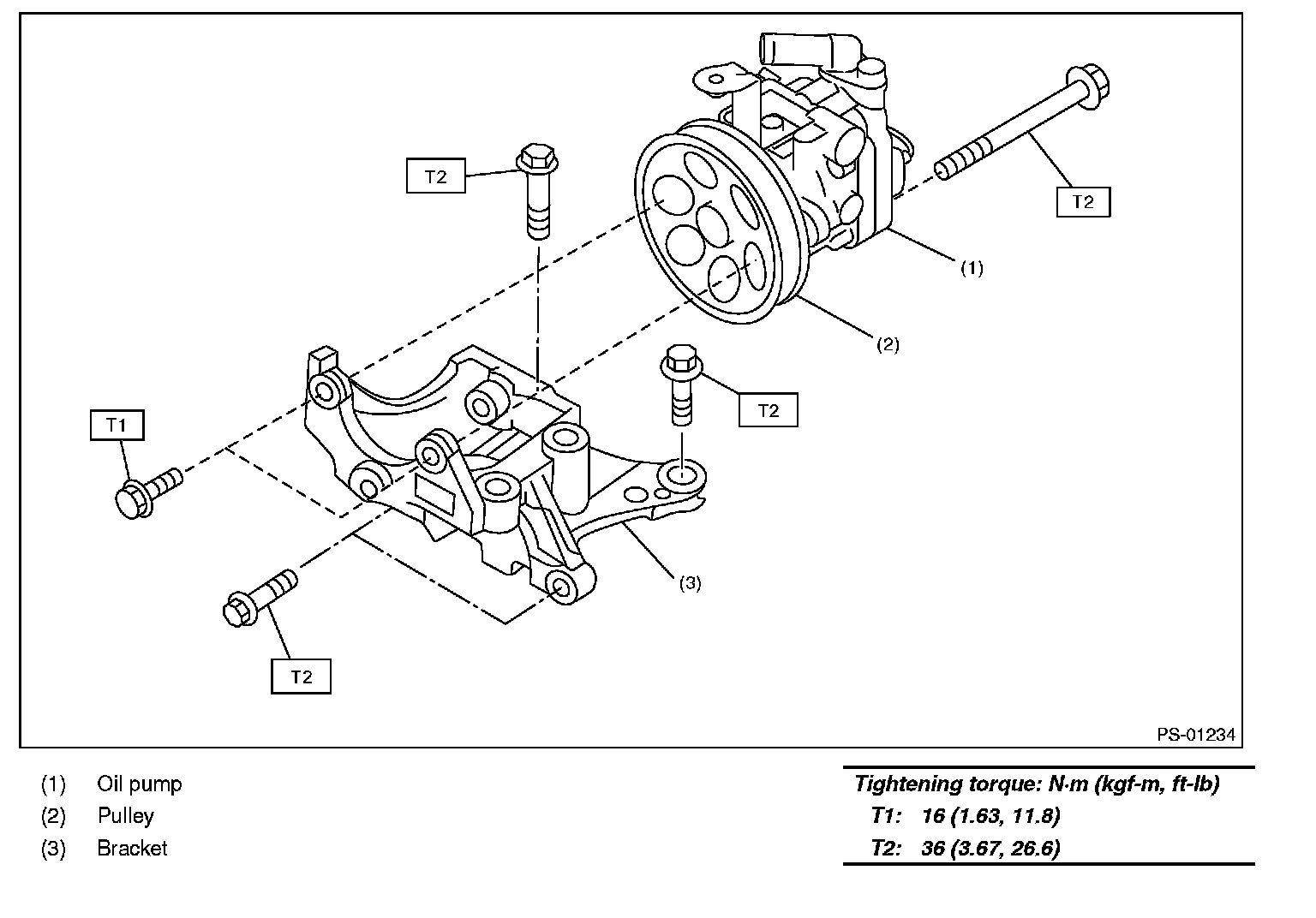

Turbo model
