Subaru
>>
2013
>>
BRZ F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Water Pump
Water Pump

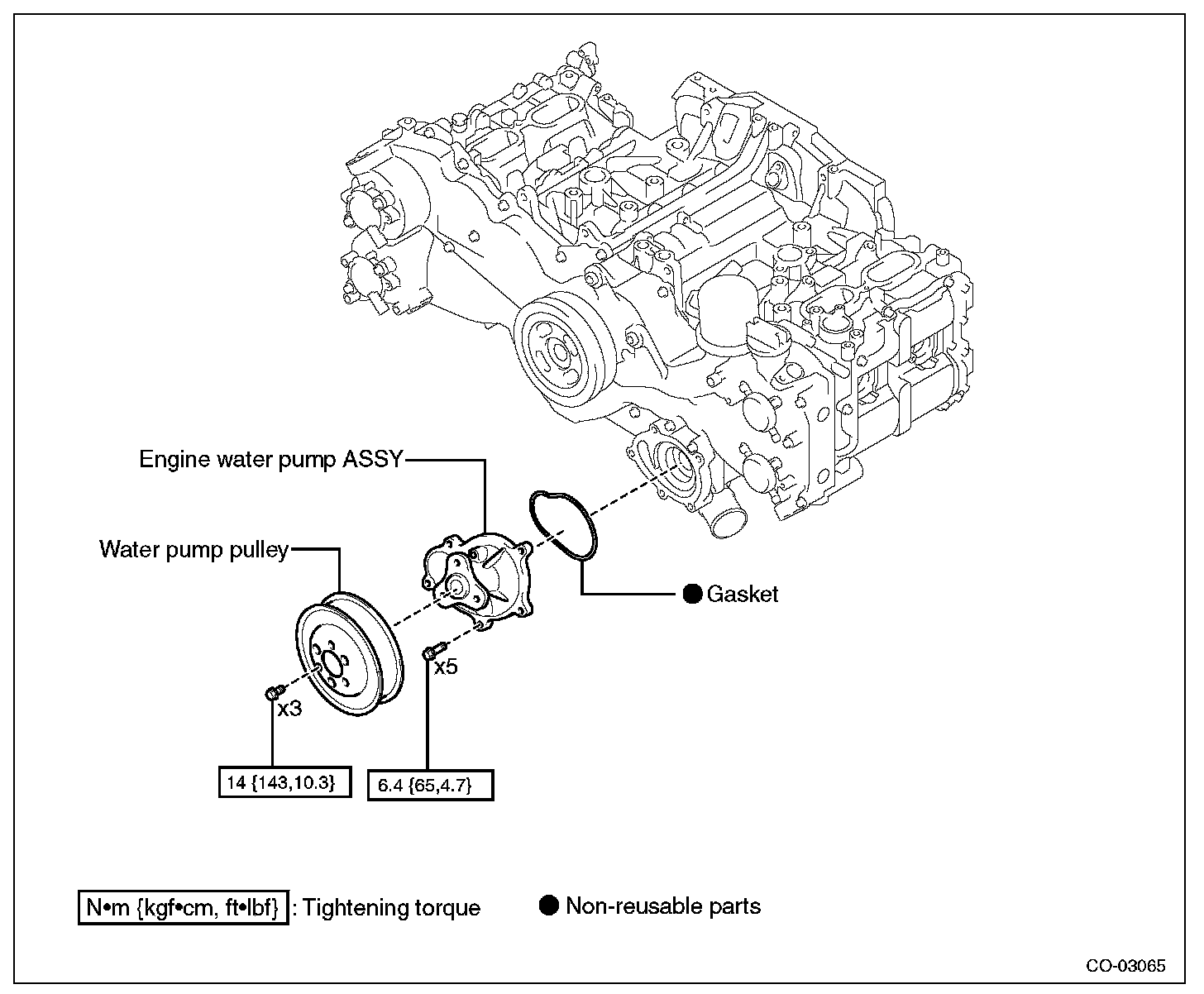

Water pump (FA20)
Exploded view
