Engine
>>
Oil Pressure Sender
Oil Pressure Sender

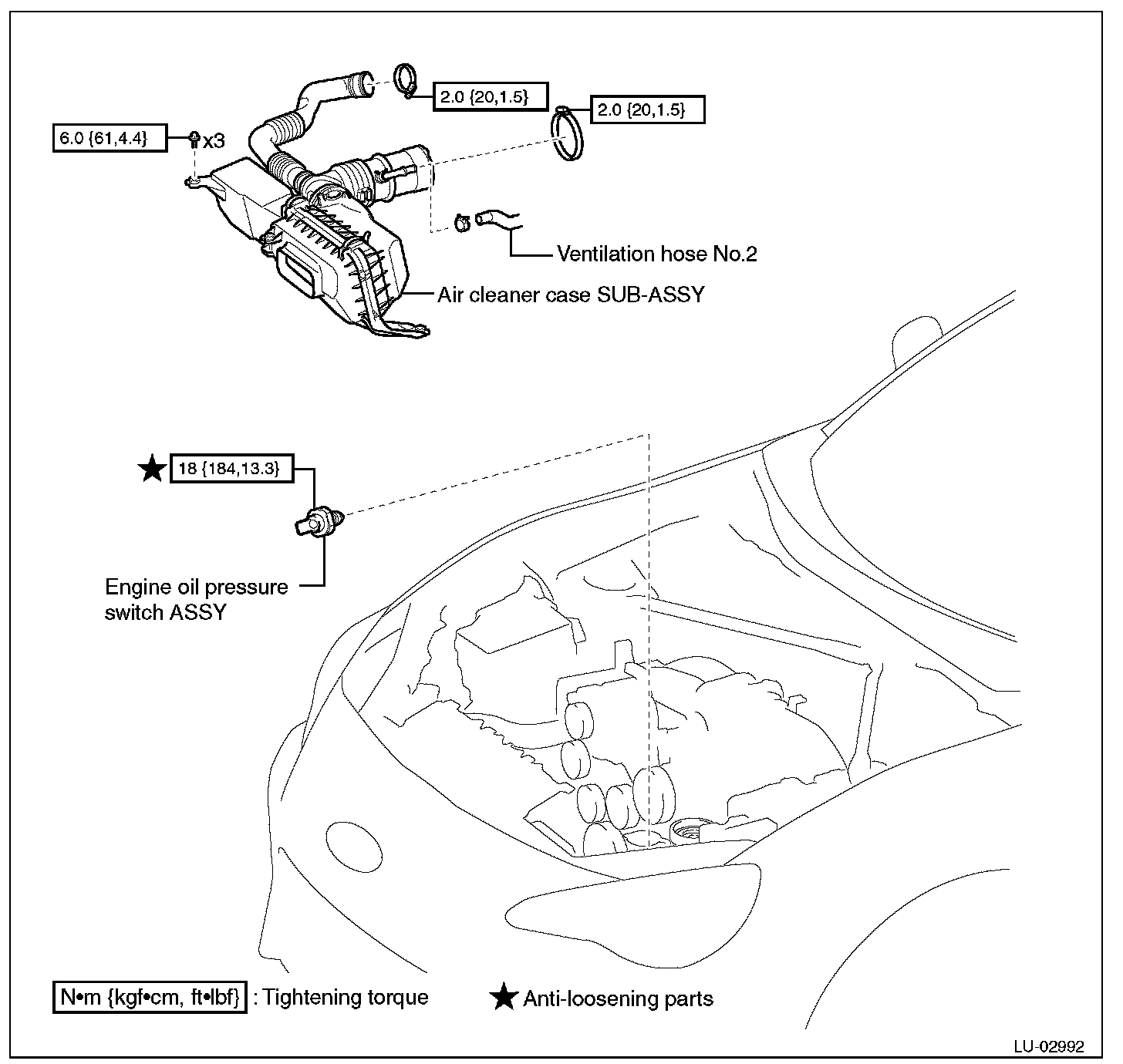

Engine oil pressure switch ASSY (FA20)
Exploded view
