Home >> Subaru >> 2013 >> BRZ F4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Transmission Speed Sensor, A/T

Transmission Speed Sensor, A/T

Speed sensor

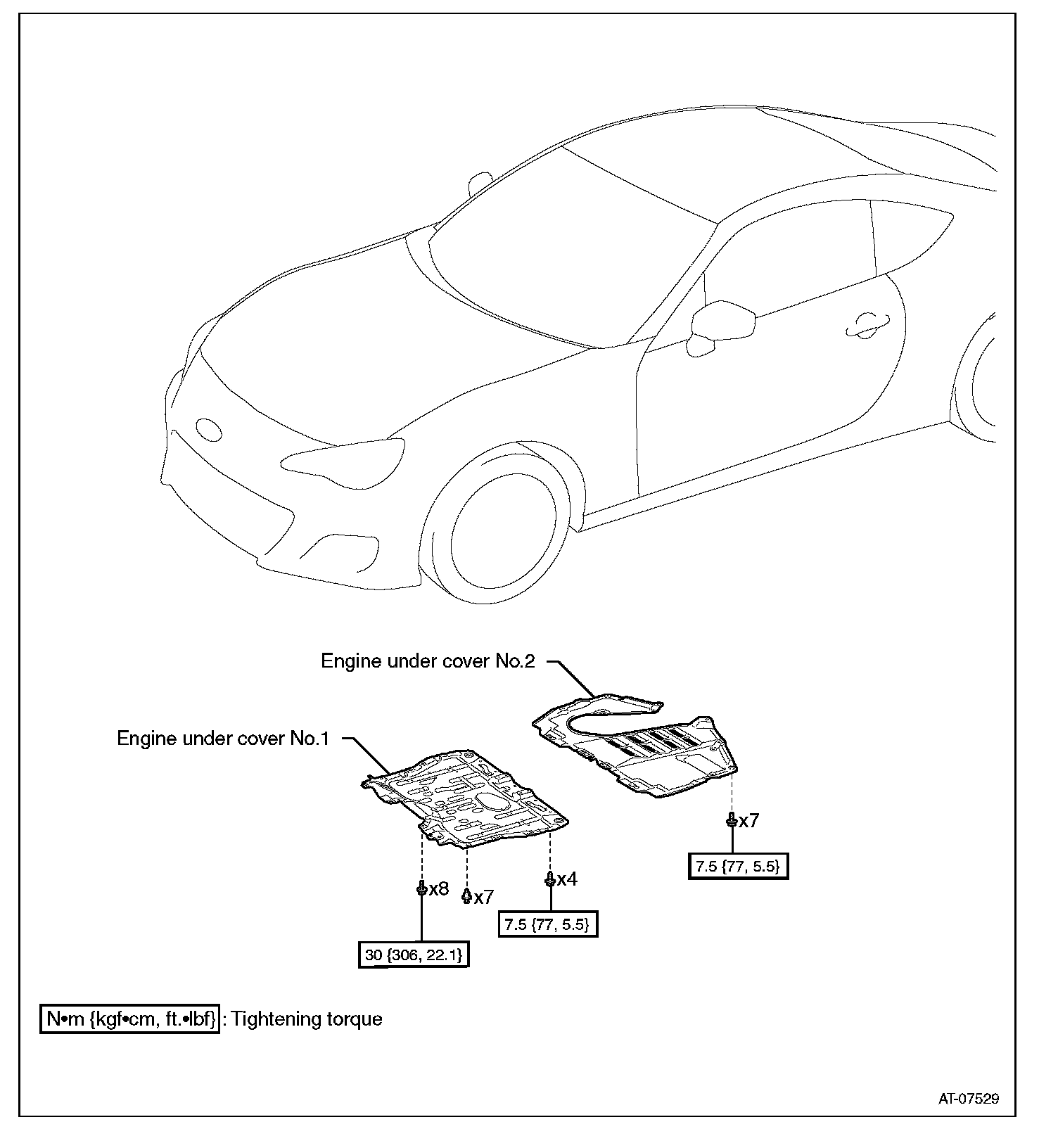

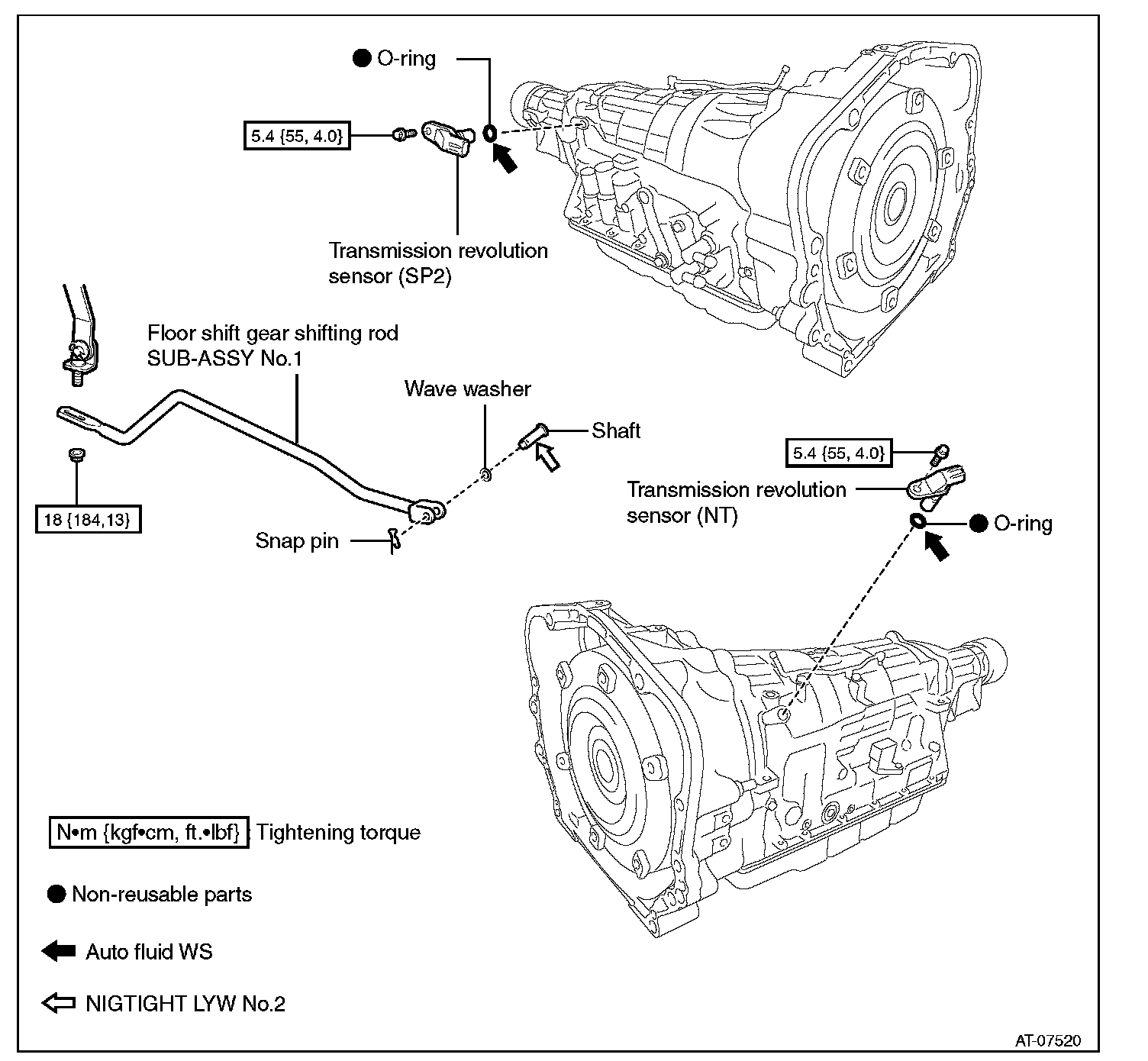

Exploded view
