Components With Torque Specifications: Mirror

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

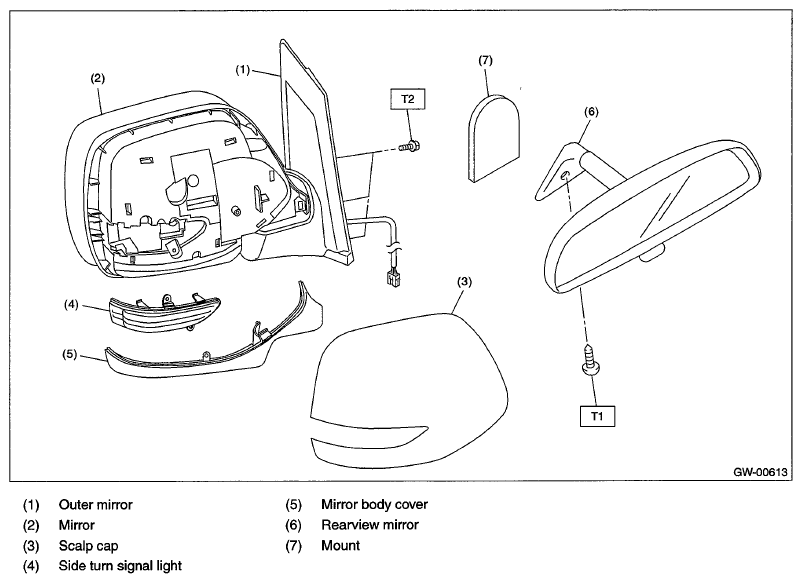

Fig 1: Identifying Mirror Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 4.5(0.46, 3.32)
