Engine Lubrication System - Mechanism & Function (H4SO)
>>
Engine Oil Flow
Engine Oil Flow

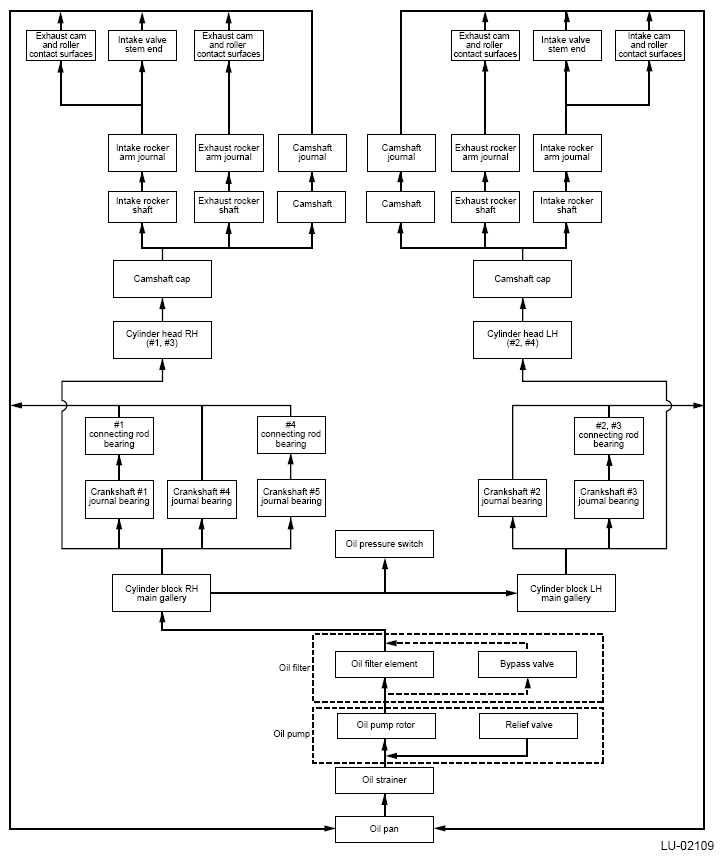

Fig 1: Engine Oil Flow Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
