Transmission Control Module (TCM) I/O Signal
Transmission Control Module (TCM) I/O Signal
Transmission Control Module (TCM) I/O Signal

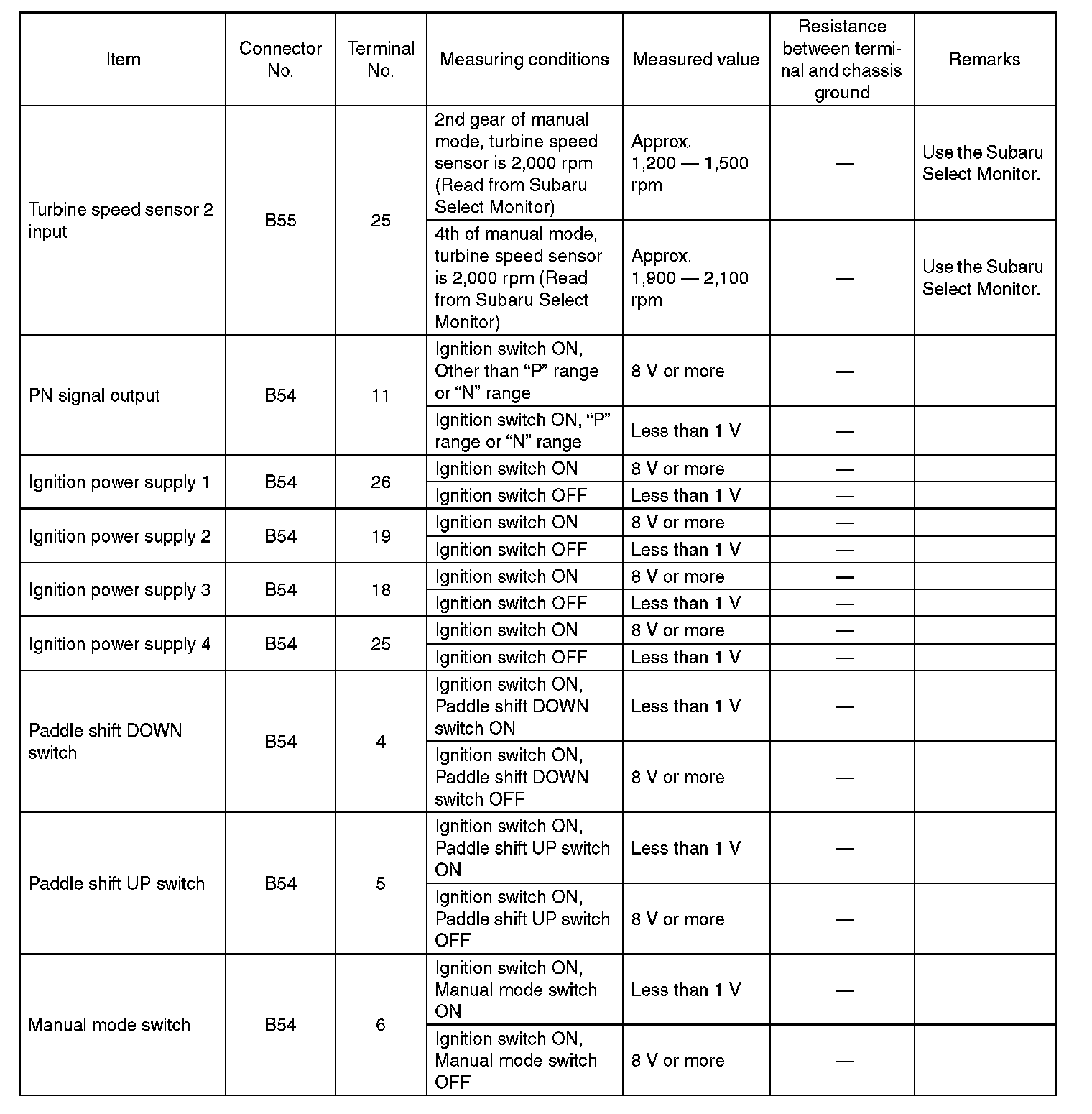

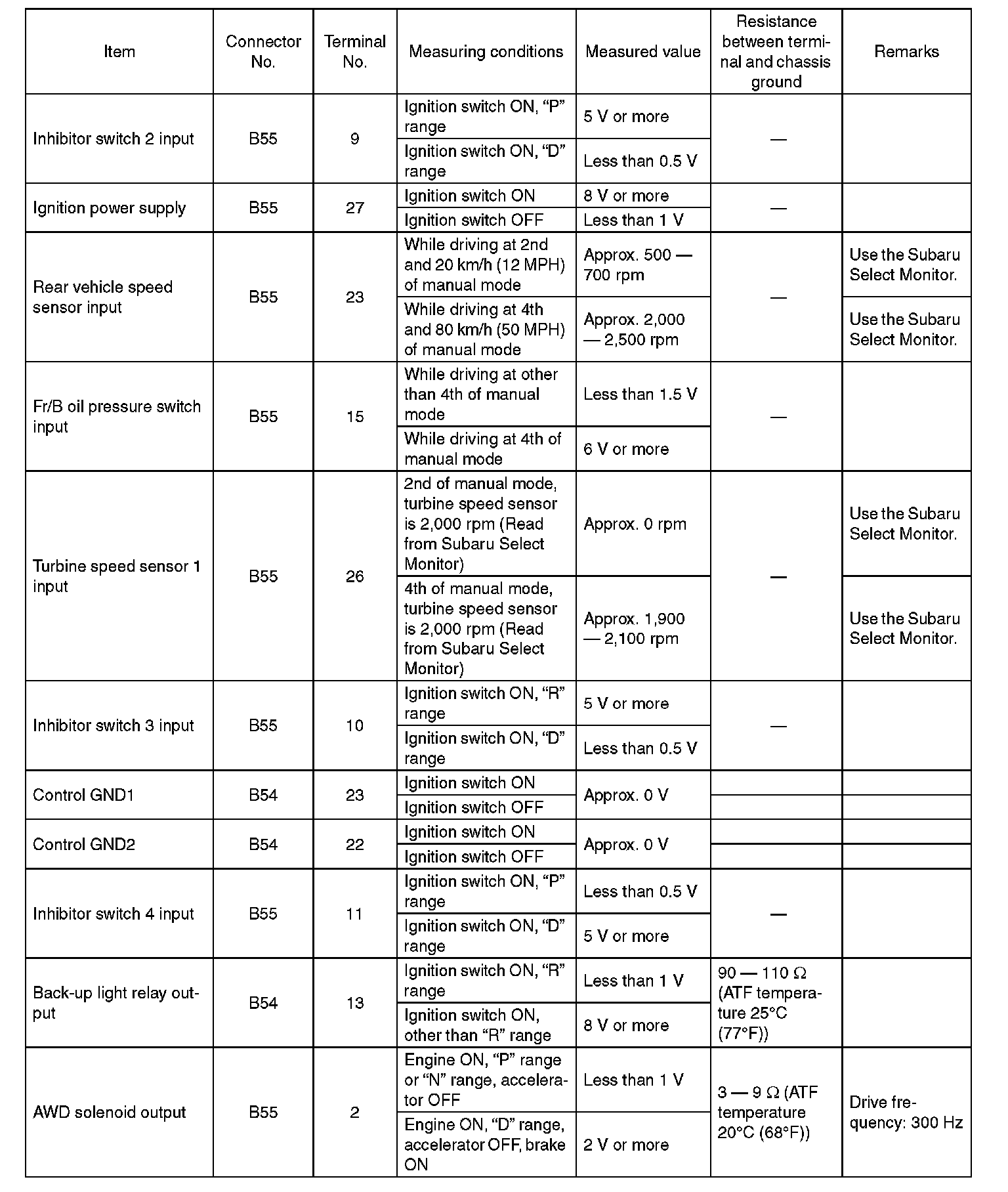

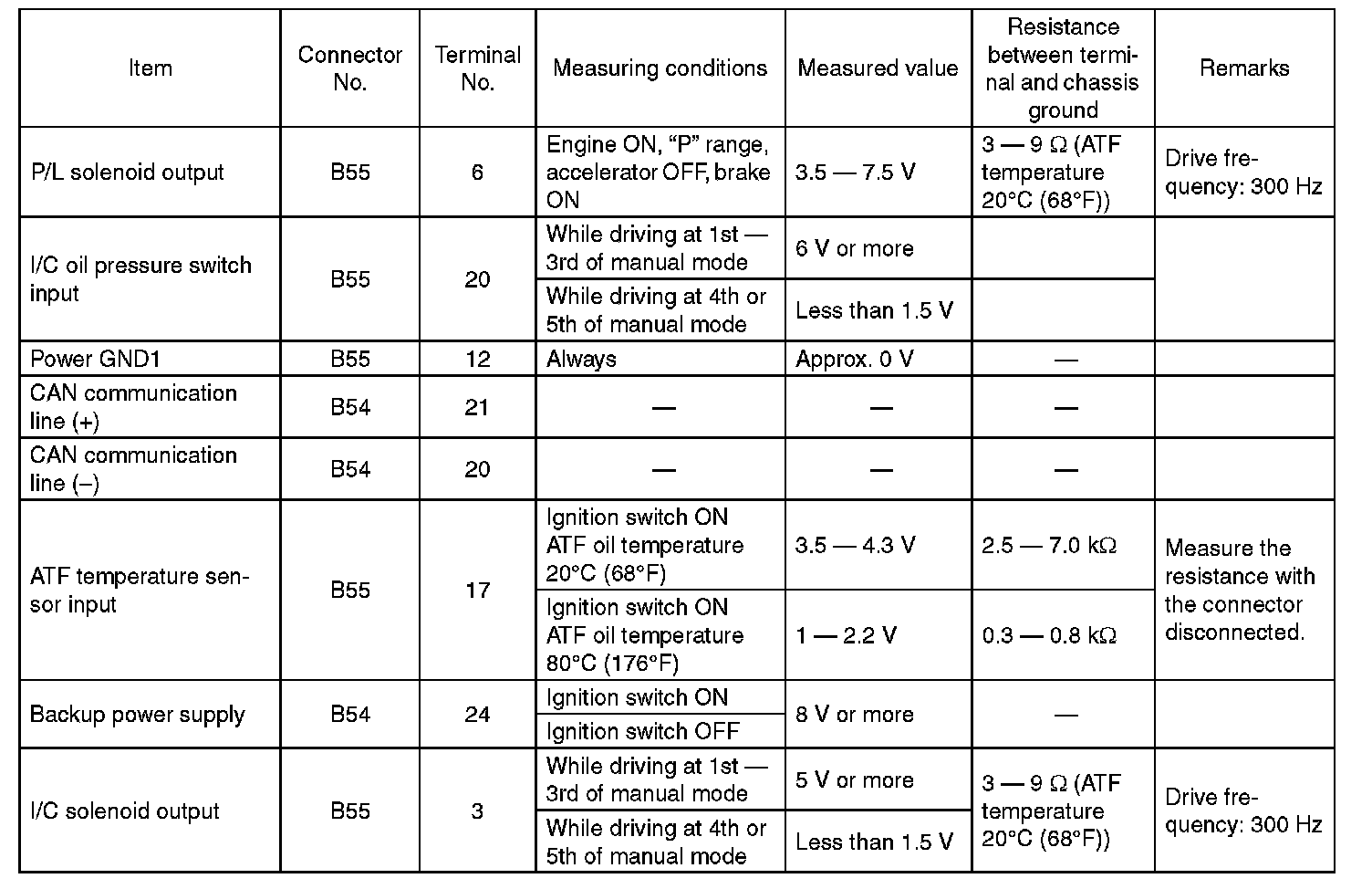

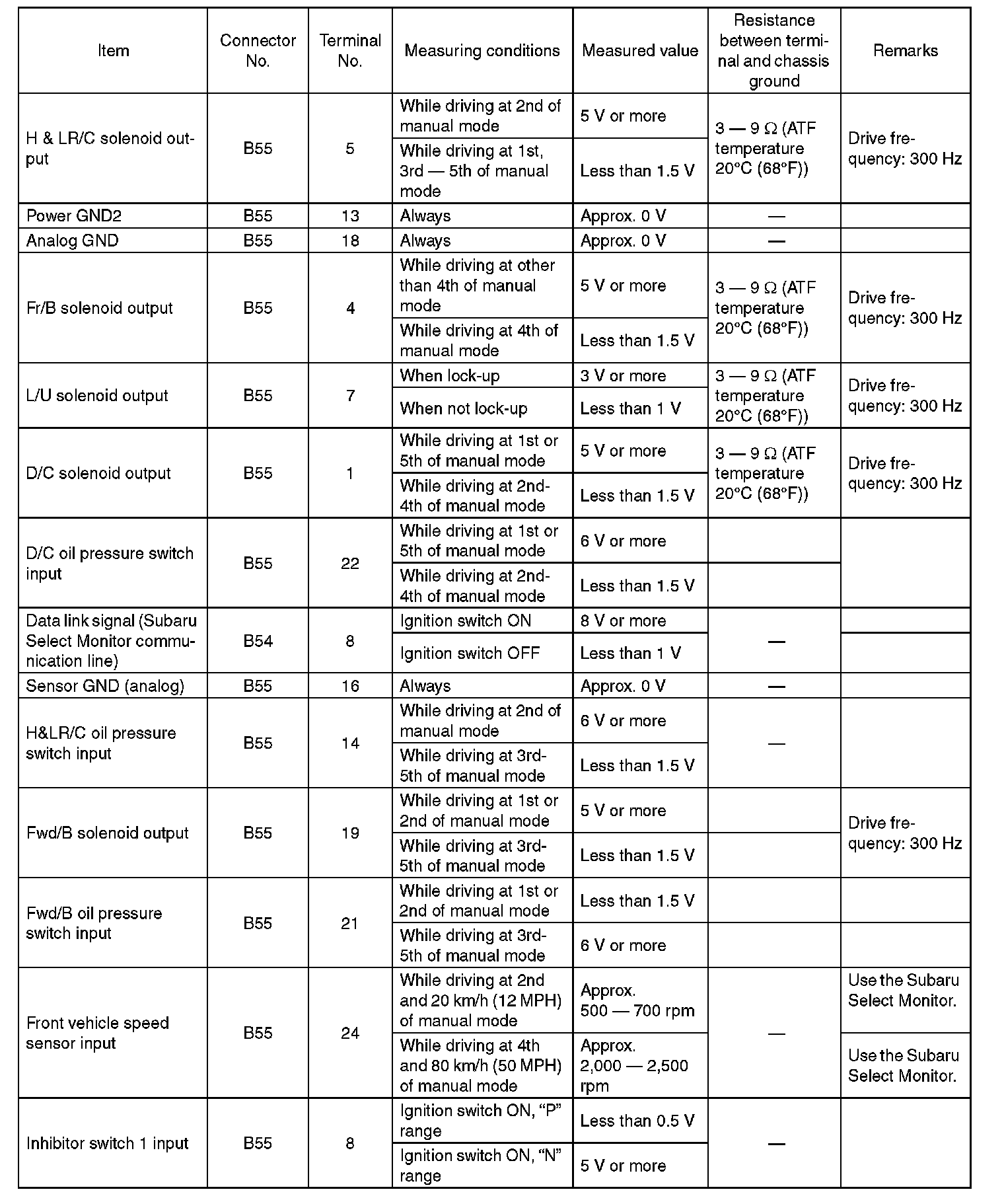

ELECTRICAL SPECIFICATION
NOTE:
Measure after warming up.
