Combination Meter System

Combination Meter System

ELECTRICAL SPECIFICATION

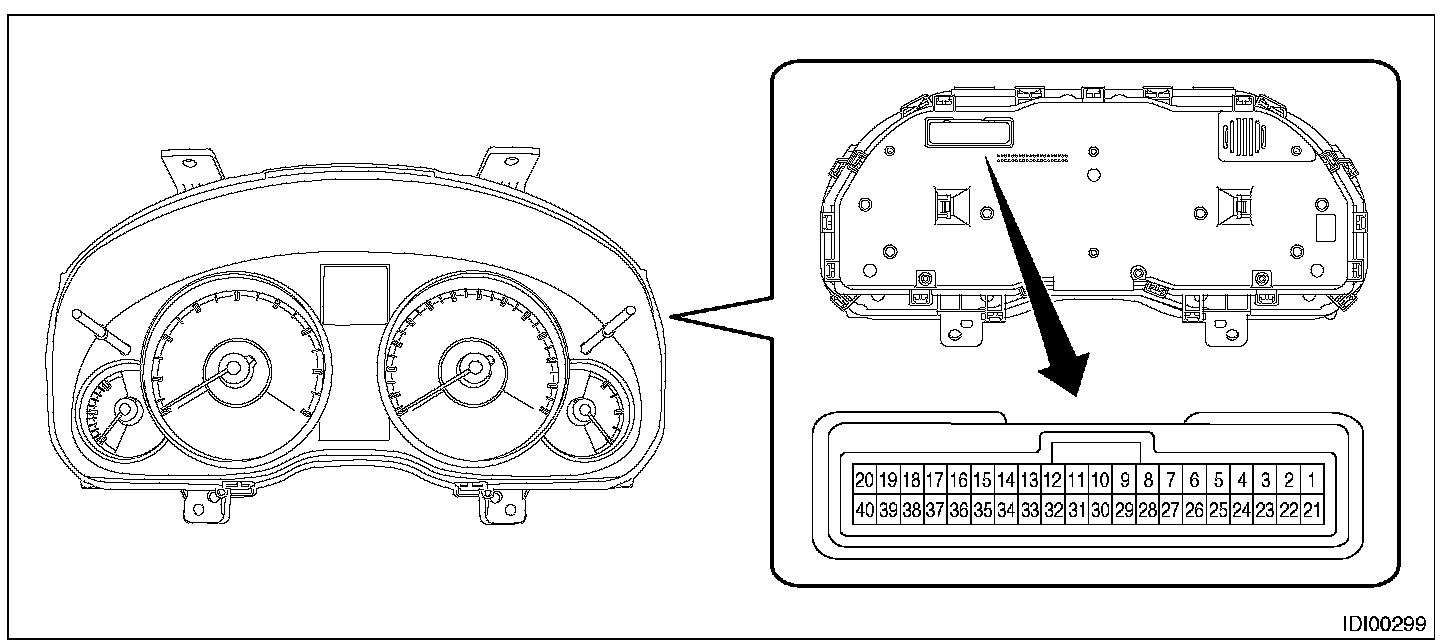

COMBINATION METER TERMINAL ARRANGEMENT

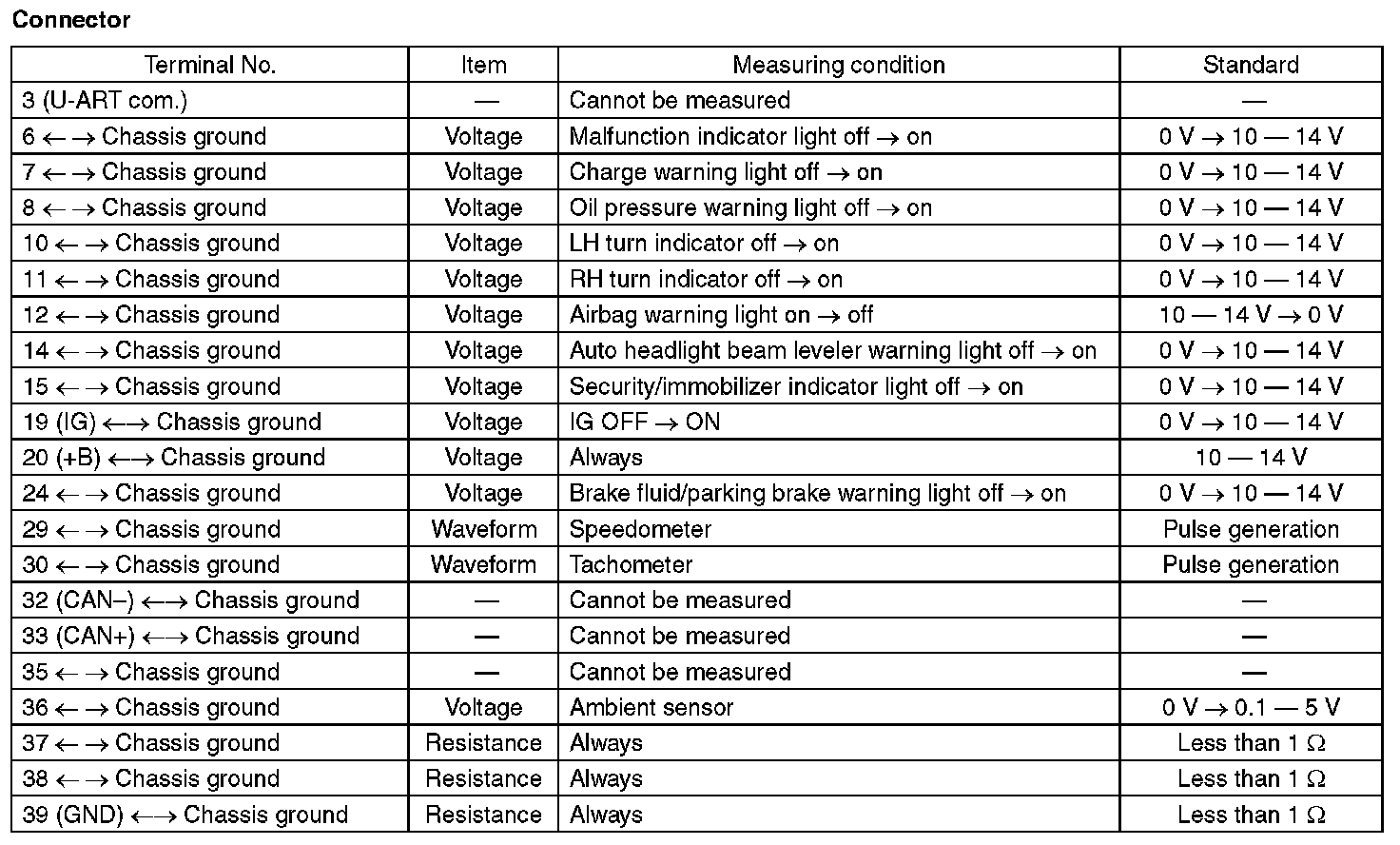

Connector
