CVT

Transmission Control Module (TCM) I/O Signal

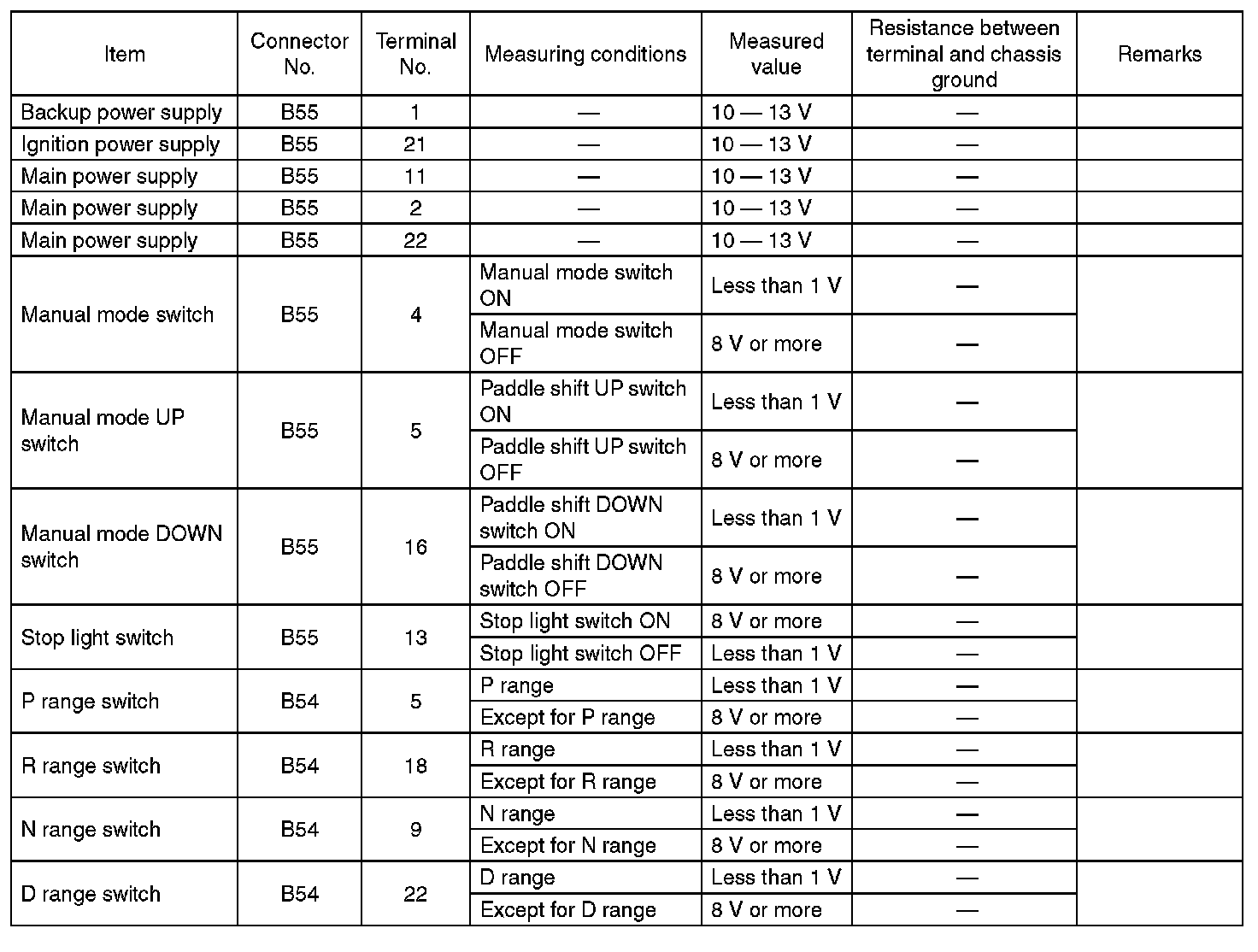

ELECTRICAL SPECIFICATION

NOTE:
Measure after warming up.

WAVEFORM

SENSOR

SOLENOID
