AT Shift Lock Control System

AT Shift Lock Control System

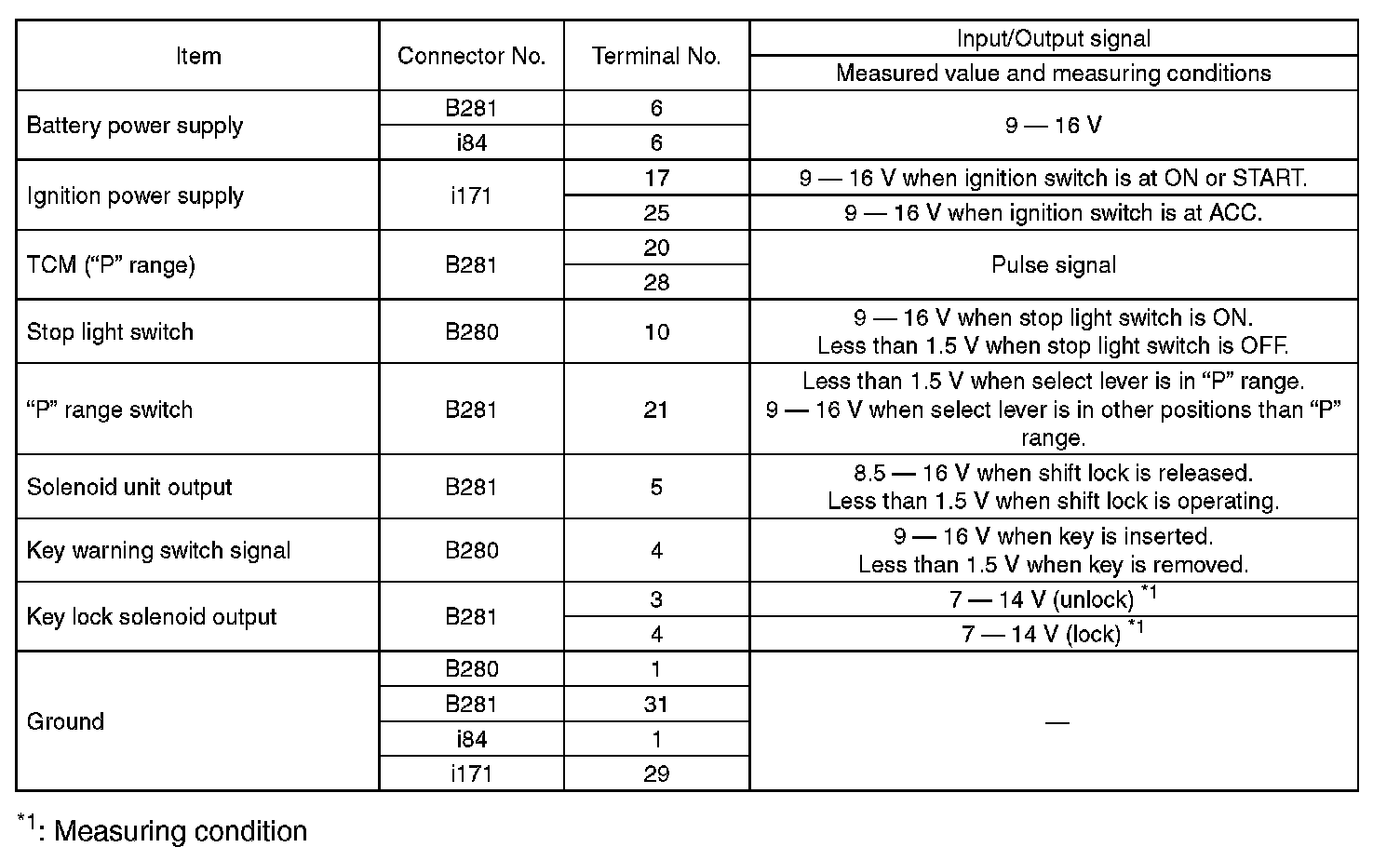

ELECTRICAL SPECIFICATION











Output signal for key lock solenoid (unlock)





Output signal for key lock solenoid (lock)
