Turn Signals: Service and Repair

Side Turn Signal Light Assembly

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the mirror.
3. Remove the scalp cap.
4. Remove the side turn signal light assembly.

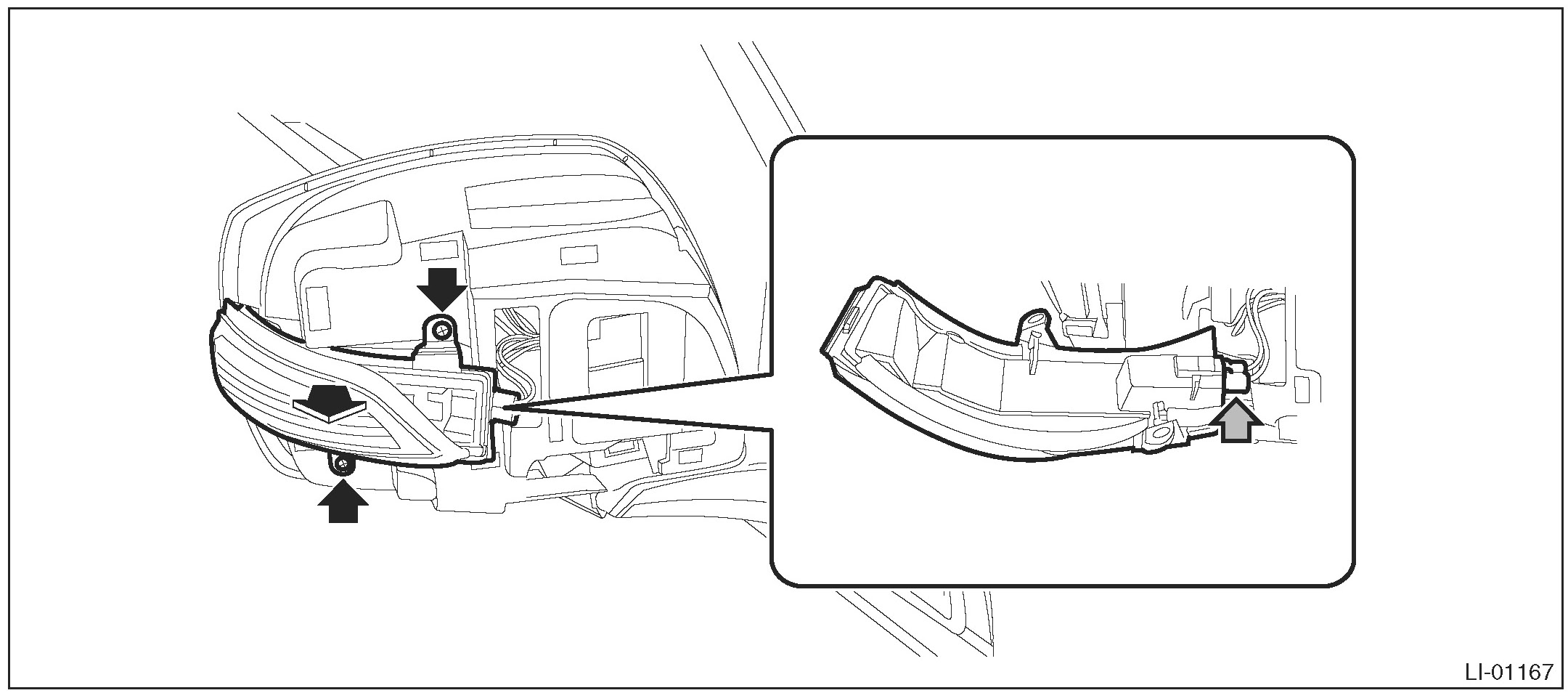

1. Remove the screws and pull out the side turn signal light assembly.
2. Disconnect the connector and remove the side turn signal light assembly.






INSTALLATION
Install each part in the reverse order of removal.
