Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

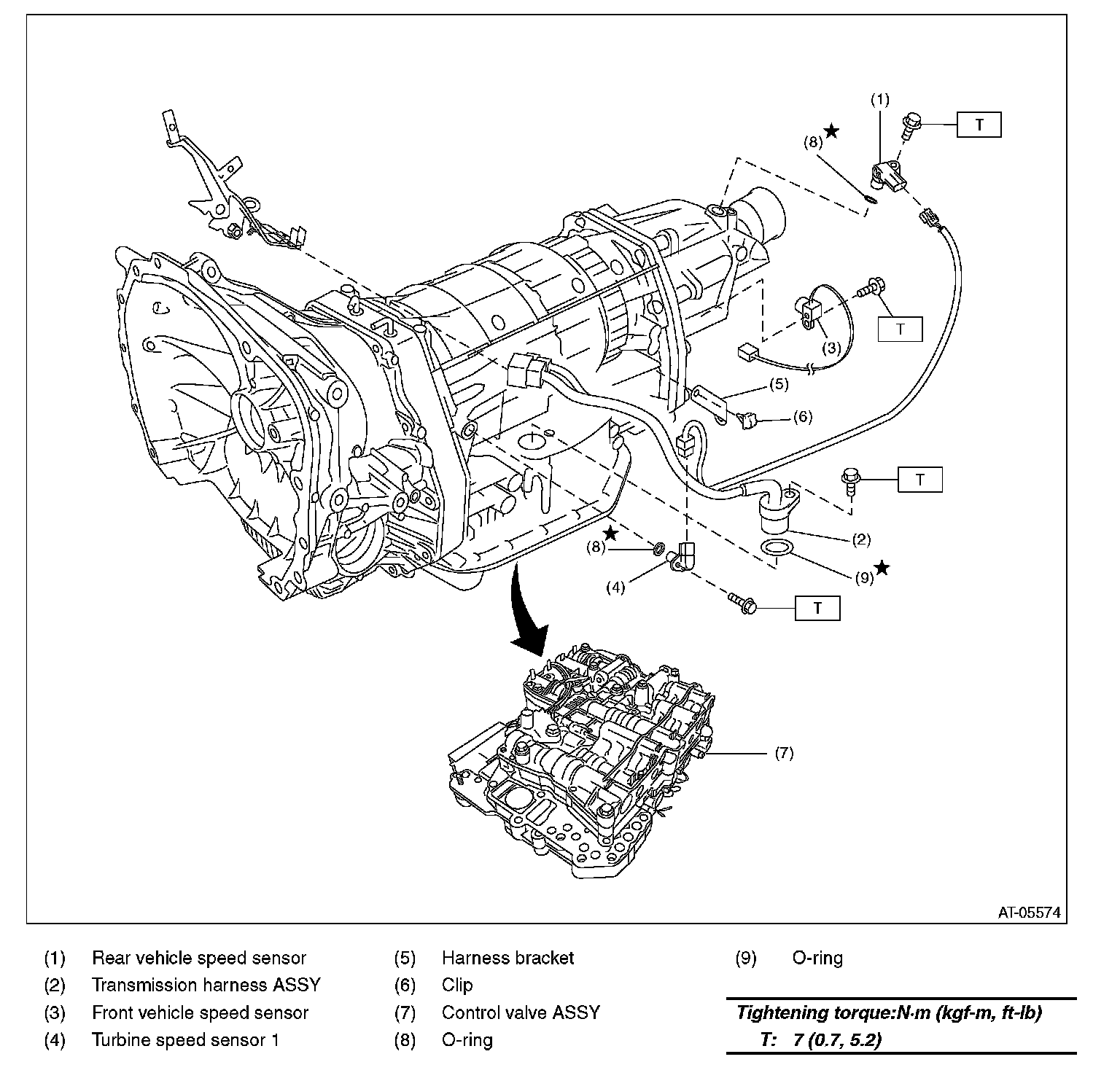

Control Valve & Transmission Harness
Control Valve & Transmission Harness
CONTROL VALVE & TRANSMISSION HARNESS
