Engine Lubrication System - Mechanism & Function (H4DOTC)
>>
Engine Oil Flow
Engine Oil Flow

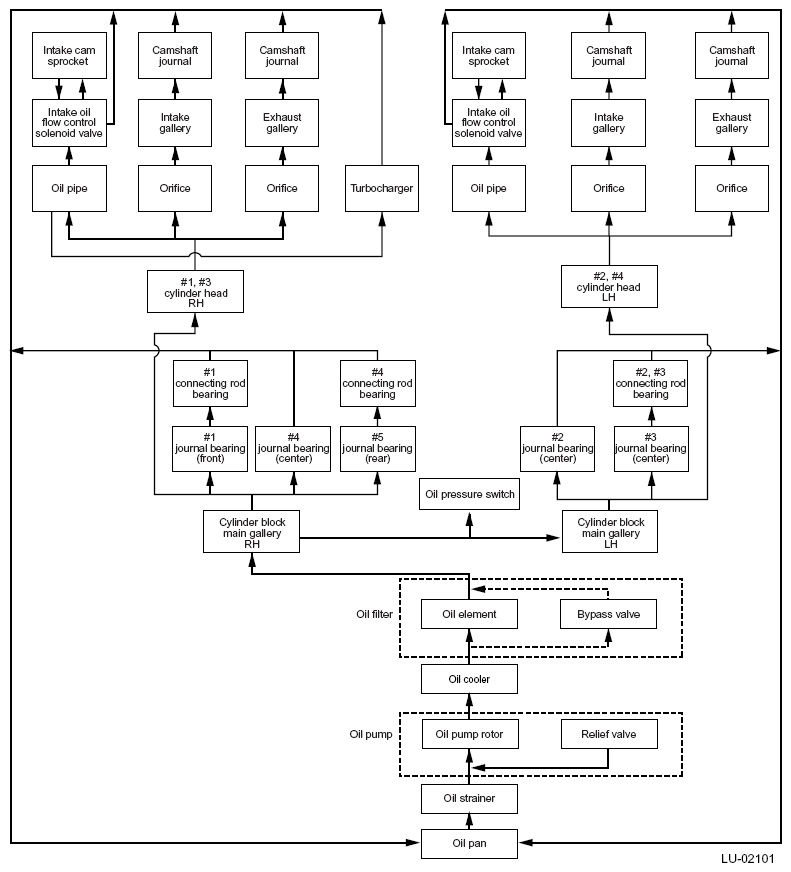

Fig 1: Engine Oil Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
