Home >> Subaru >> 2012 >> Outback Base, Standard Trans >> Repair and Diagnosis >> Electrical >> Gauges >> Instrumentation/Driver Info - Mechanism & Function >> Clock Unit >> Schematic Drawings

Schematic Drawings

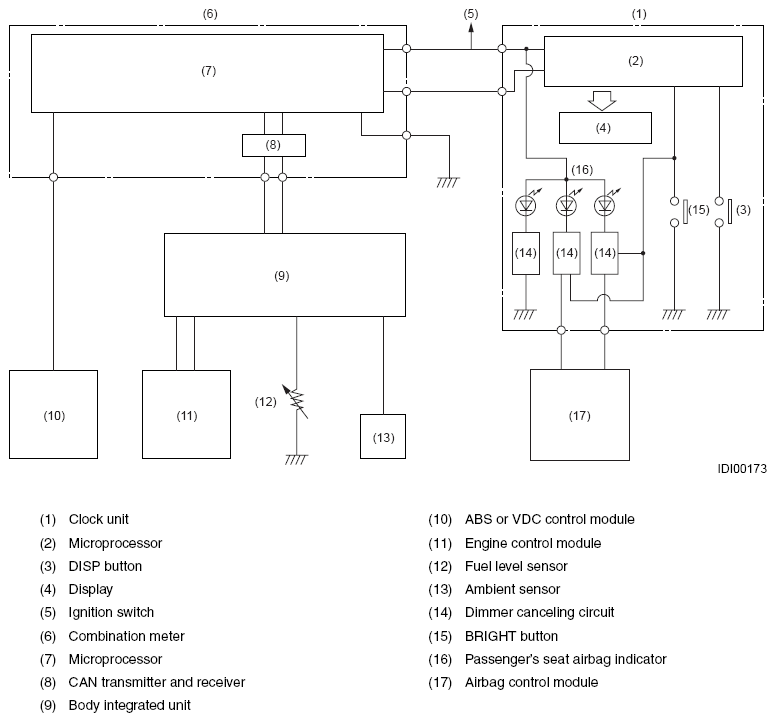

Fig 1: Clock Unit - Schematic

G08260521

Courtesy of SUBARU OF AMERICA, INC.
