Engine Diagnostics (H4DOTC): Electrical Component Location: Location: Sensor

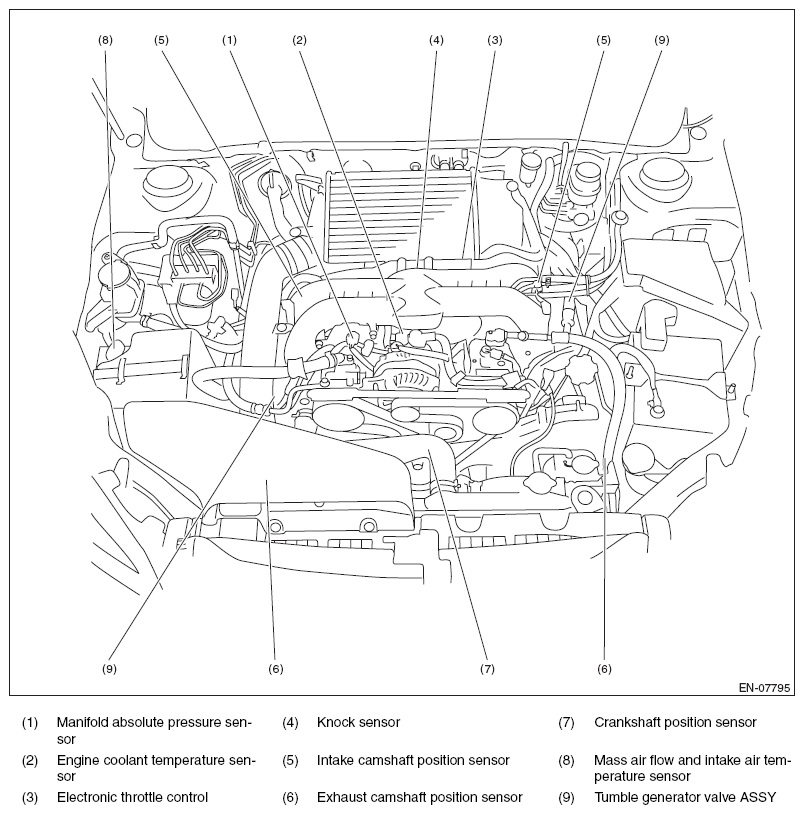

Fig 1: Identifying Engine Sensors

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Connectors

Courtesy of SUBARU OF AMERICA, INC.

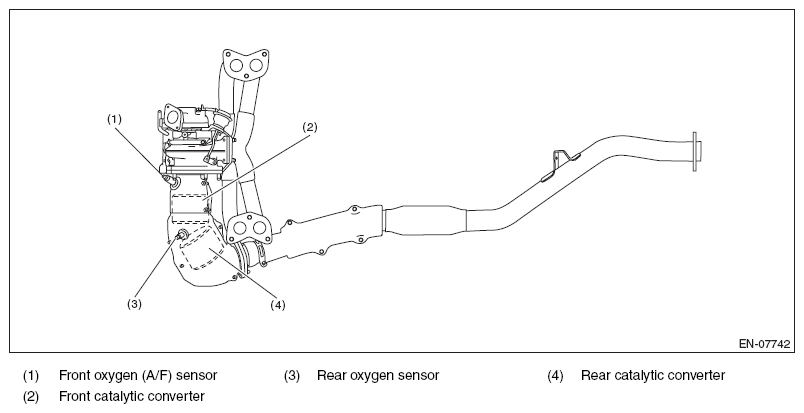

Fig 3: Identifying Oxygen Sensors, Front And Rear Catalytic Converter

Courtesy of SUBARU OF AMERICA, INC.

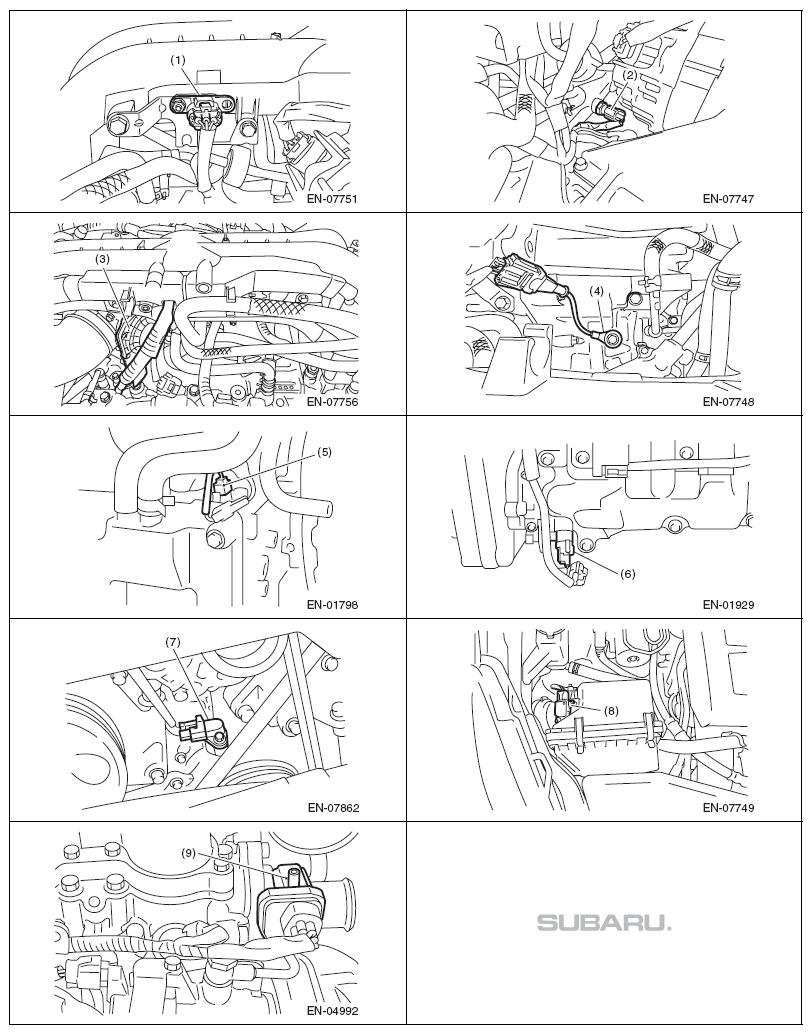

Fig 4: Identifying Oxygen Sensors

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Fuel Sensors

Courtesy of SUBARU OF AMERICA, INC.

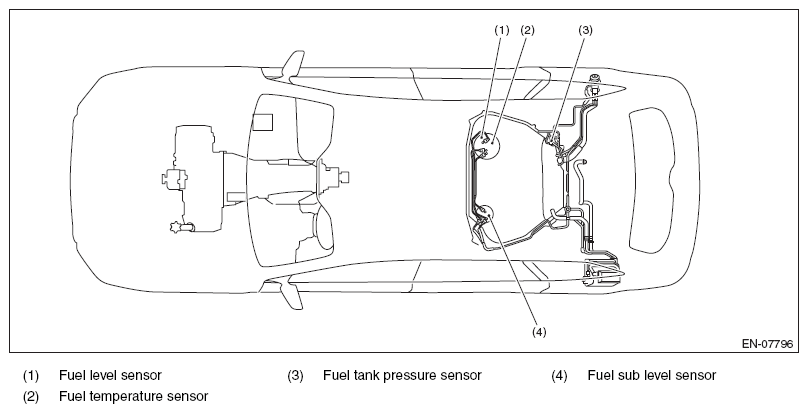

Fig 6: Identifying Fuel Sensors

Courtesy of SUBARU OF AMERICA, INC.
