Procedure

CAN Communication Circuit Check

PROCEDURE

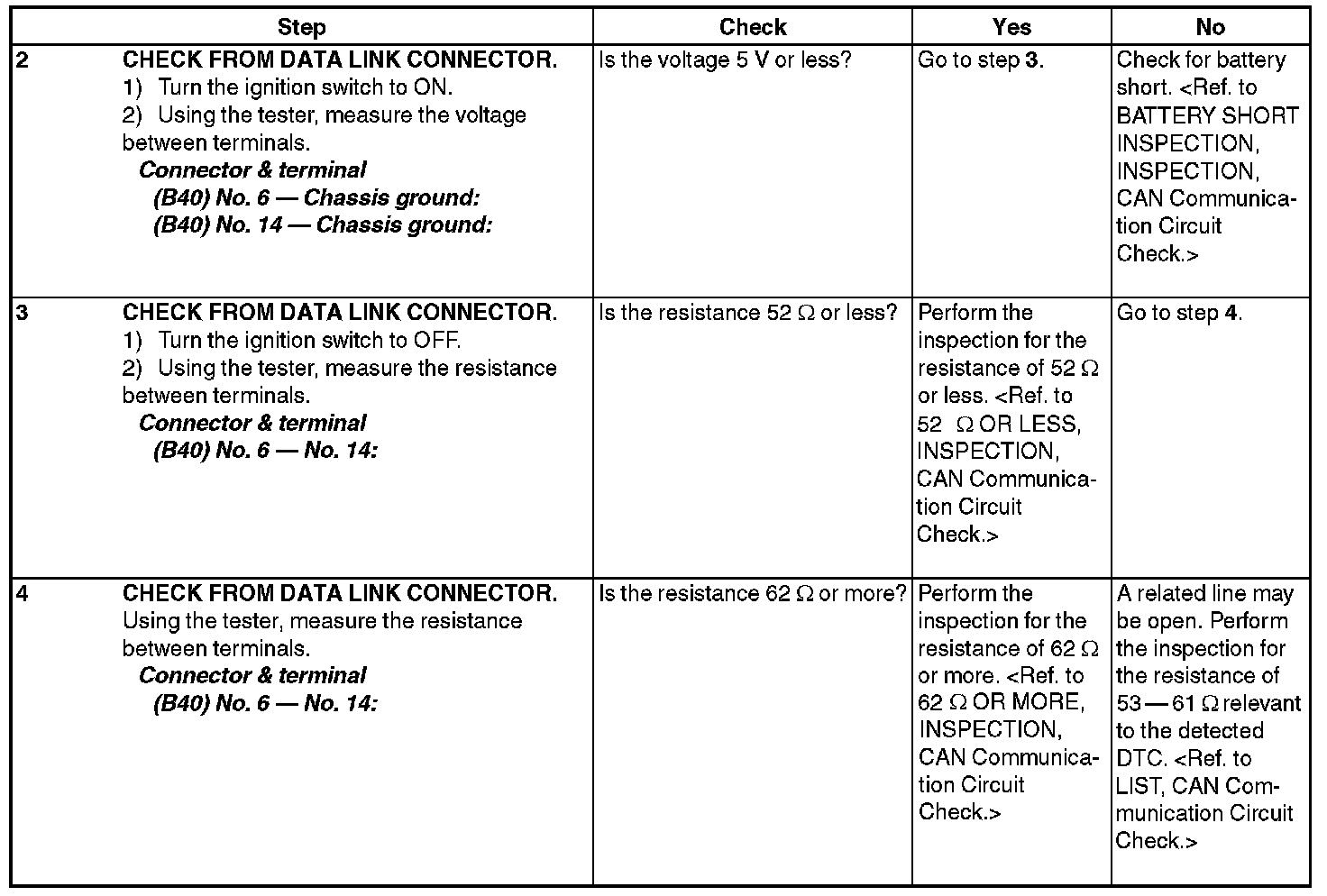

NOTE: When measuring the resistance of CAN communication circuit, measure it in sleep status.
To be in the sleep status, turn the ignition switch OFF, stop the key and switch operations, keep all the doors, trunk and rear gate closed, and then left them untouched for one minute or more.

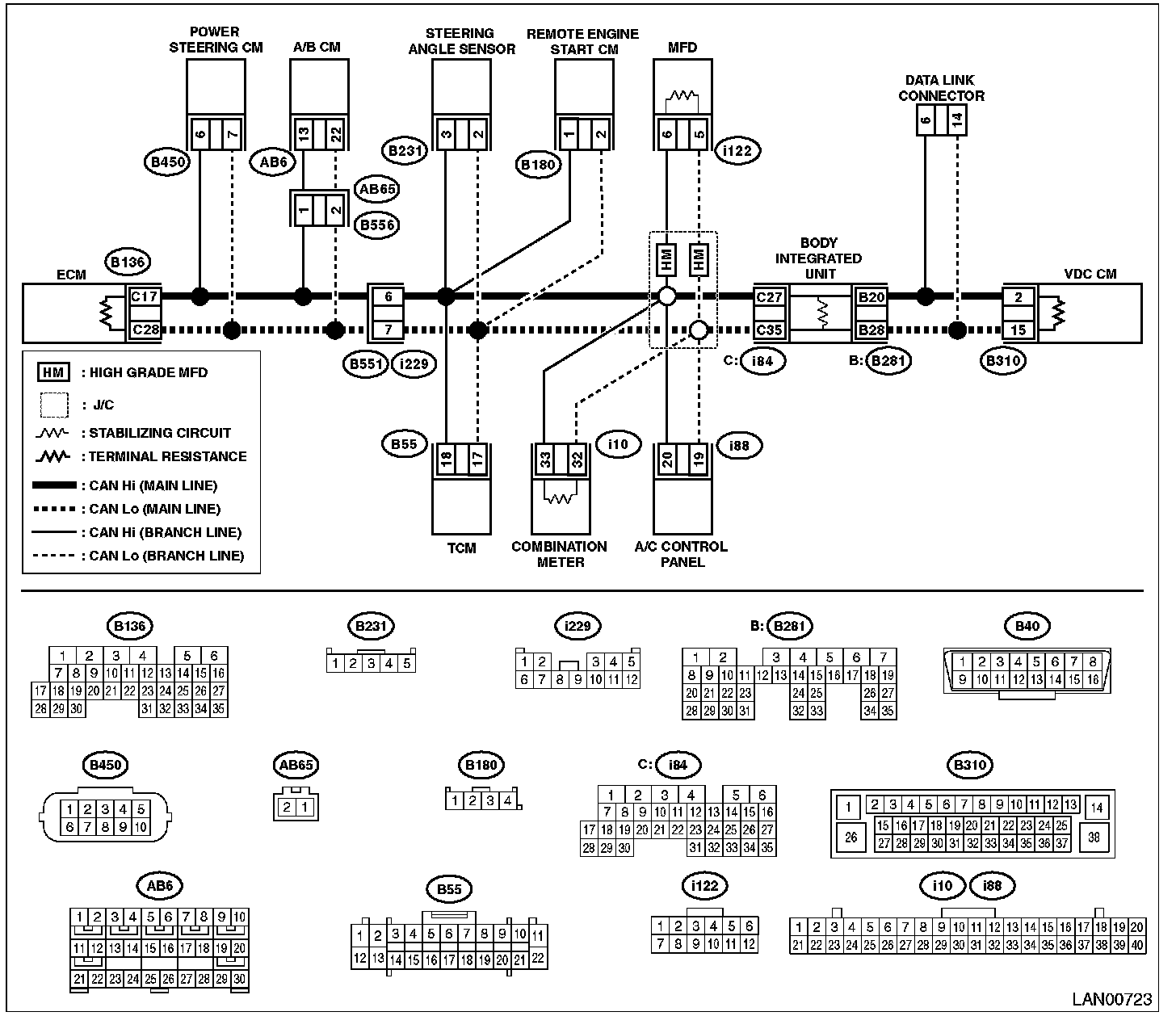

WIRING DIAGRAM:
