Subaru
>>
2012
>>
Impreza F4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>

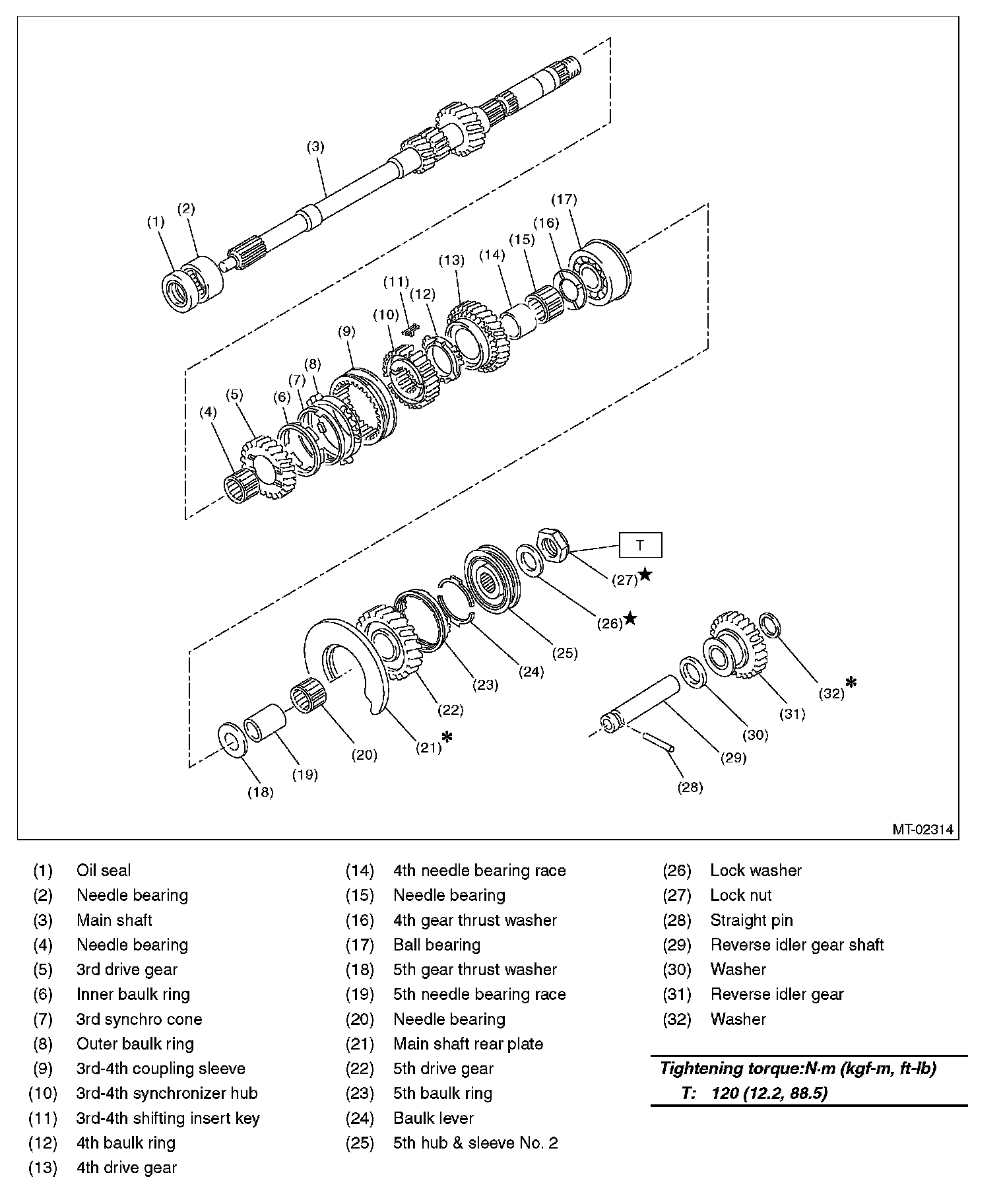

Main Shaft Assembly
Main Shaft Assembly
MAIN SHAFT FOR SINGLE-RANGE
