Heating and Air Conditioning

General Description

COMPONENT

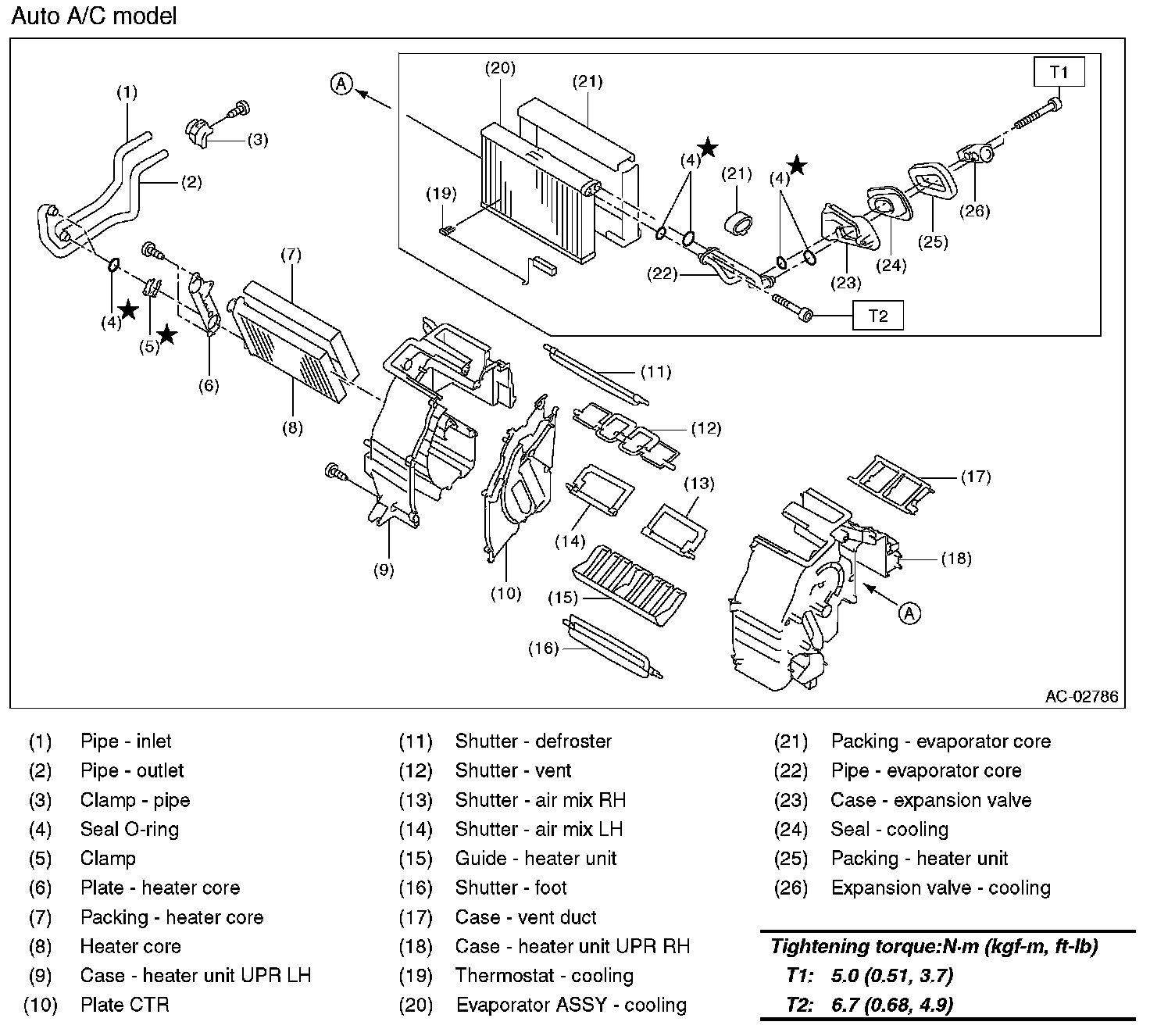

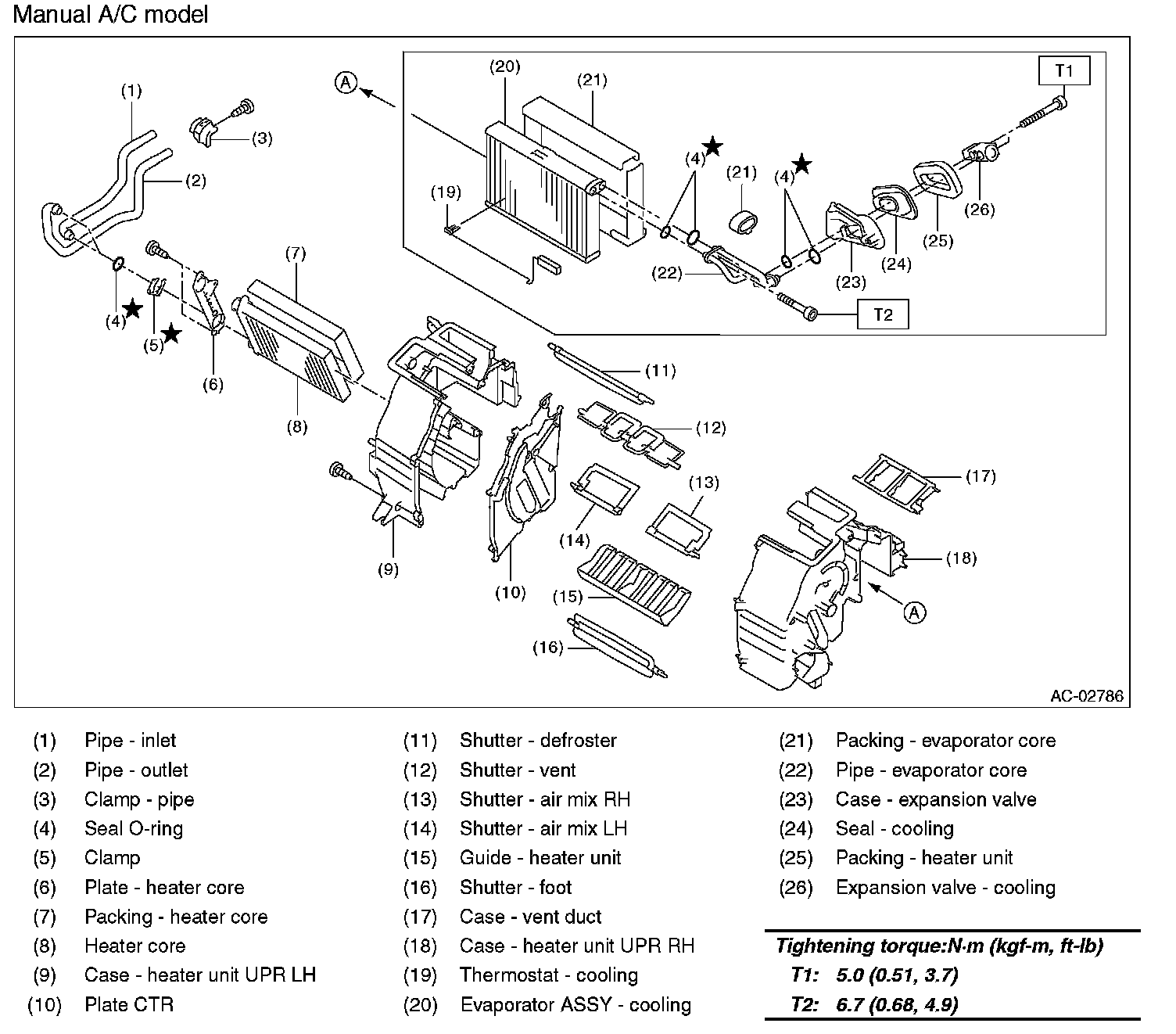

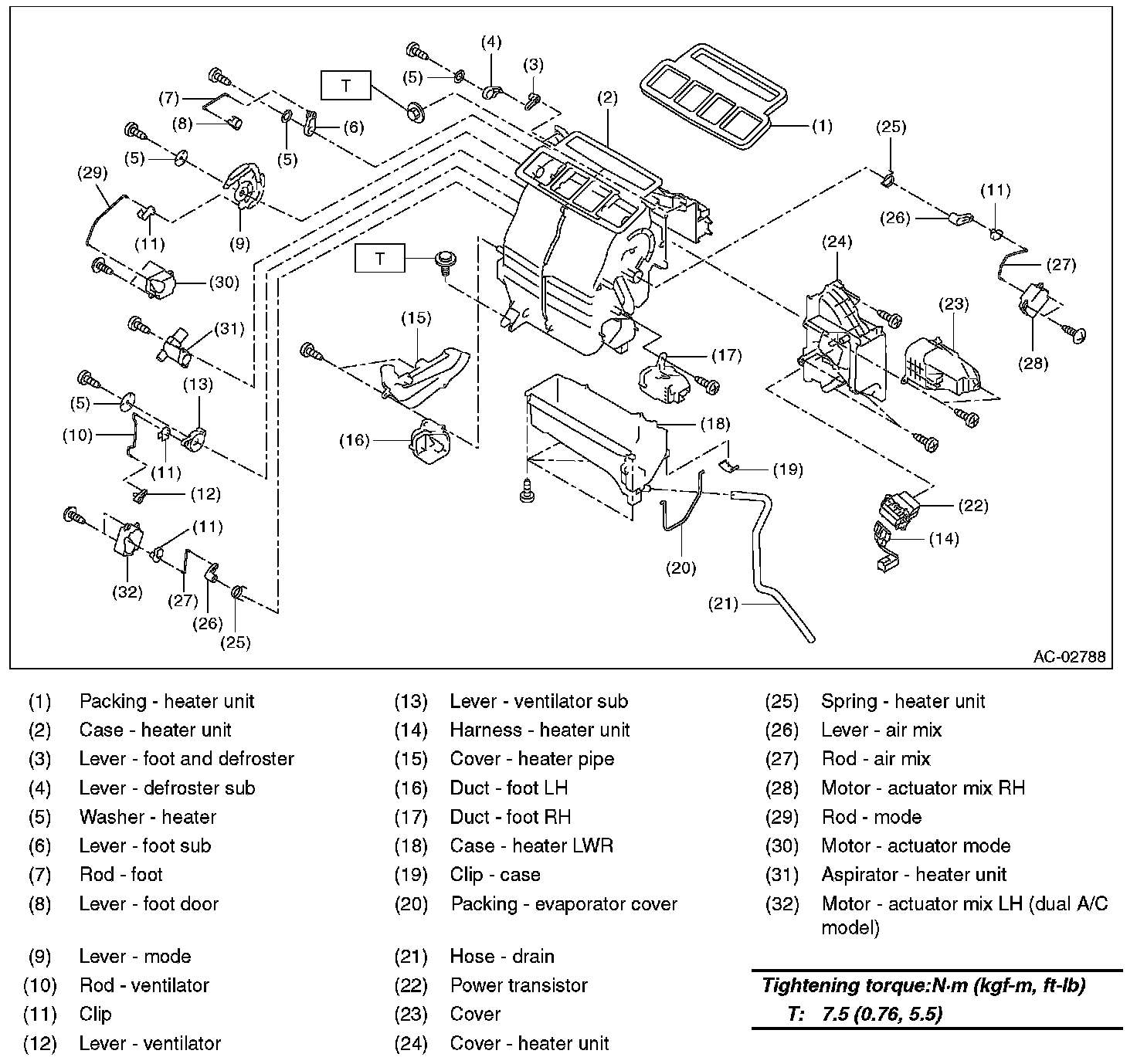

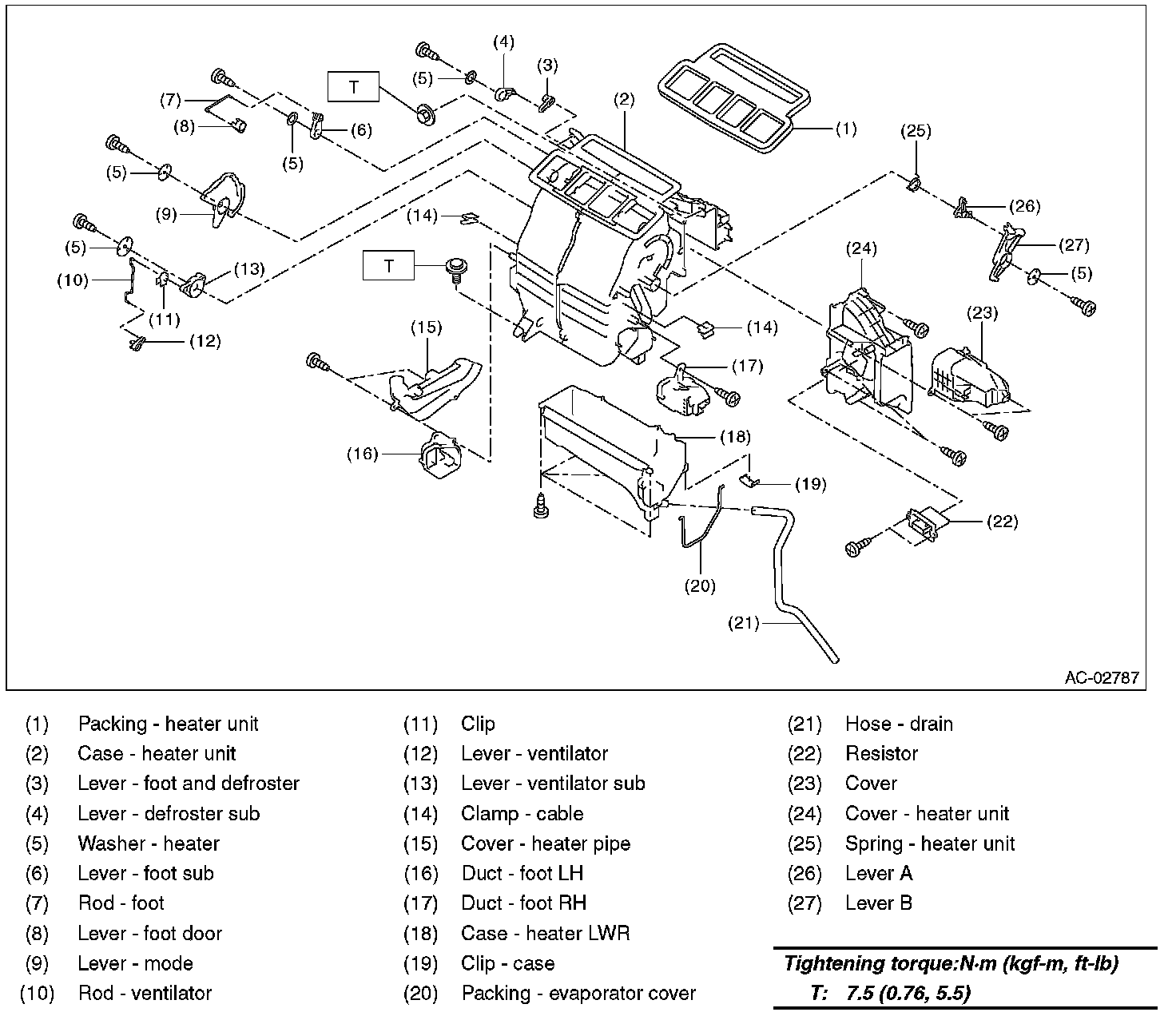

1. HEATER AND COOLING UNIT

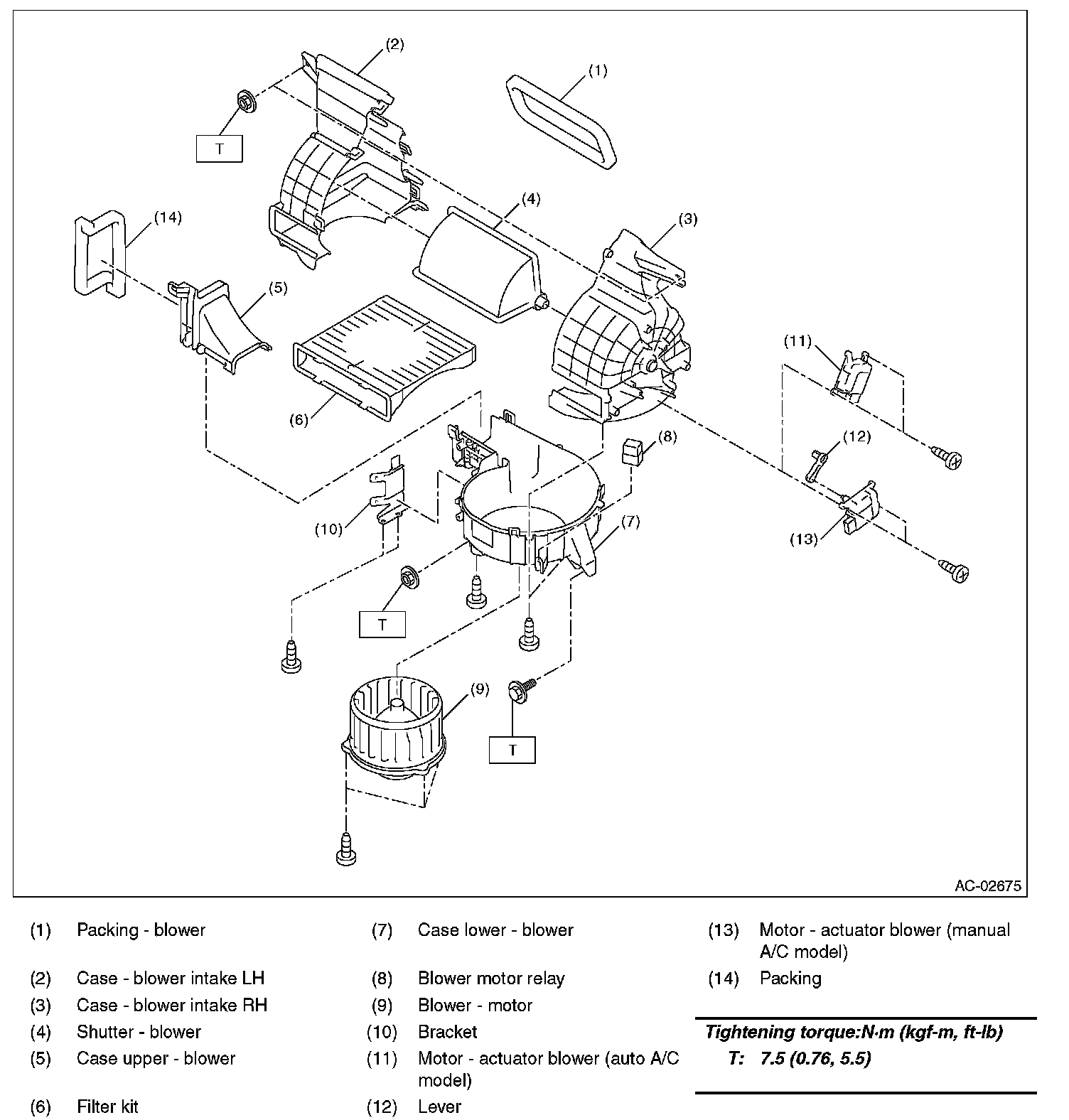

2. BLOWER MOTOR UNIT

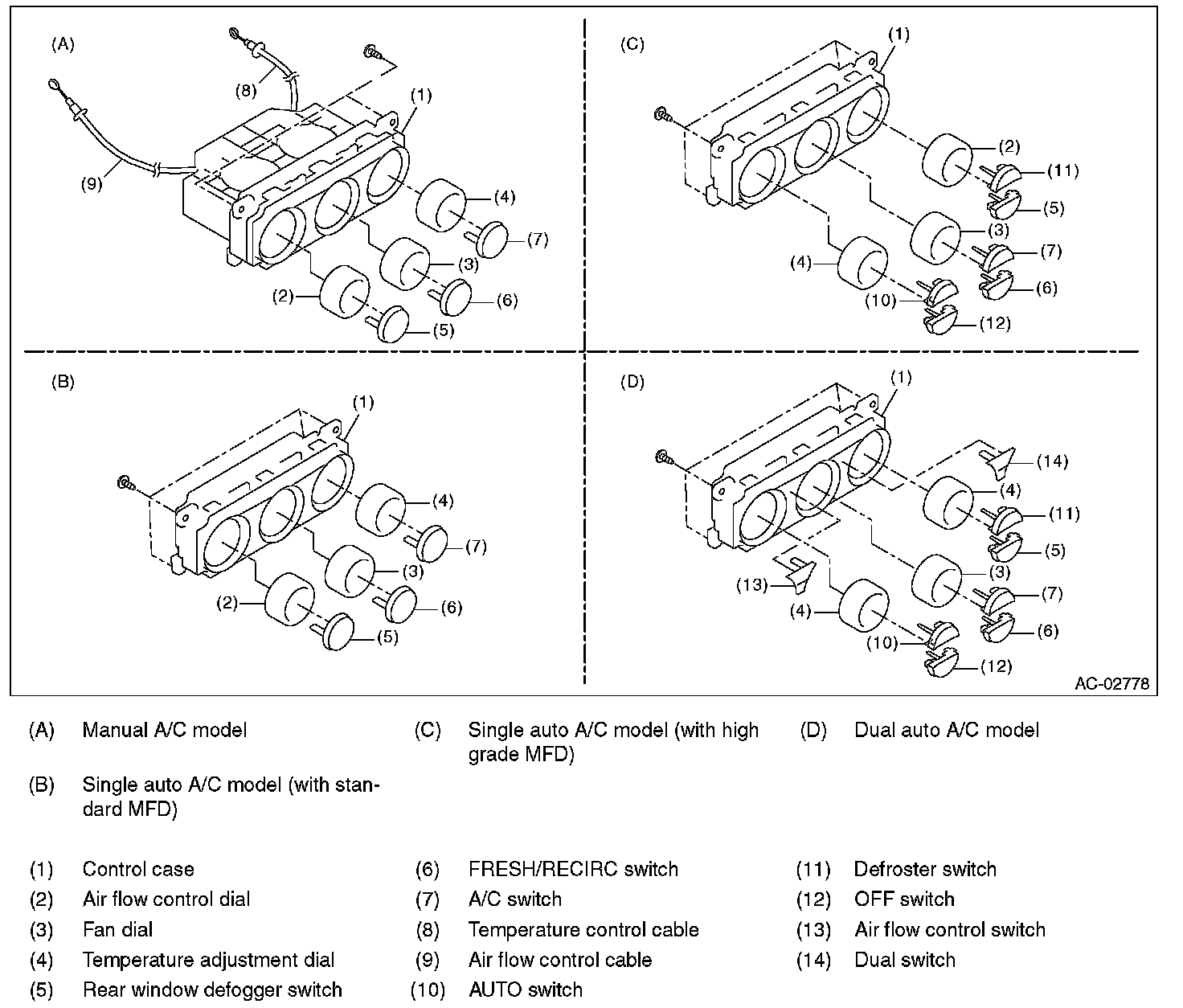

3. CONTROL PANEL






4. AIR CONDITIONING UNIT

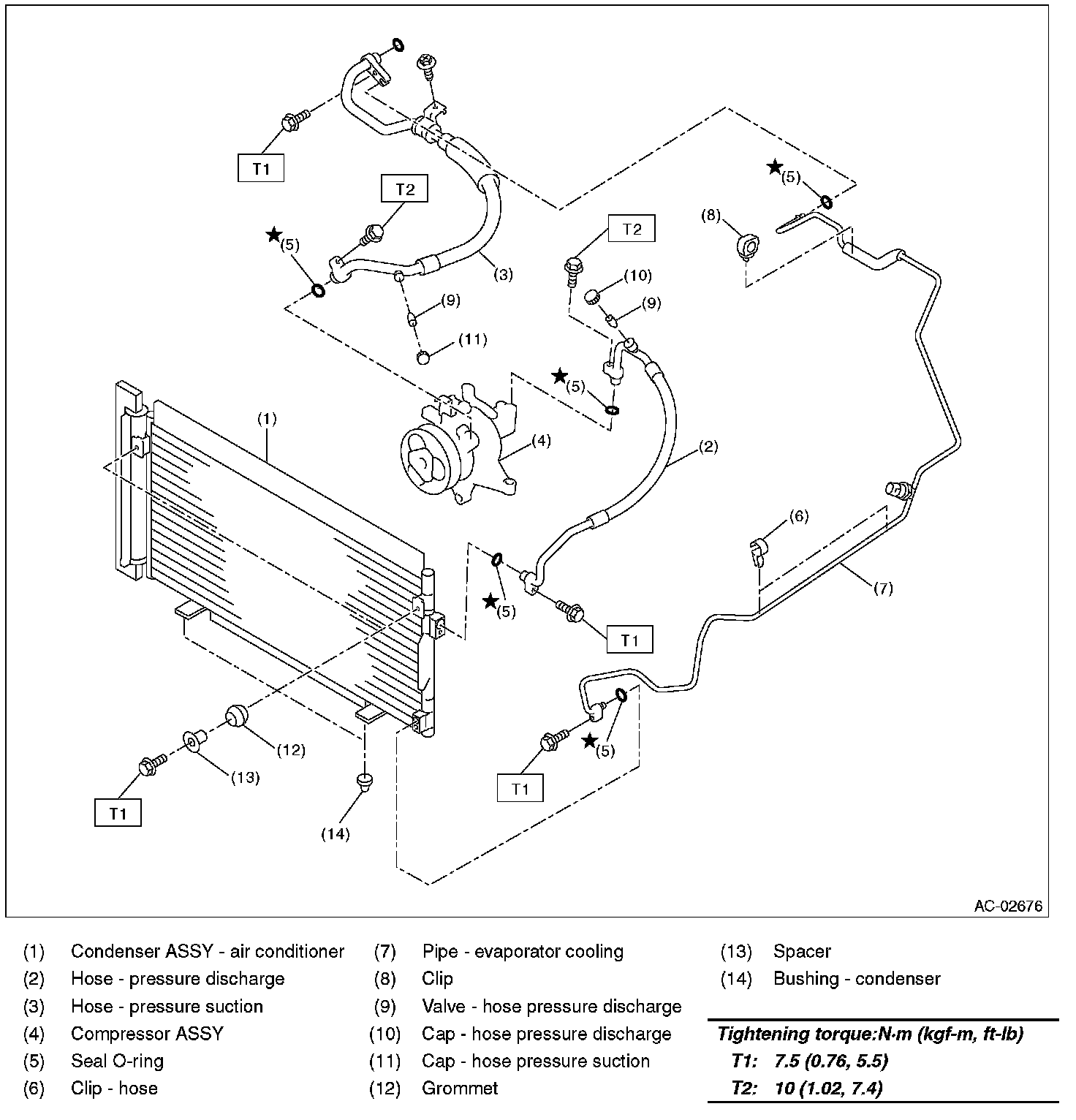

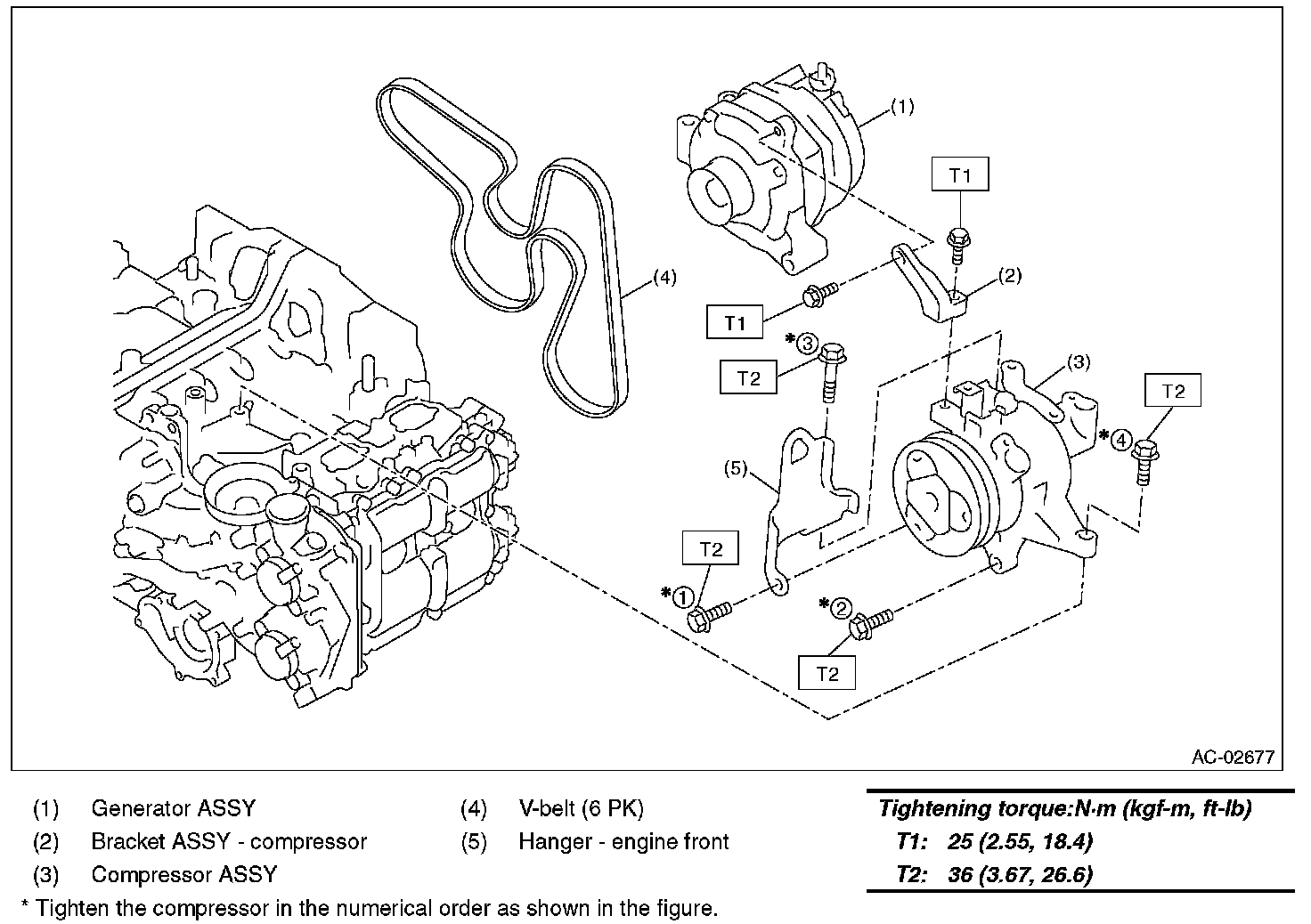

5. COMPRESSOR

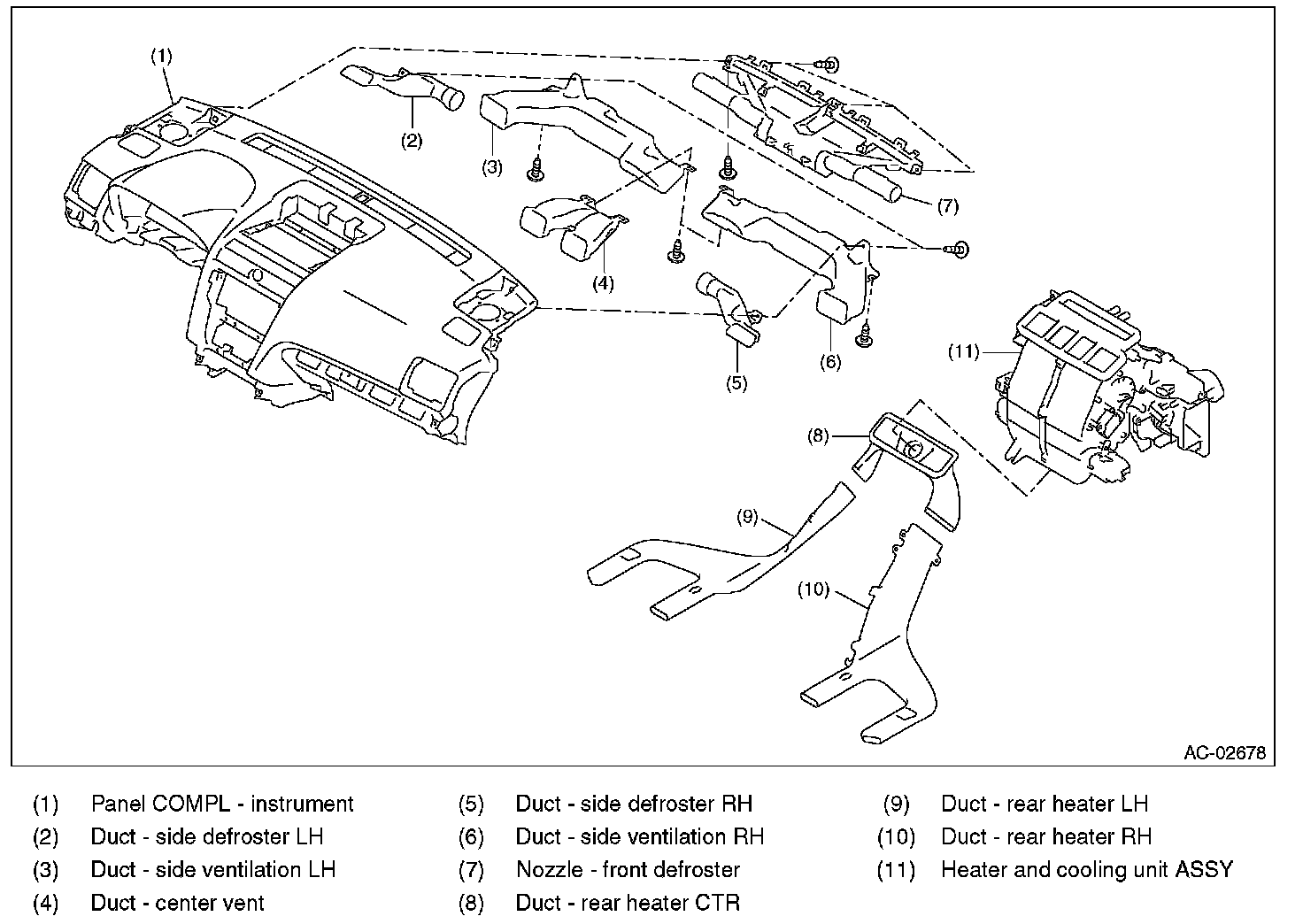

6. HEATER DUCT
