Exhaust Gas Recirculation
Exhaust Gas Recirculation
General Description
COMPONENT

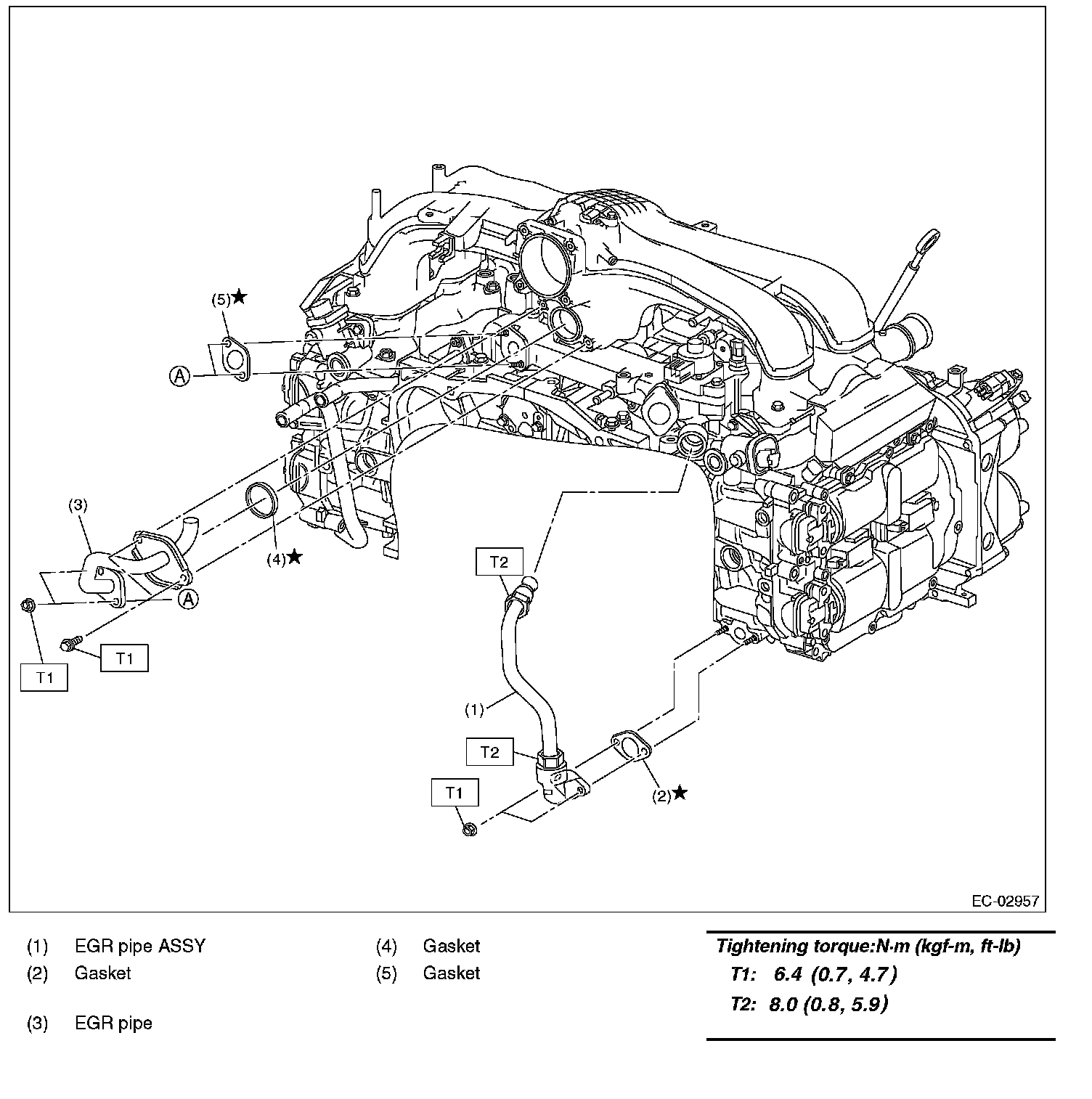

EGR SYSTEM 1

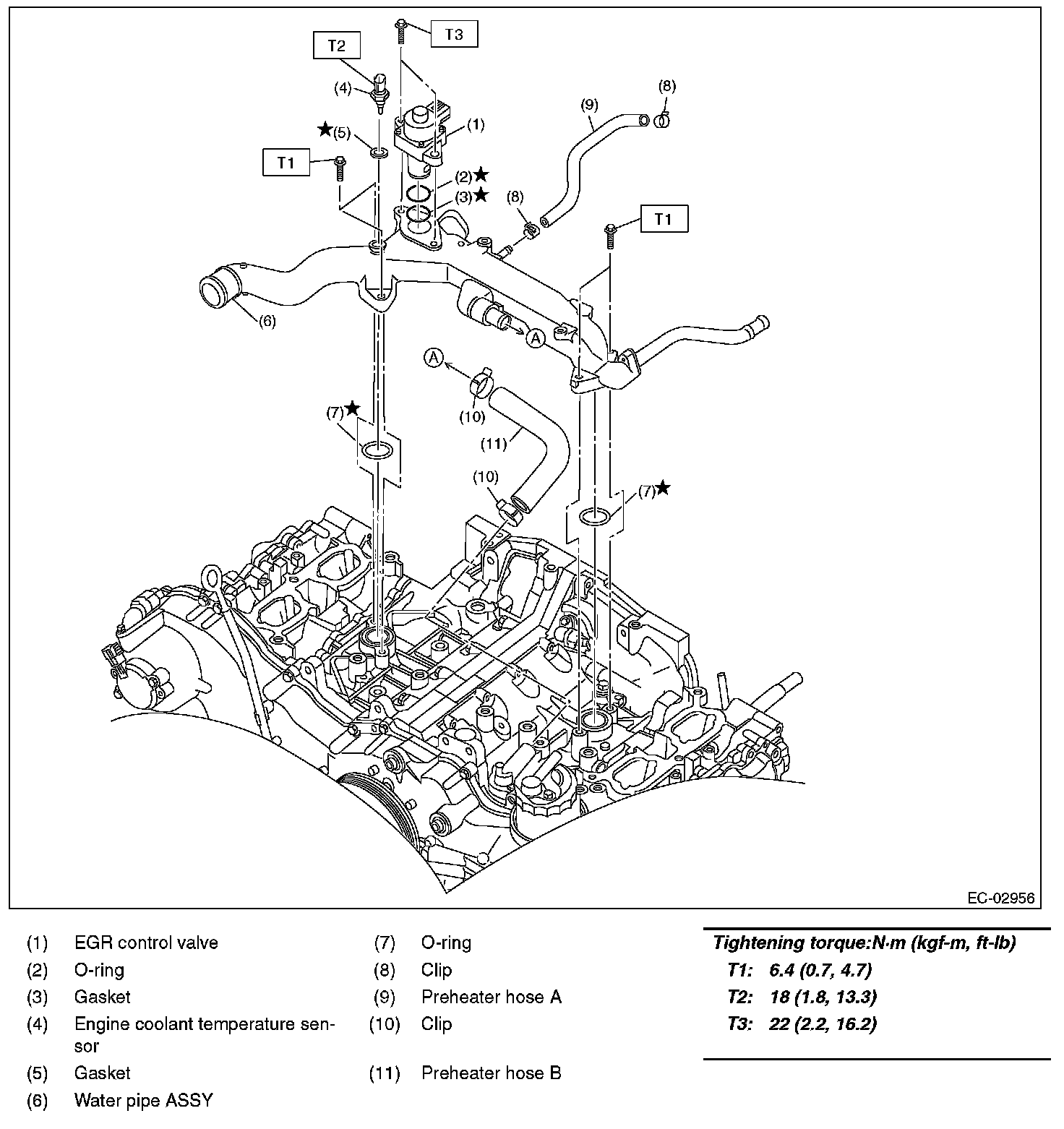

EGR SYSTEM 2
