Communication For Initializing Impossible
DIAGNOSTIC PROCEDURE FOR SUBARU SELECT MONITOR COMMUNICATIONCOMMUNICATION FOR INITIALIZING IMPOSSIBLE
DIAGNOSIS:
Open or short circuit in data link connector
TROUBLE SYMPTOM:
Subaru Select Monitor communication failure

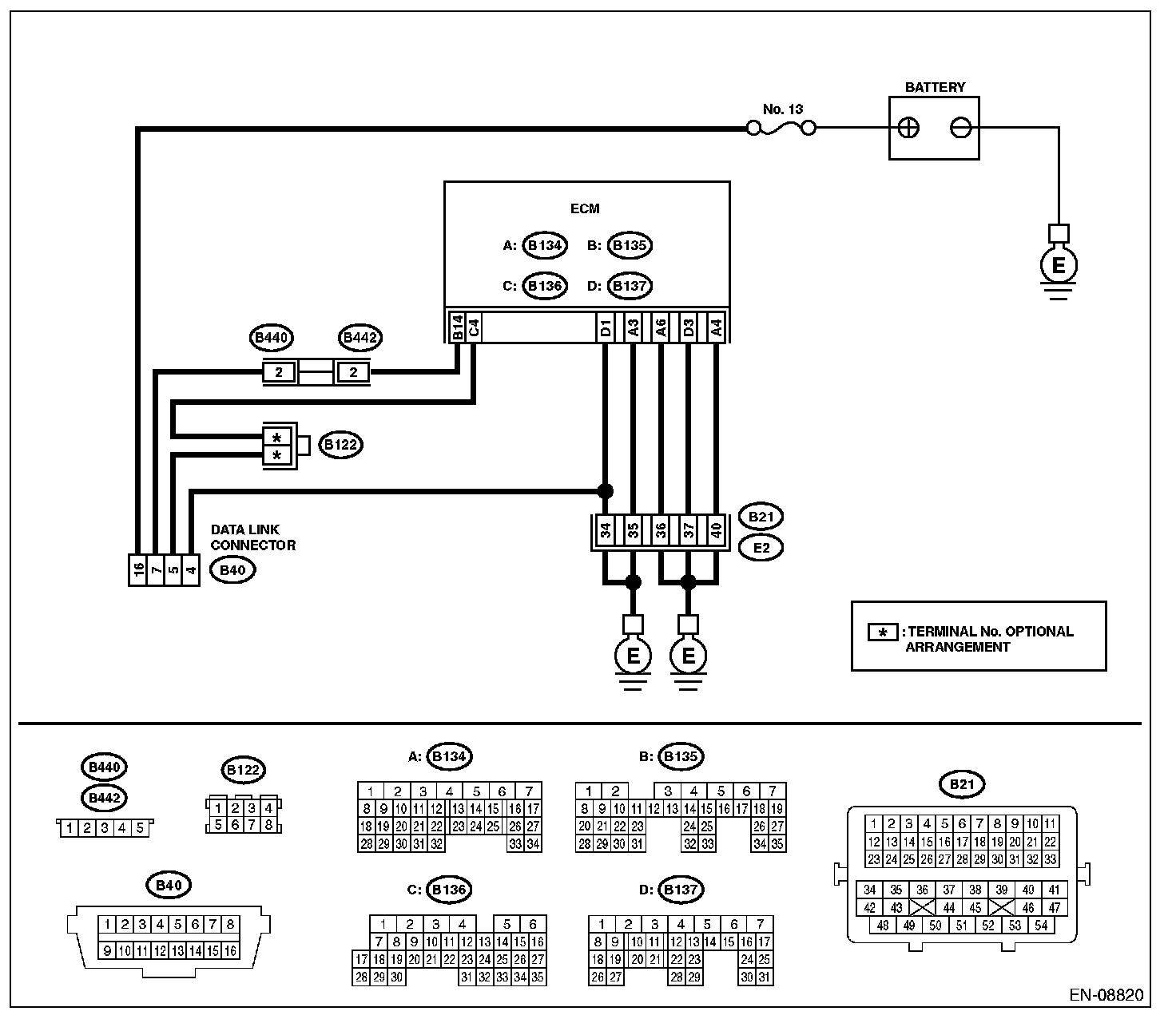

WIRING DIAGRAM:
