Home >> Subaru >> 2012 >> Forester F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seat Belt Systems

Seat Belt Systems

GENERAL DESCRIPTION

COMPONENT

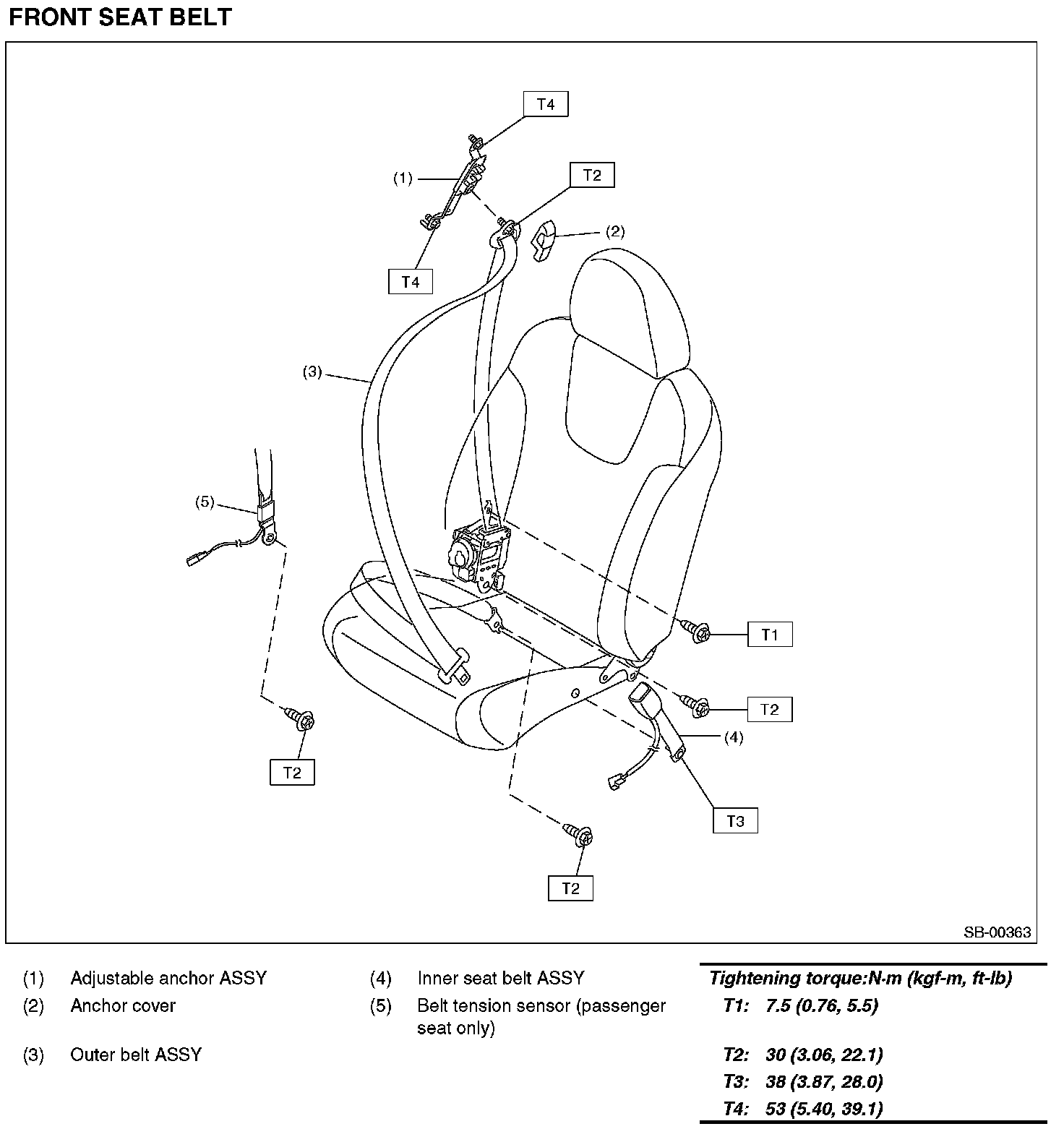

1. FRONT SEAT BELT

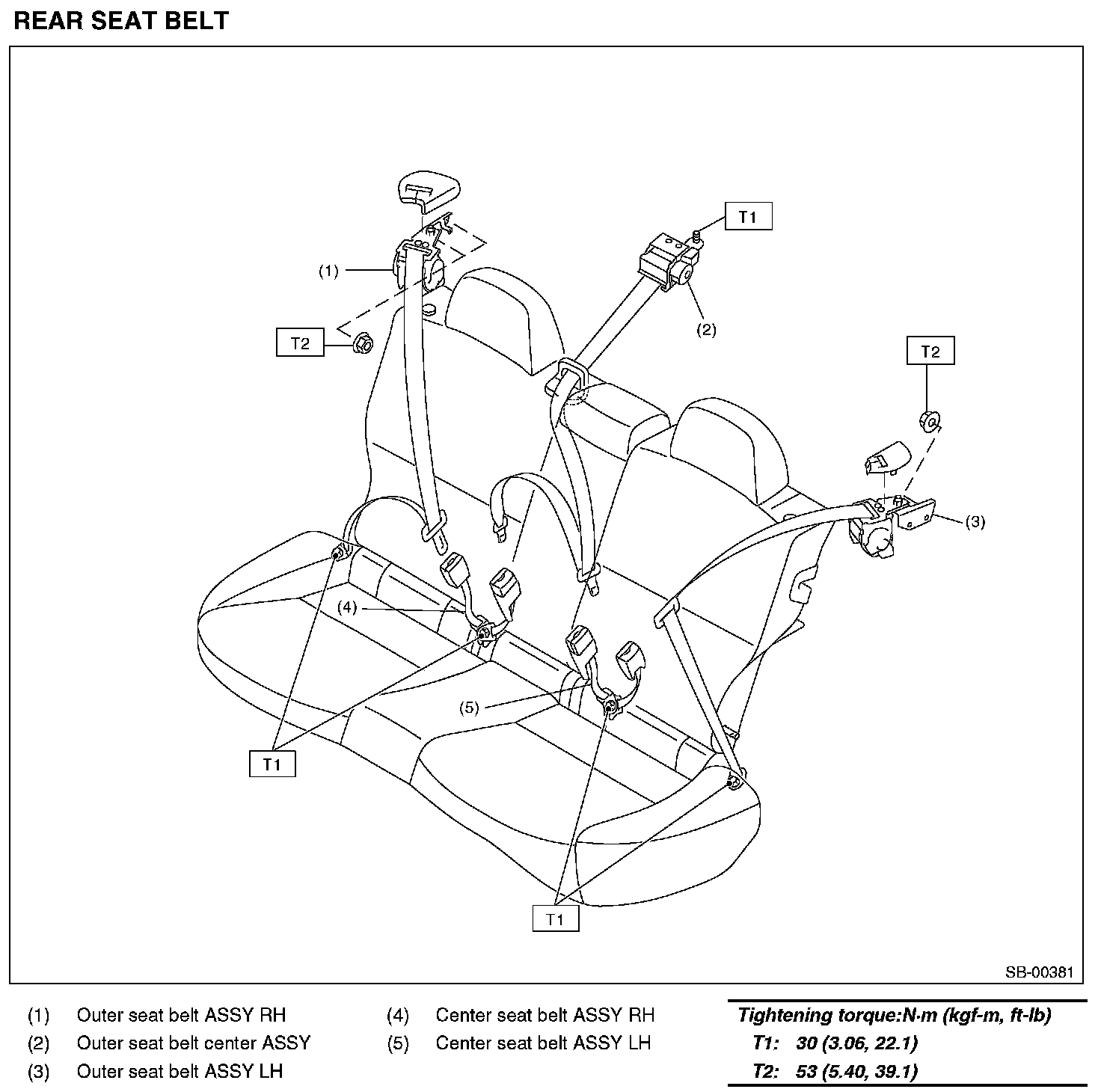

2. REAR SEAT BELT
