Engine (Diagnostics)

ELECTRICAL COMPONENT LOCATION

LOCATION

CONTROL MODULE






SENSOR

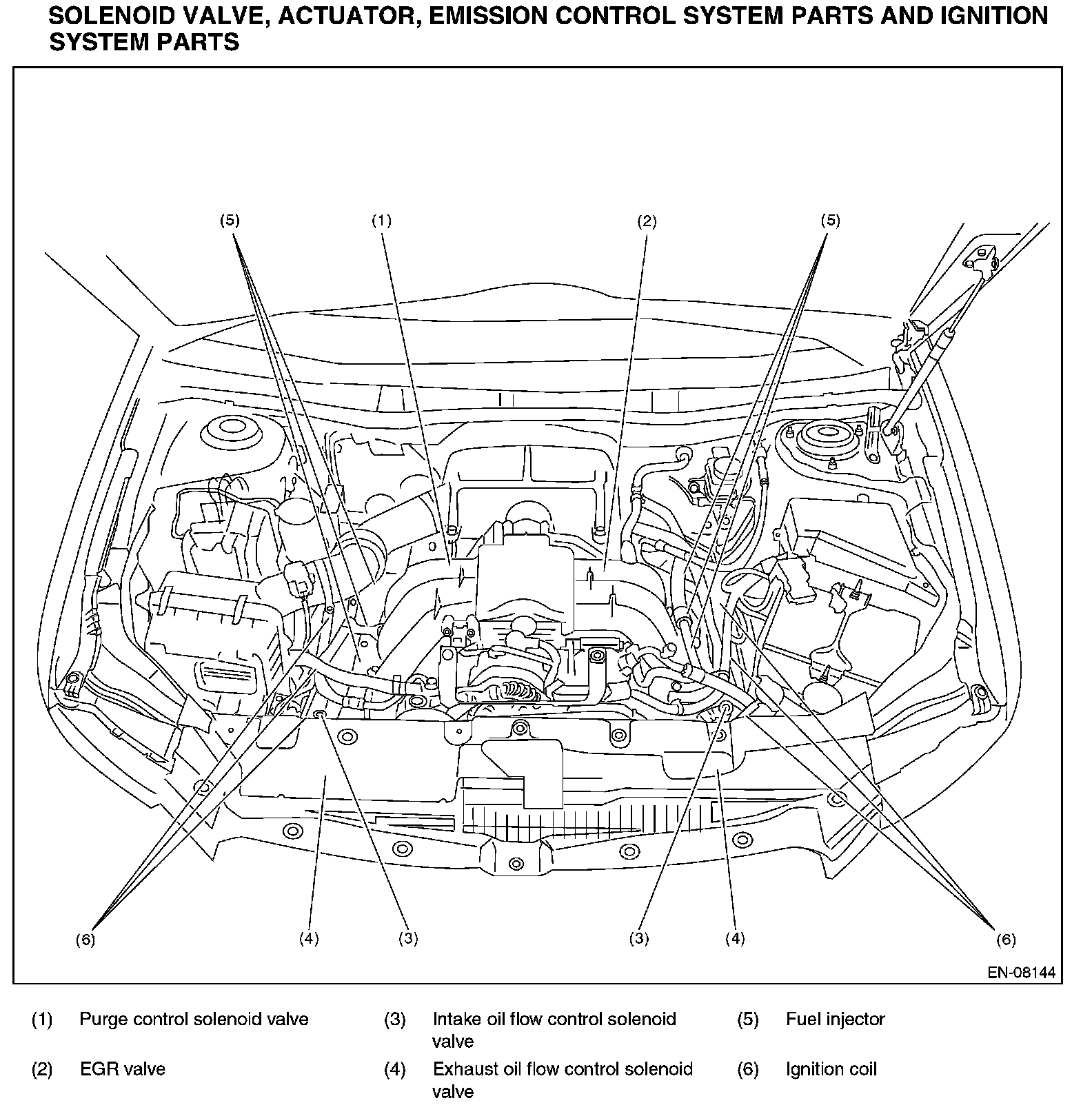

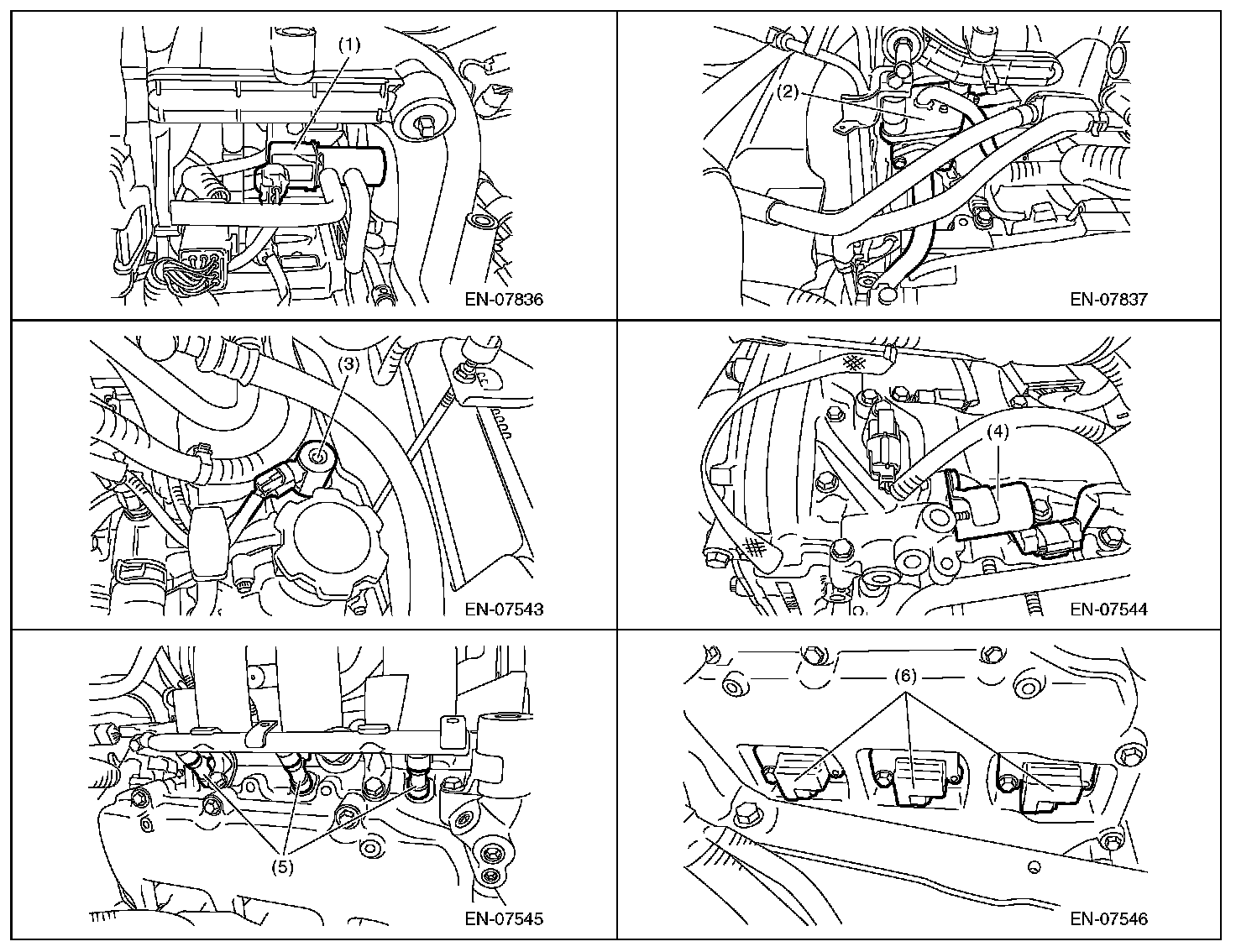

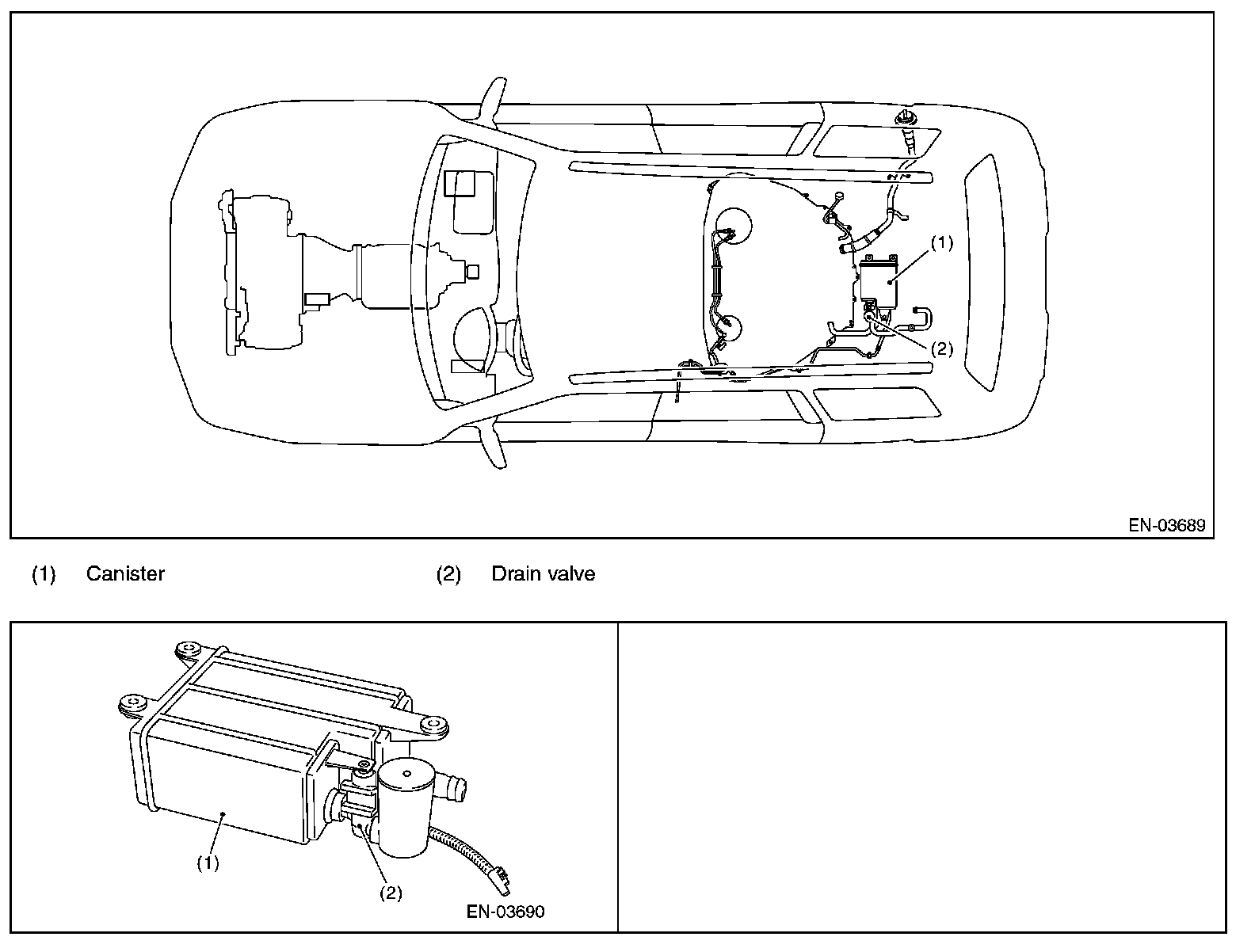

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
