Seat Belt Systems
Seat Belt Systems
General Description

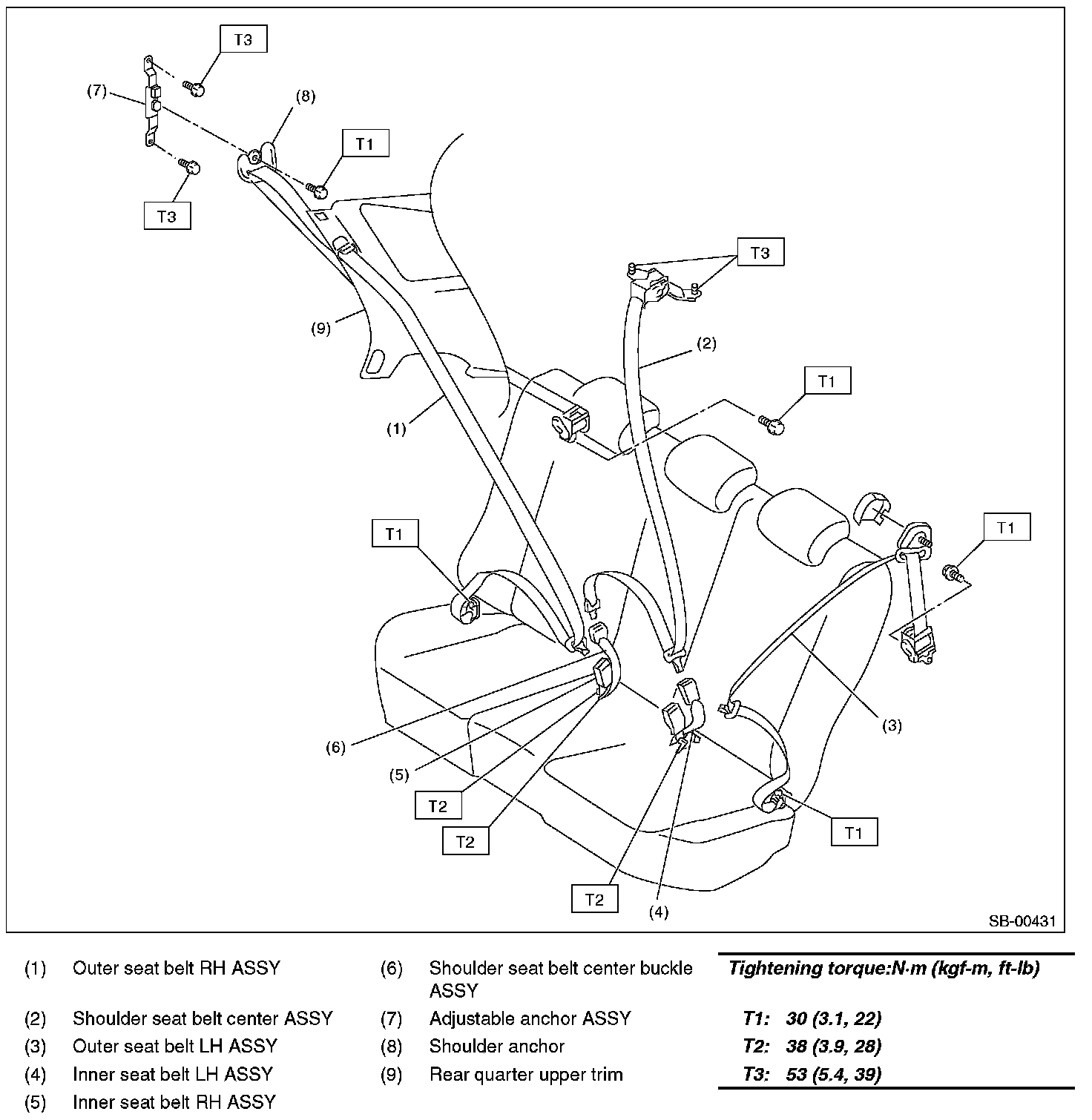

COMPONENT

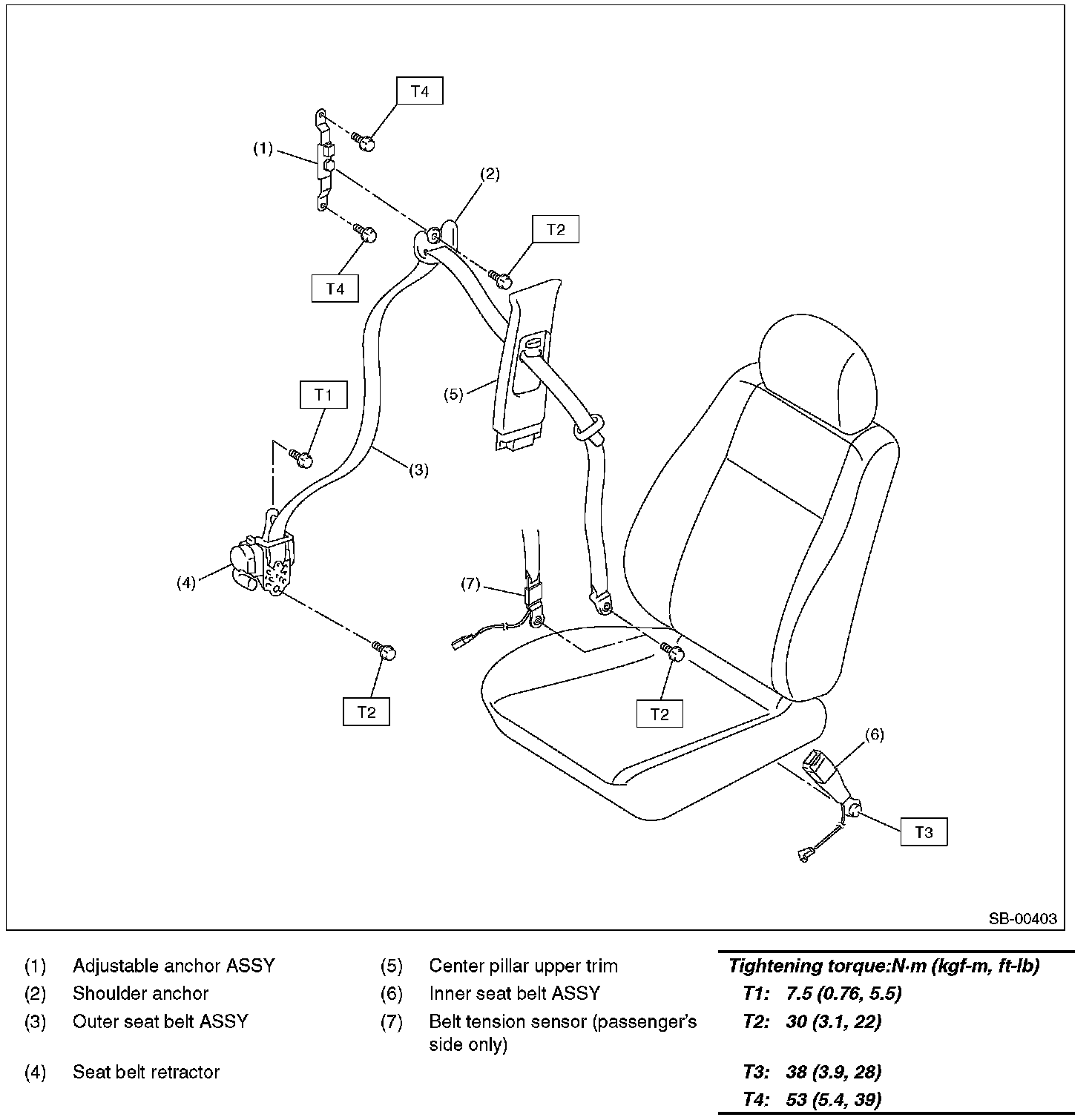

1.
FRONT
SEAT BELT

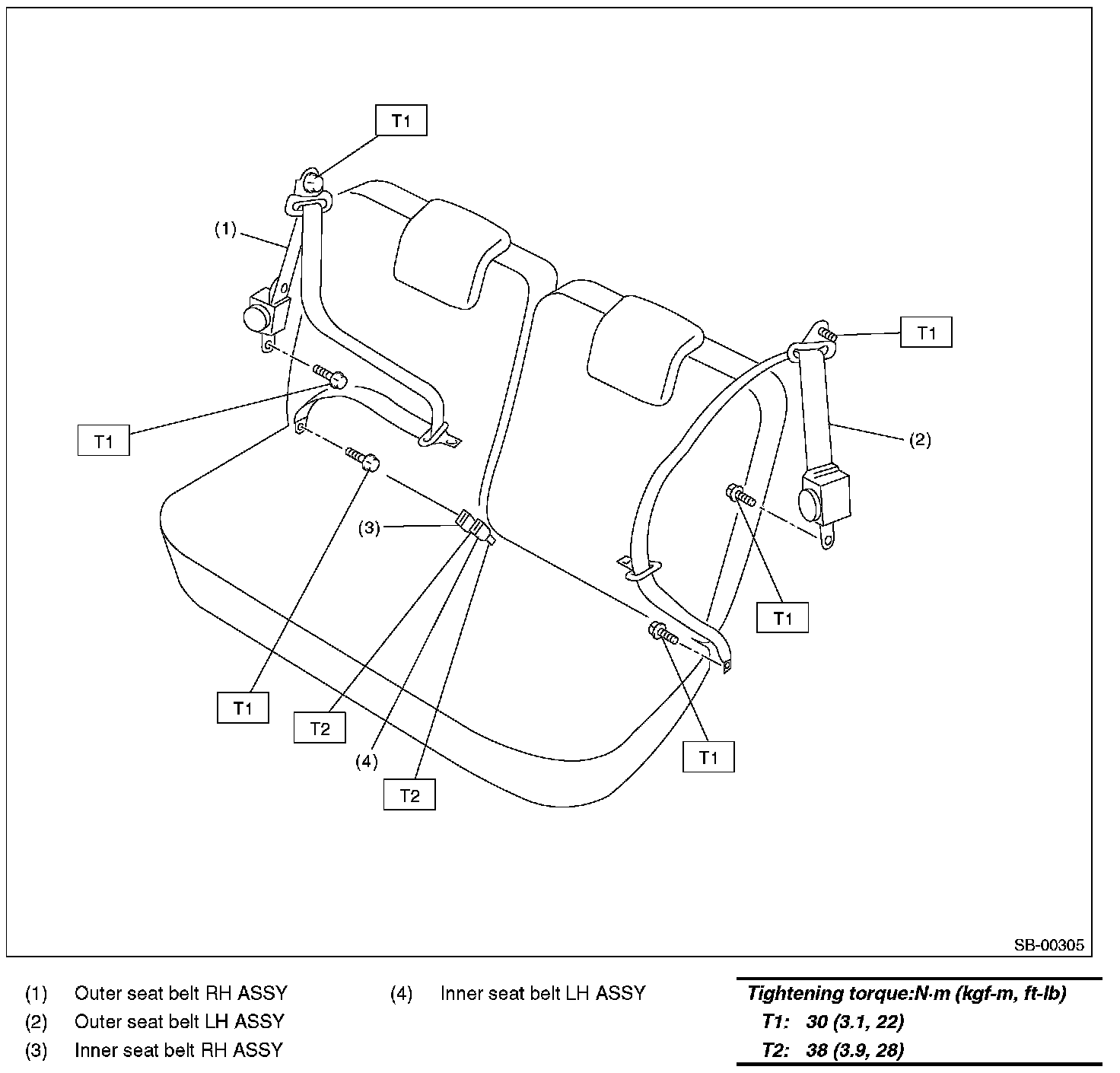

2.
SECOND
SEAT BELT
3.
THIRD
SEAT BELT
