LEMON Manuals
: Even more car manuals for everyone
Home
>>
Subaru
>>
2011
>>
Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R9-R389 & AB17-AB61
R9-R389 & AB17-AB61

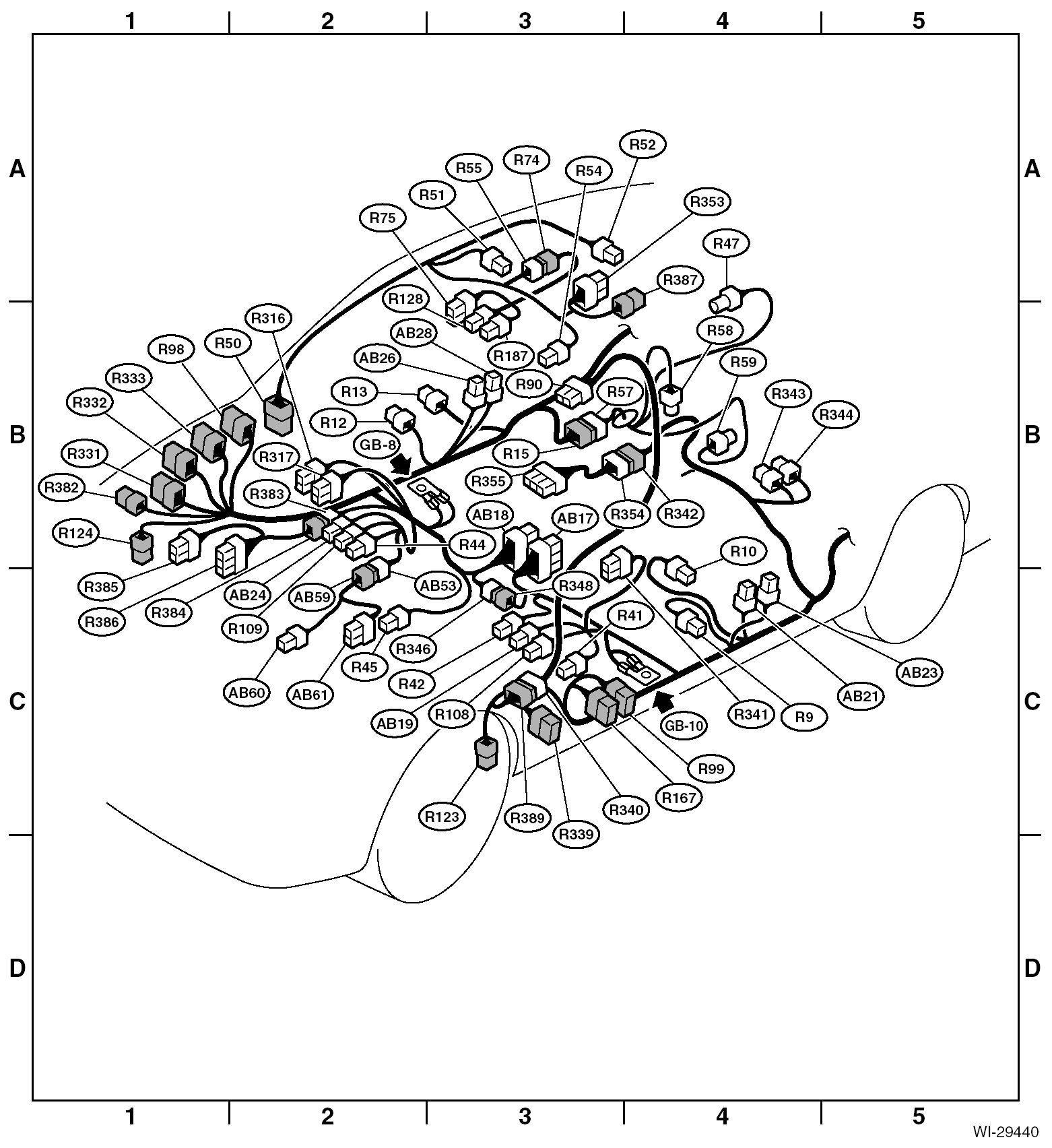

Rear Wiring Harness

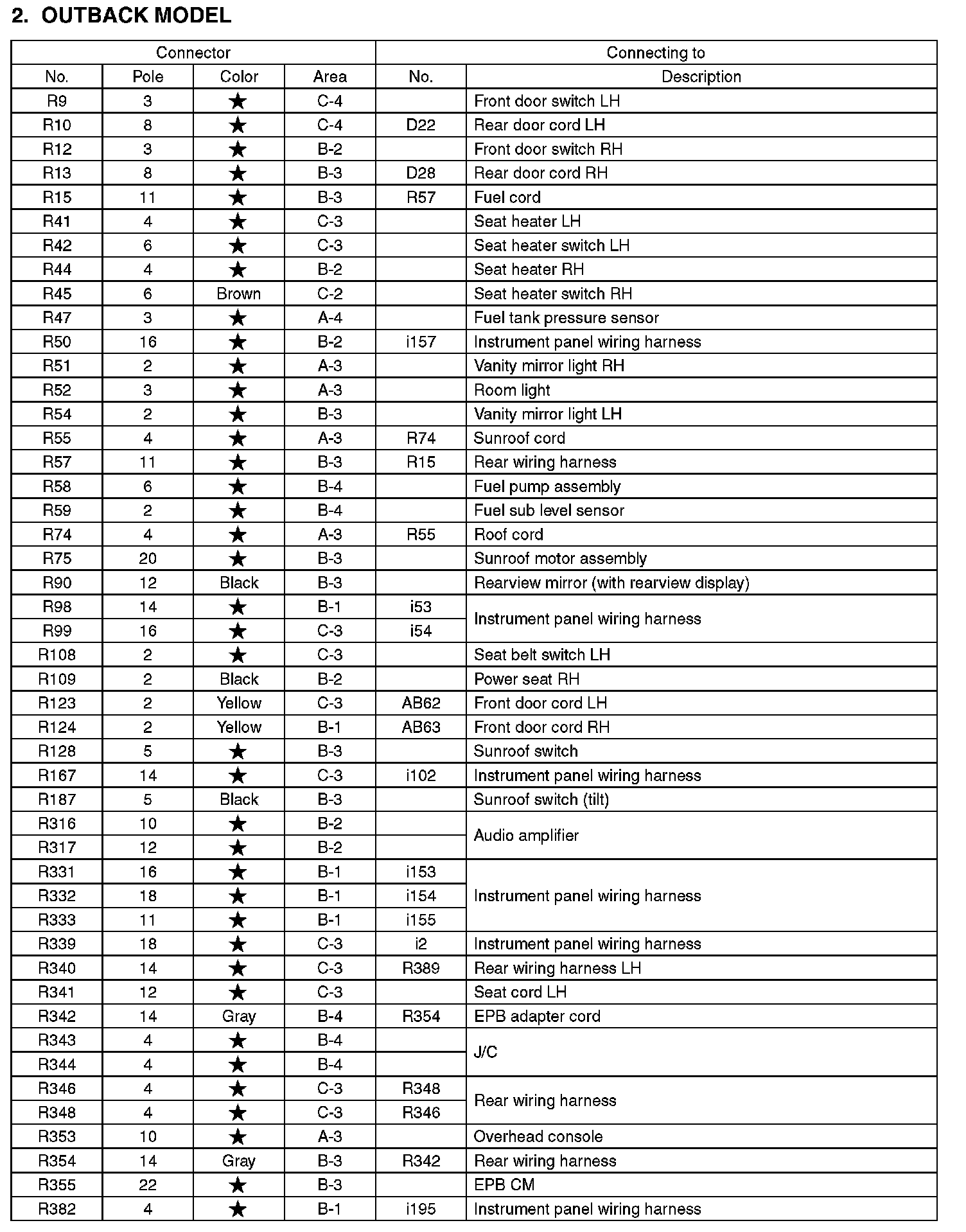

OUTBACK MODEL
