Home >> Subaru >> 2011 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> F106-F135

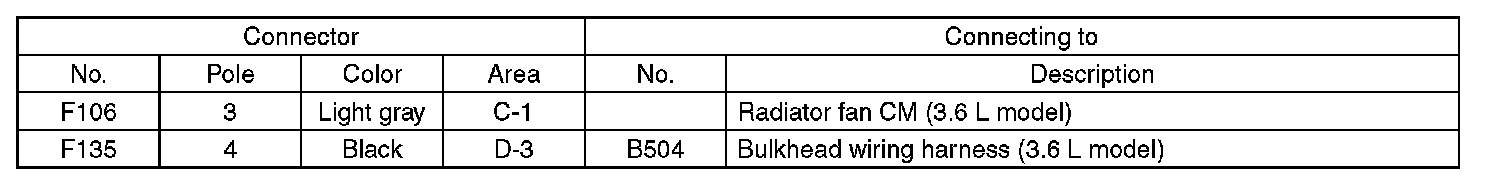

F106-F135

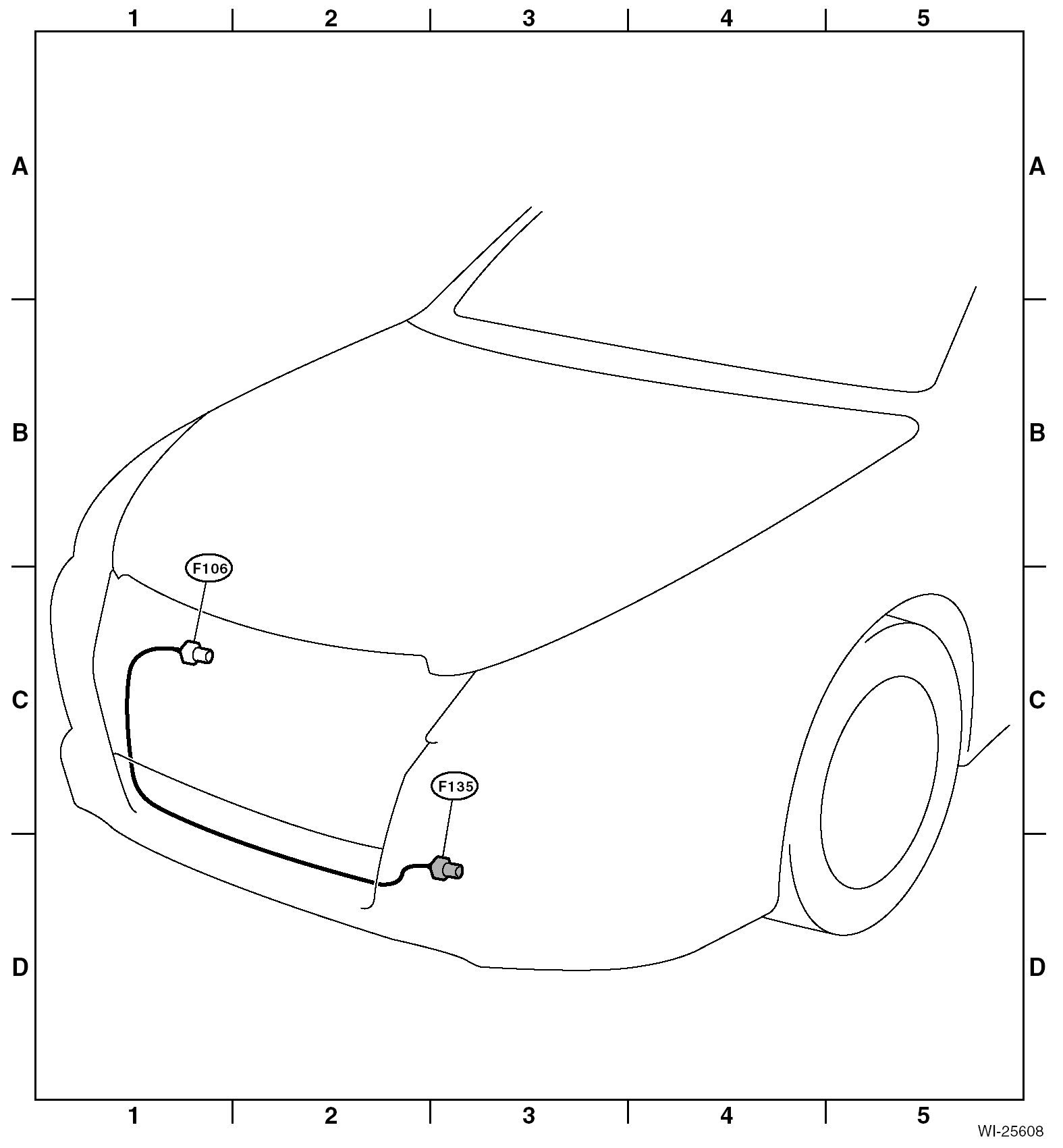

Front Wiring Harness
