Blower Motor: Testing and Inspection
Blower MotorINSPECTION
1. Disconnect the blower motor connector.

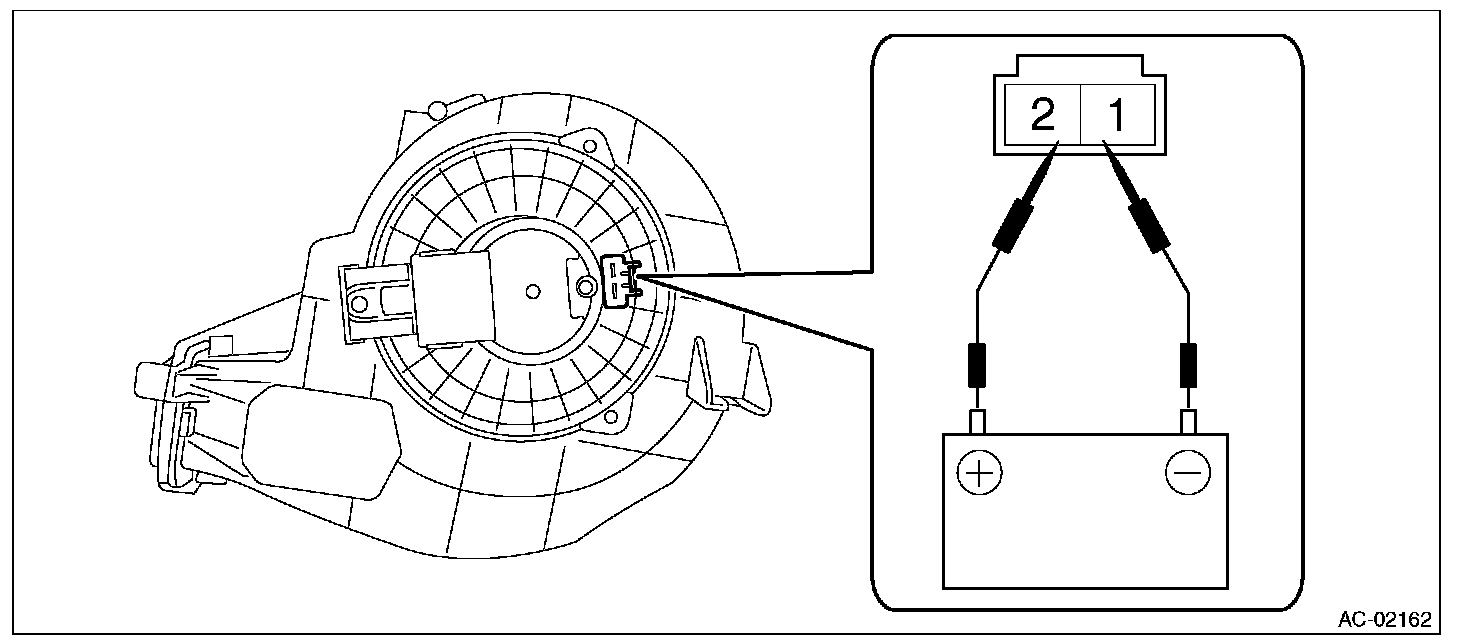

2. Apply battery voltage between the blower motor terminals.
1. Connect the positive (+) cable to the No. 2 terminal.
2. Connect the negative (-) cable to the No. 1 terminal and check that the blower motor rotates normally.
3. If the blower motor does not operate normally, replace the blower motor.
