Differential Assembly
>>
Rear Differential (VA2-Type)
Rear Differential (VA2-Type)

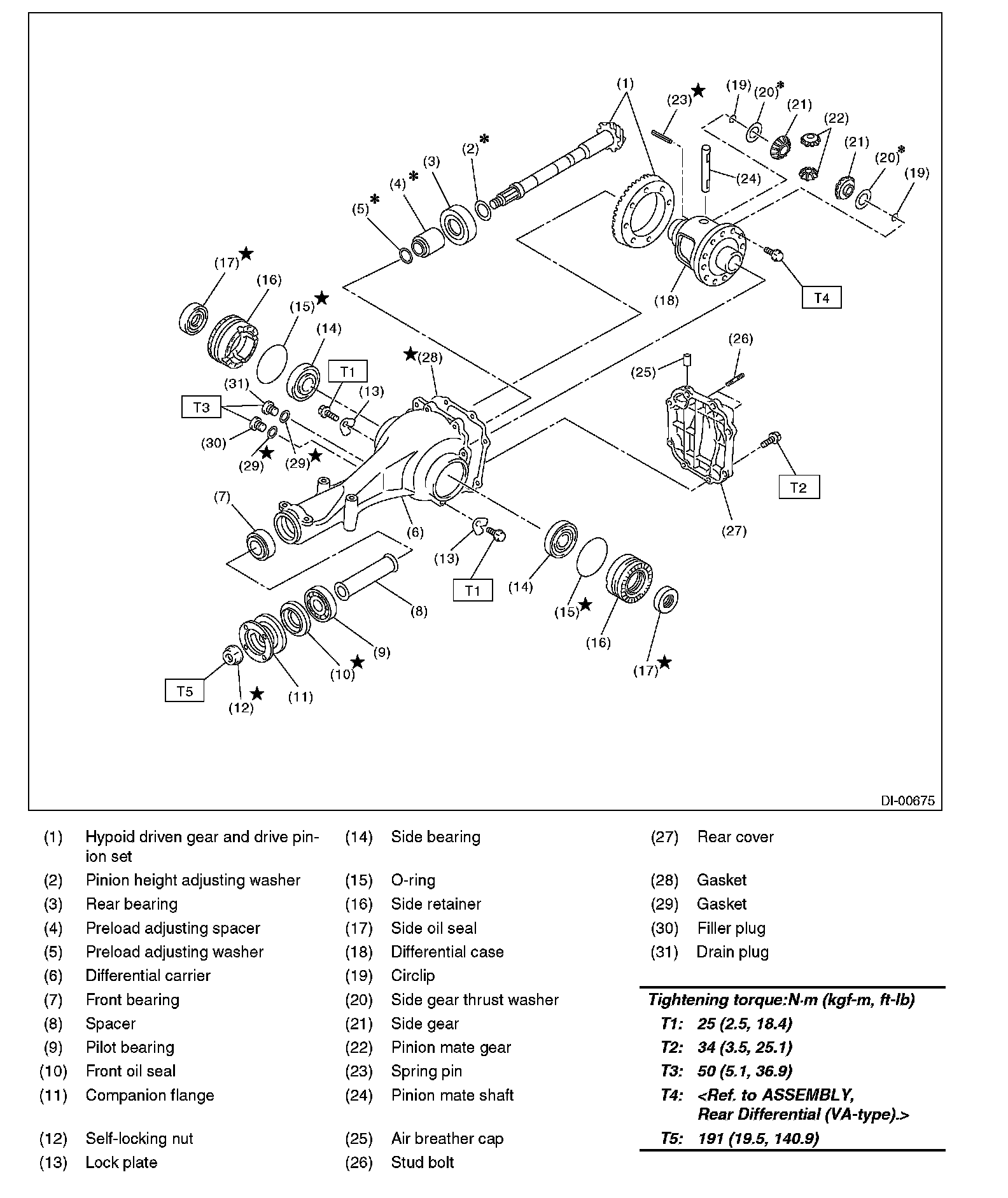

REAR DIFFERENTIAL (VA2-TYPE)
