Tightening Torque

Cylinder head Specifications

Camshaft bearing cap Specifications

Main bearing cap Specifications

Rod cap 60 N�m (6.1 kgf-m, 44.3 ft-lb)

Crank pulley 195 N�m (19.9 kgf-m, 143.8 ft-lb)

Flex plate 90 N�m (9.2 kgf-m, 66.4 ft-lb)

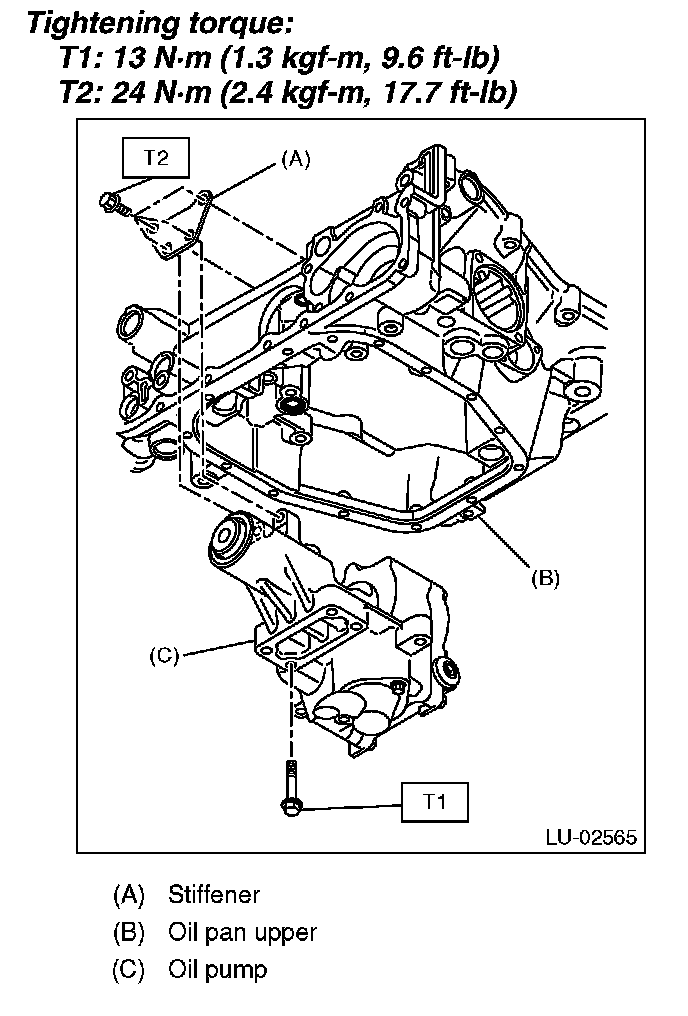

Oil pump





Water Pump
