Timing Component Alignment Marks: Locations

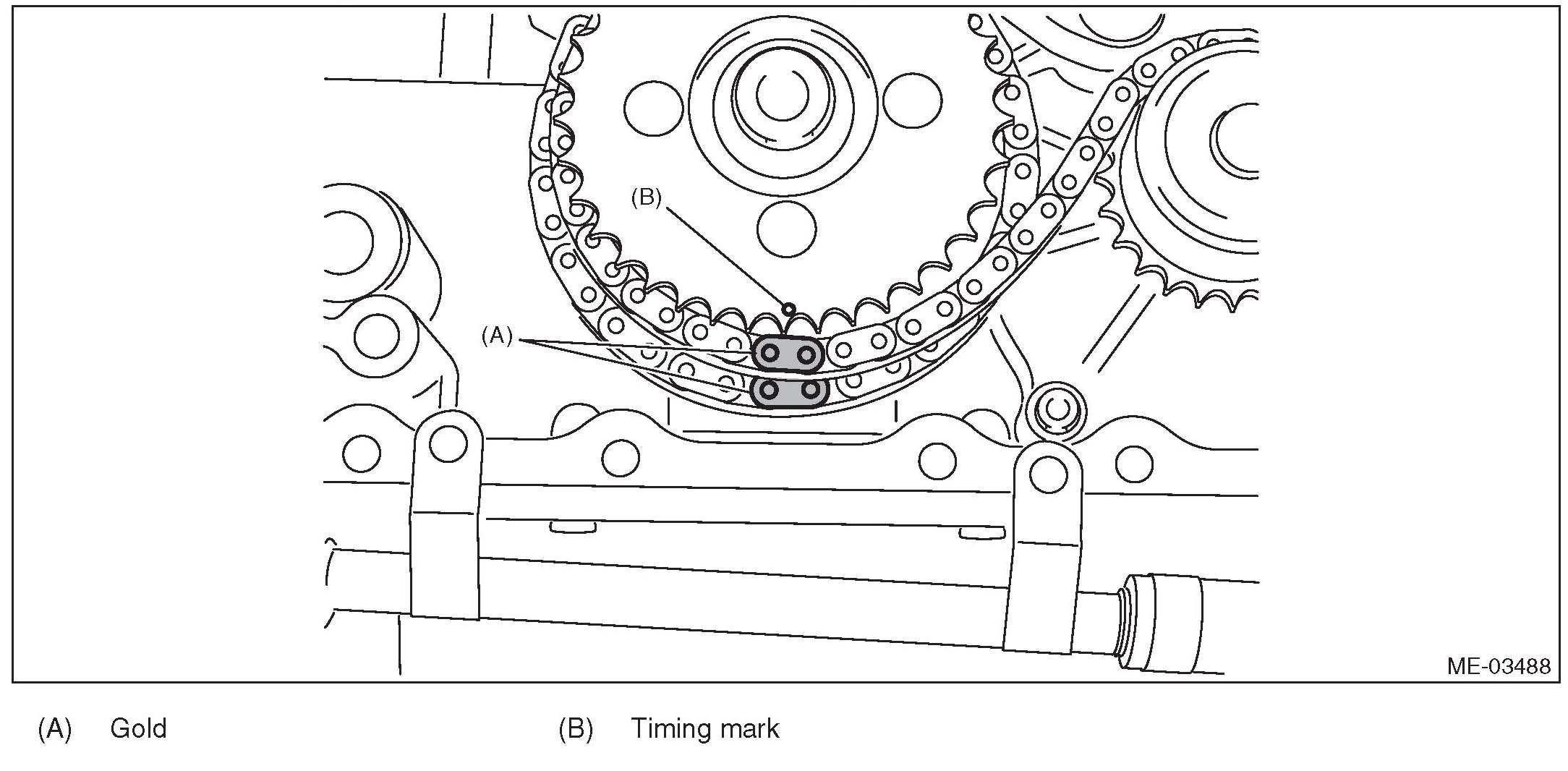

Crank sprocket

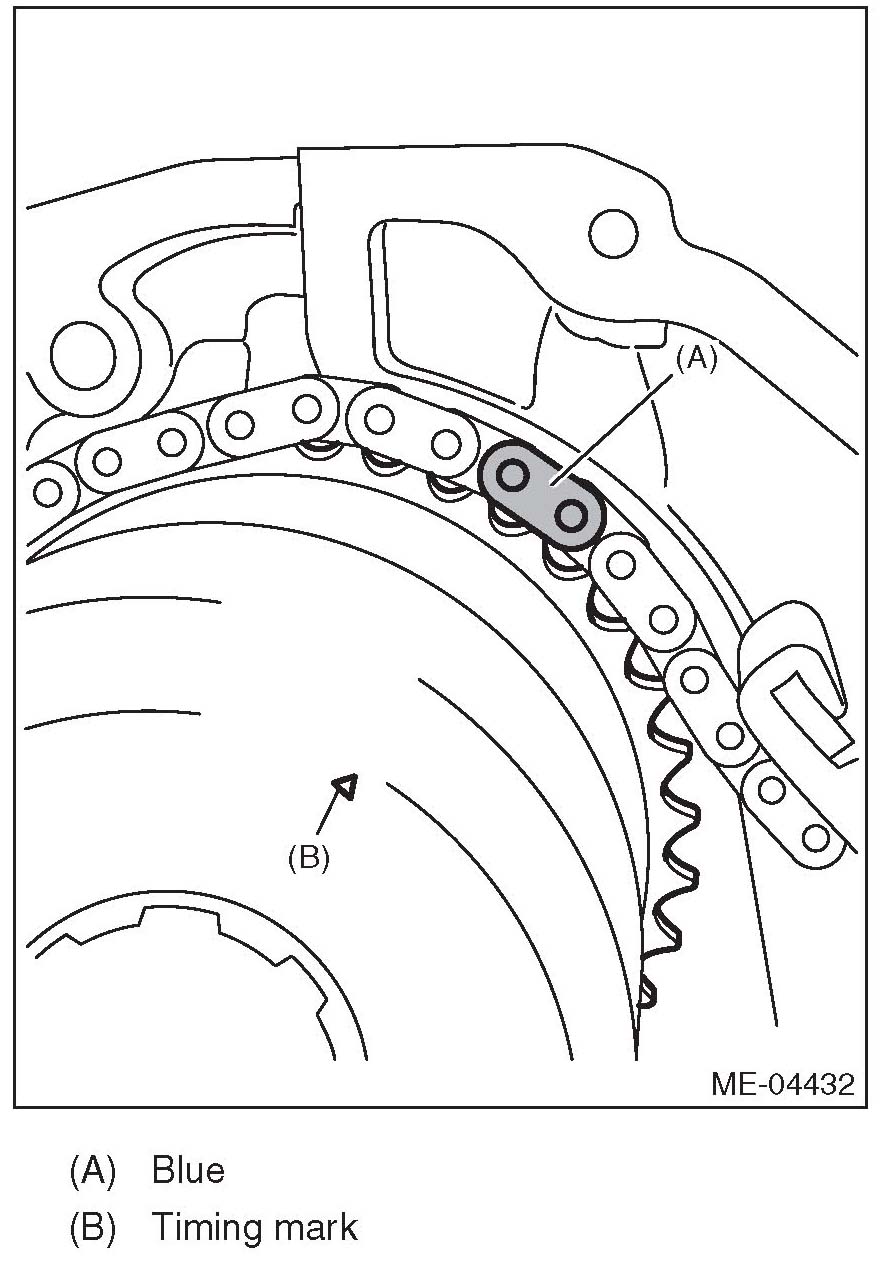

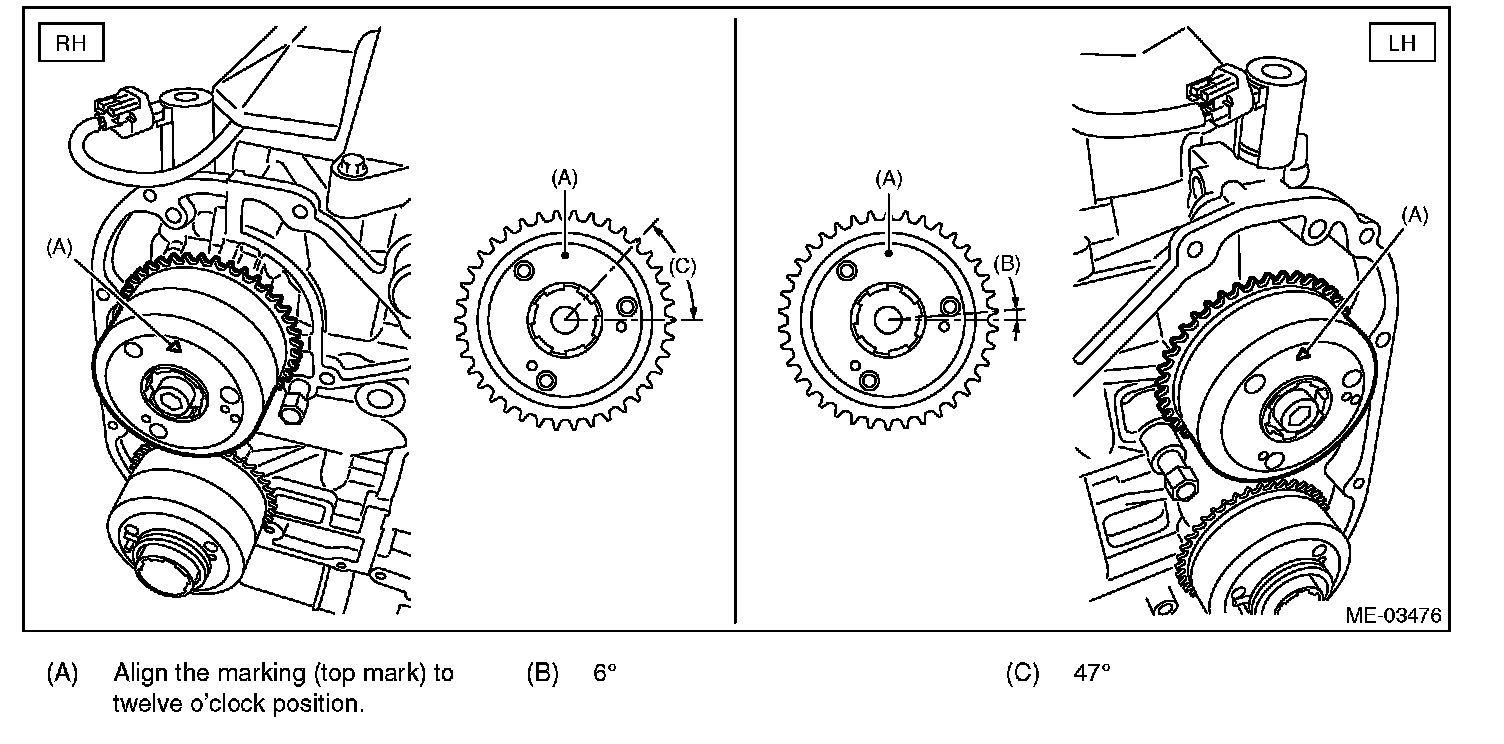

Intake cam sprocket (LH)

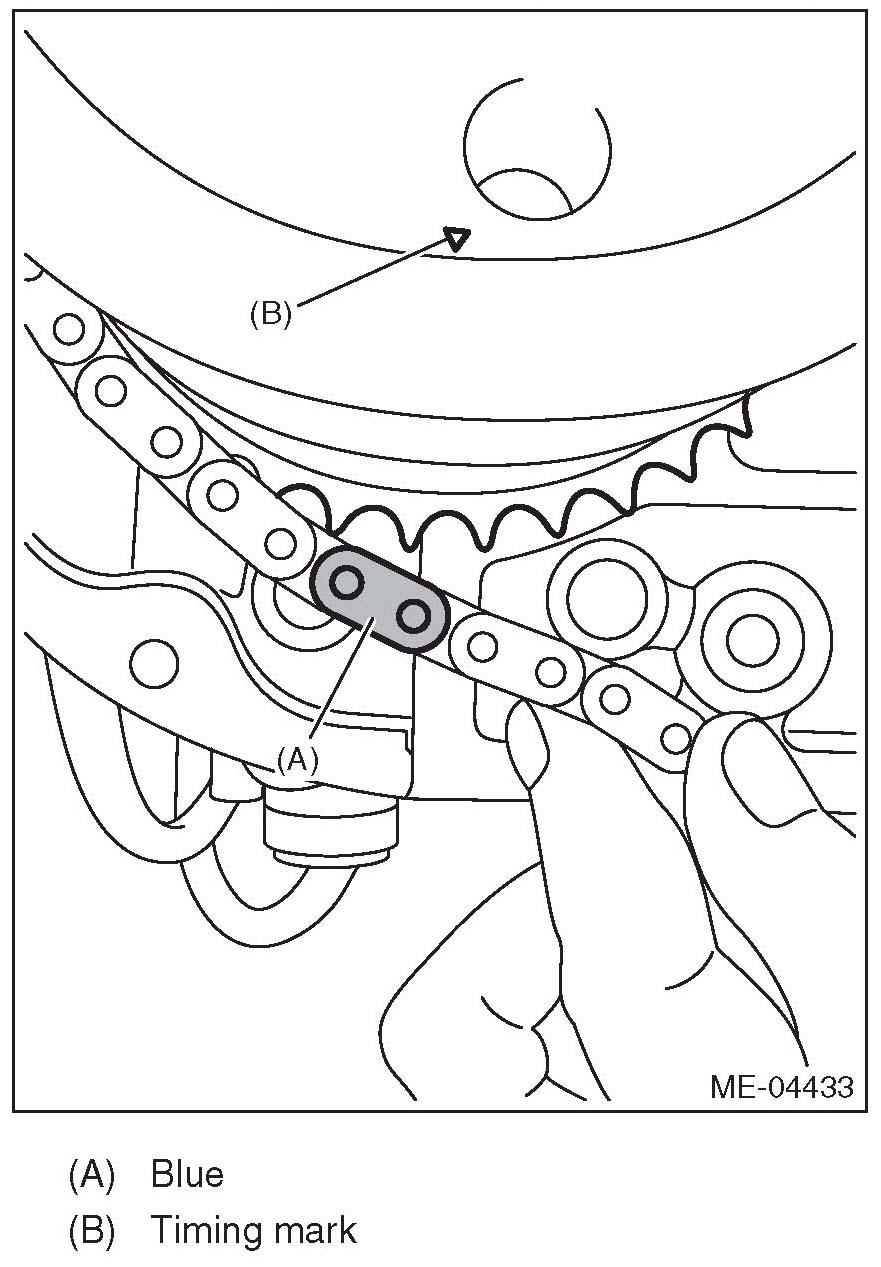

Exhaust cam sprocket (LH)





Idler sprocket to the timing chain mark (gold)

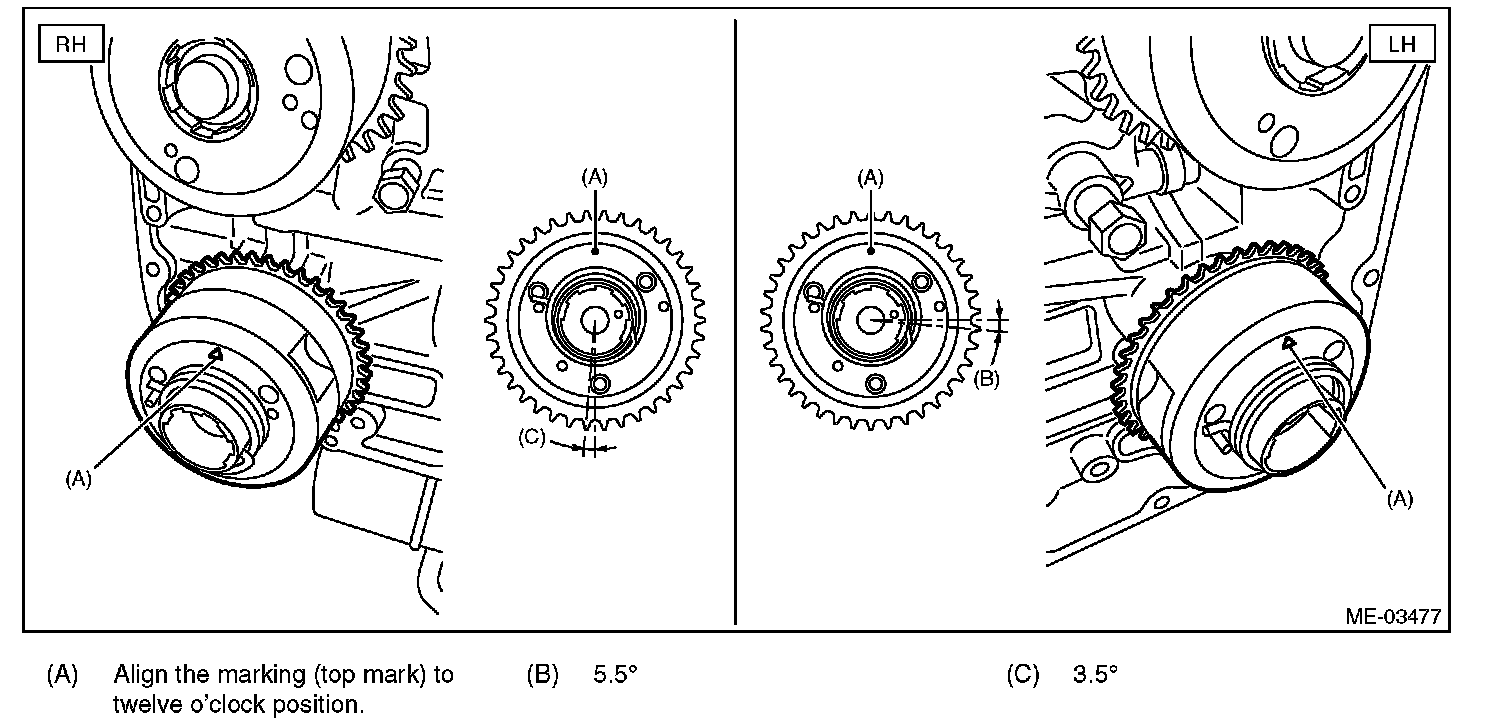

Intake cam sprocket (RH)





Exhaust cam sprocket (RH)

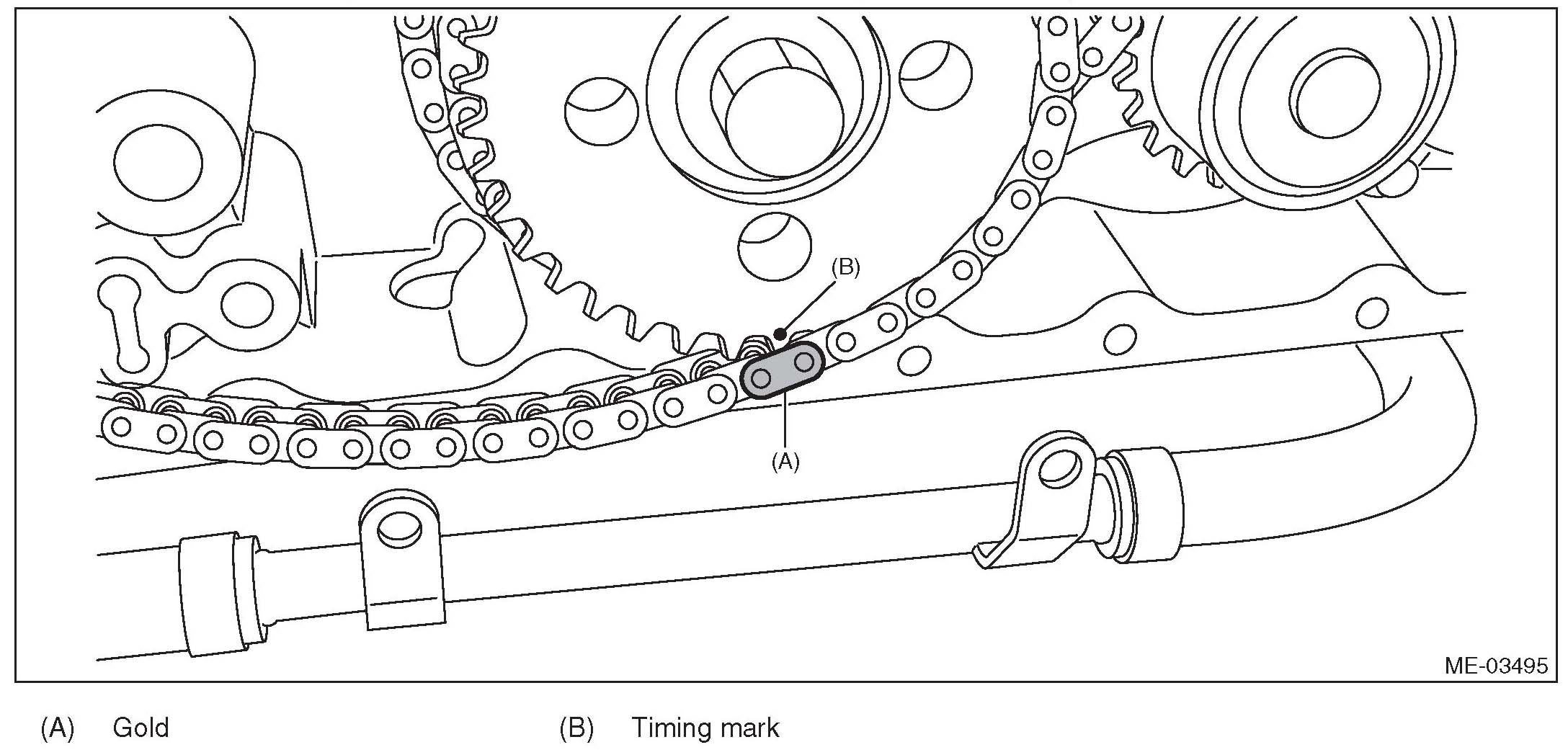

Idler sprocket to the timing chain mark (gold)
