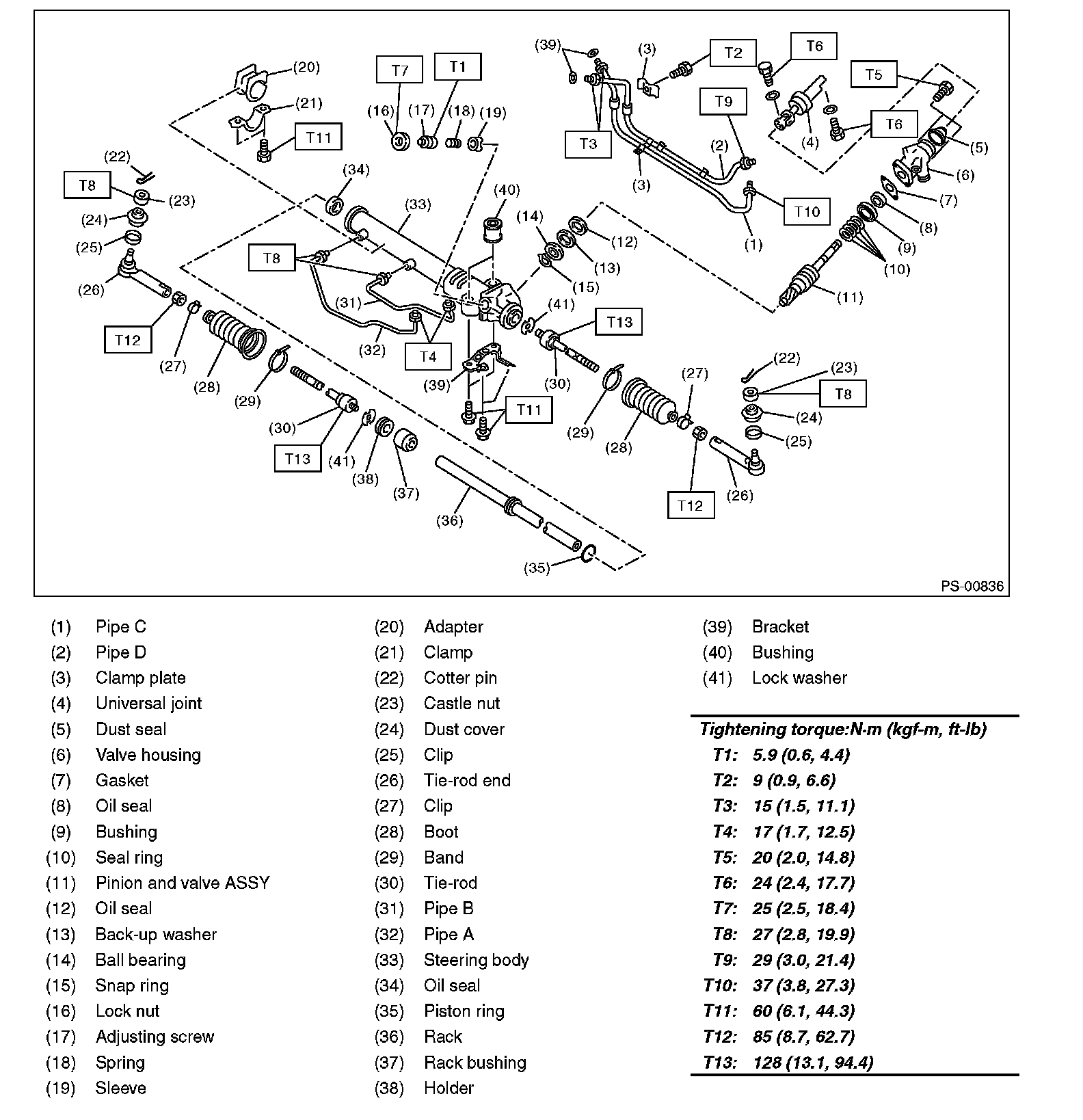

Steering Gear
Steering Gear
General Description
POWER ASSISTED SYSTEM (
POWER STEERING
)

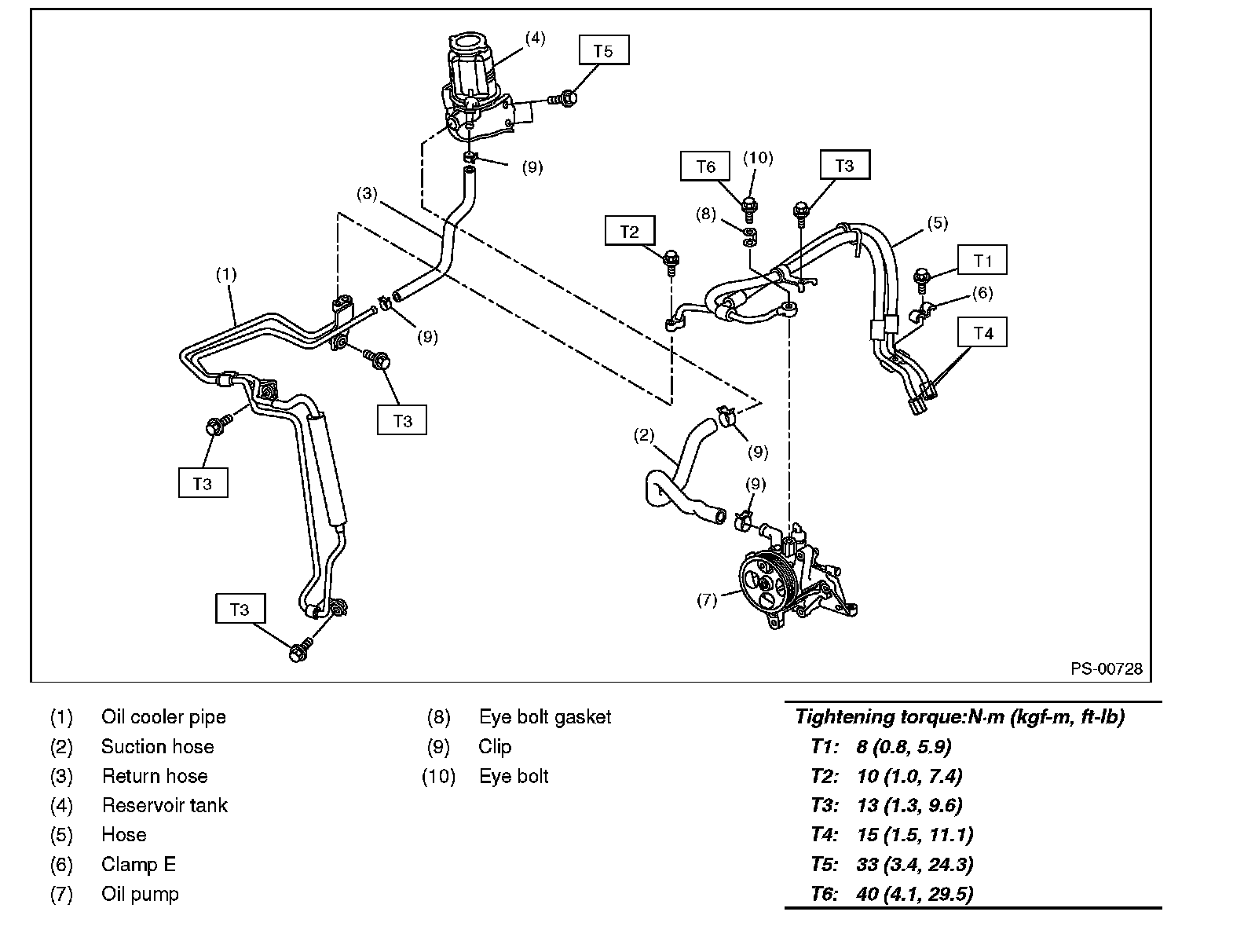

POWER ASSISTED SYSTEM
^
Hose and tank
^
Gearbox
